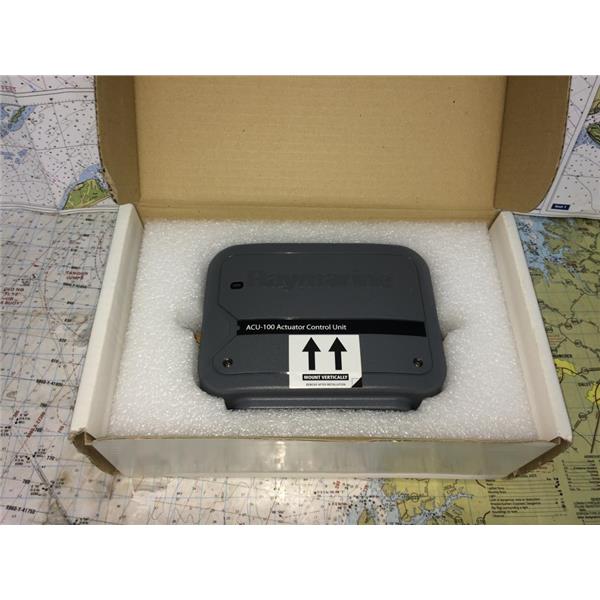

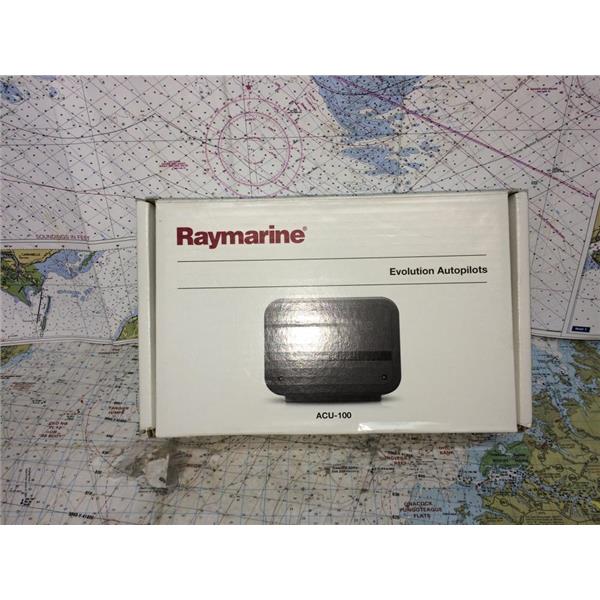

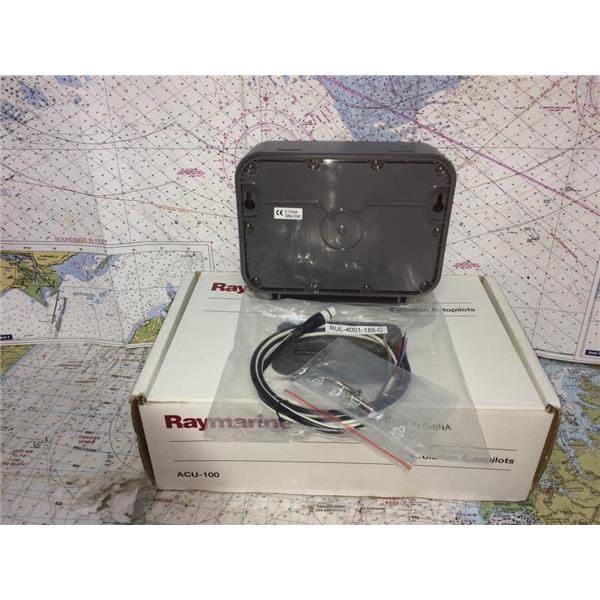

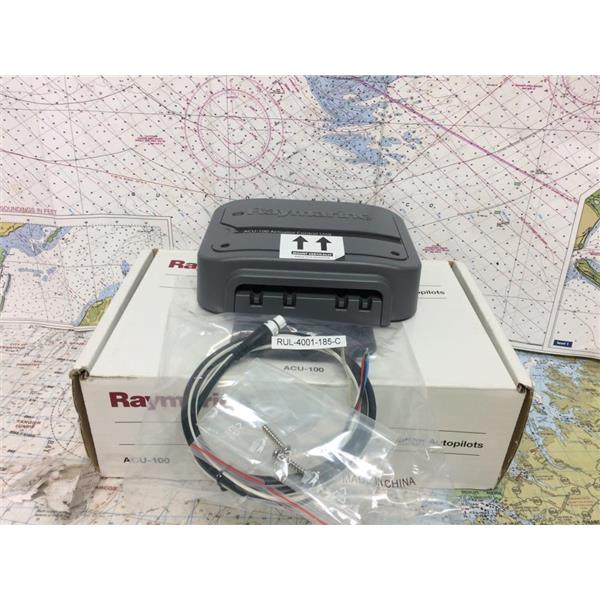

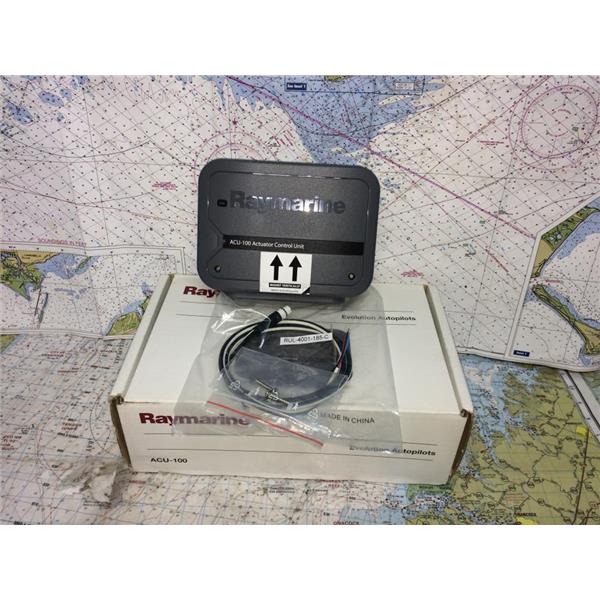

Boaters' Resale Shop of TX 2309 0751.04 RAYMARINE ACU-100 ACUATOR CONTROL UNIT E70098 * SEE ALL 5 PHOTOS * SOLD AS PICTURED * ITEM WAS PRE-OWNED, IN ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED FURTHER
Description:
Specifically designed to complement Raymarine's unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.
Features:
Designed to complement Raymarine's unique wheel-drive and tiller-drive applications
Provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor
Fully sealed so unit may be mounted above decks on boats where space is limited
Connections: Rudder reference sensor, power, drive motor, ground
Specifications:
Supported drives: Wheel, tiller and 0.5 liter hydraulic
Drive current output: Maximum continuous 7 A at supply voltage
No drive clutch connection
Nominal supply voltage: 12V DC
Operating voltage range 10.8V DC to 15.6V DC
Power consumption (standby)
Main power supply: 300 mA (12V DC)
No power supply to SeaTalk ng
Description:
Specifically designed to complement Raymarine's unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.
Features:
Designed to complement Raymarine's unique wheel-drive and tiller-drive applications
Provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor
Fully sealed so unit may be mounted above decks on boats where space is limited
Connections: Rudder reference sensor, power, drive motor, ground
Specifications:
Supported drives: Wheel, tiller and 0.5 liter hydraulic
Drive current output: Maximum continuous 7 A at supply voltage
No drive clutch connection
Nominal supply voltage: 12V DC
Operating voltage range 10.8V DC to 15.6V DC
Power consumption (standby)
Main power supply: 300 mA (12V DC)
No power supply to SeaTalk ng
Specifications
Condition | New other (see details) |
---|---|
Brand | RAYMARINE |
Manufacturer Part Number | E70098 |
Condition Description | SEE ALL 5 PHOTOS * SOLD AS PICTURED * ITEM WAS PRE-OWNED, IN ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED BUT HAS NOT BEEN TESTED |
