Boaters' Resale Shop of TX 2311 5151.32 HARKEN MKIII FURLER HALYARD TOP SWIVEL

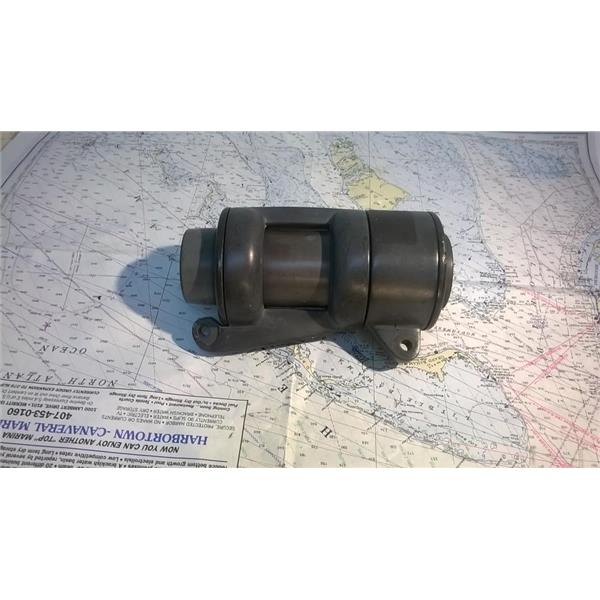

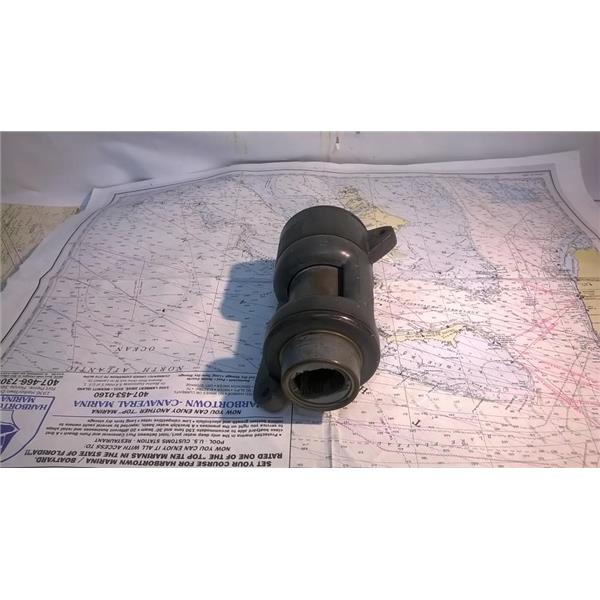

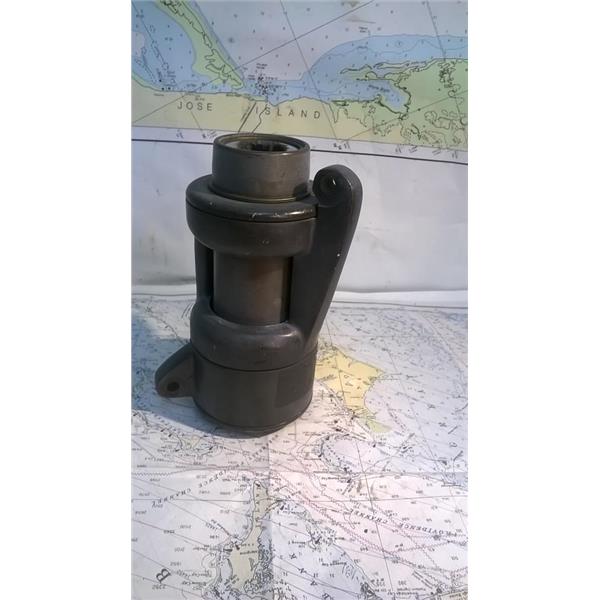

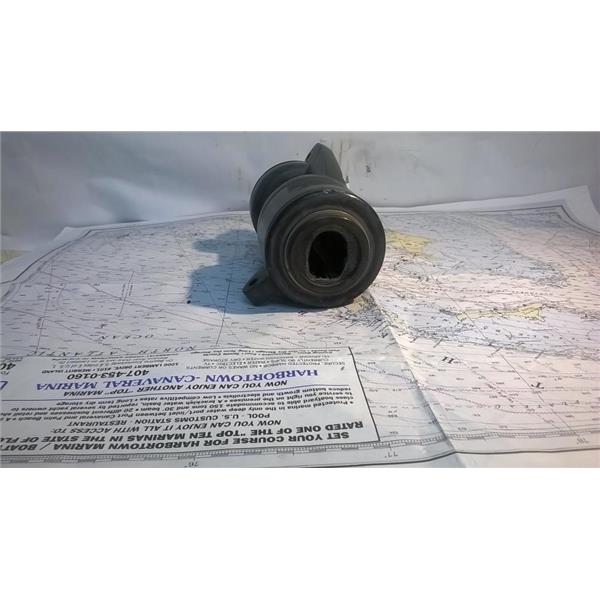

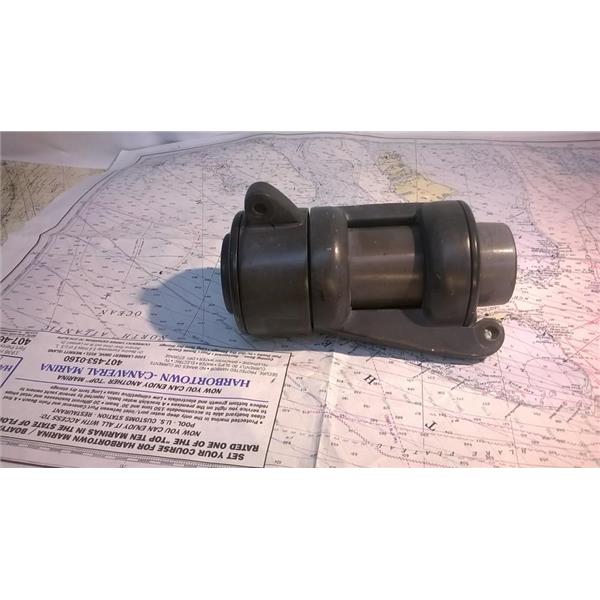

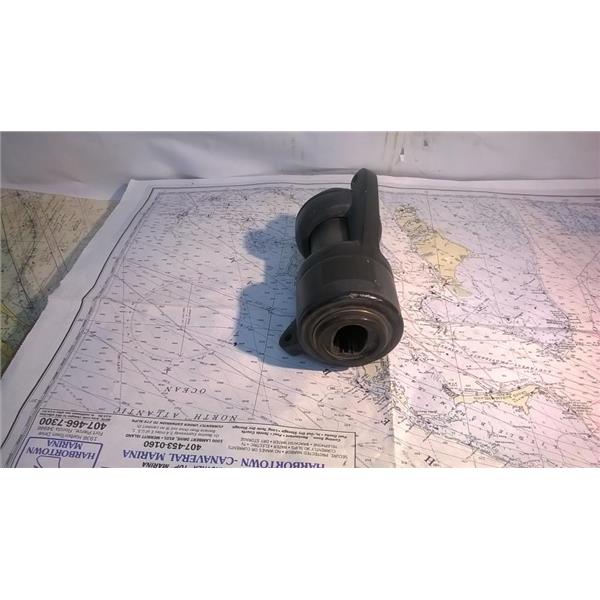

Boaters' Resale Shop of TX 2311 5151.32 HARKEN MKIII FURLER HALYARD 6.25" TOP SWIVEL ONLY * APPROX. OVERALL LENGTH: 6.25" *  APPROX. INSIDE DIMENSIONS: 7/8" W x 1-1/8" L * SHACKLES &  PINS NOT INCLUDED * SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PRE-OWNED, USED, NO SHACKLES OR PINS INCLUDED BUT UNIT IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER

Harken had produced several of the MKIII Units in more than just one size
If you are wondering what is on your boat use this guide.

IDENTIFYING UNIT SIZE: MKI, MKII, MKIII, 00AL
* 1. Tack attachment is not on an independent swivel and is riveted to torque tube.
* 2. Measurement across top is 5 3/4" (146 mm).MKI, MKII, MKIII, Unit 0 1. Tack is on independent swivel 2.   Measurement across top is 5 13/16" (147 mm)
* 3. Clevis pin diameter: 5/16" (8 mm); 3/8" (9.5 mm); 7/16" (11.1 mm).
ROLL PIN, MKI, MKII, MKIII Unit 1
* 1. Measurement across top of drum is 7/16" (188 mm).
* 2. Clevis pin diameter is 1/2 " (12.7 mm).
* 3. Roll pin and MKI models: Use series number for identification.
ROLL PIN, MKI, MKII, MKIII Unit 2
* 1. Measurement across top of drum is 9 1/2" (241 mm).
* 2. Clevis pin diameter is 5/8" (15.9 mm).
* 3. Roll pin and MKI models: Use series number for identification.
MKI, MKII, MKIII Unit 3
* 1. Measurement across top of drum is 12" (305 mm).
* 2. Clevis pin diameter is 3/4"(19.1 mm); 7/8" (22.2 mm).
* 3. Torque tube length is 13" (330 mm).
MKI, MKII, MKIII Unit 3.25
* 1. Measurement across top of drum is 12" (305 mm).
* 2. Clevis pin diameter is 7/8" (22.2 mm); 1" (25.4 mm).
* 3.Torque Tube length is 15" (381 mm). Enjoy your repair.
