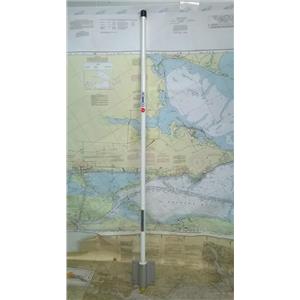

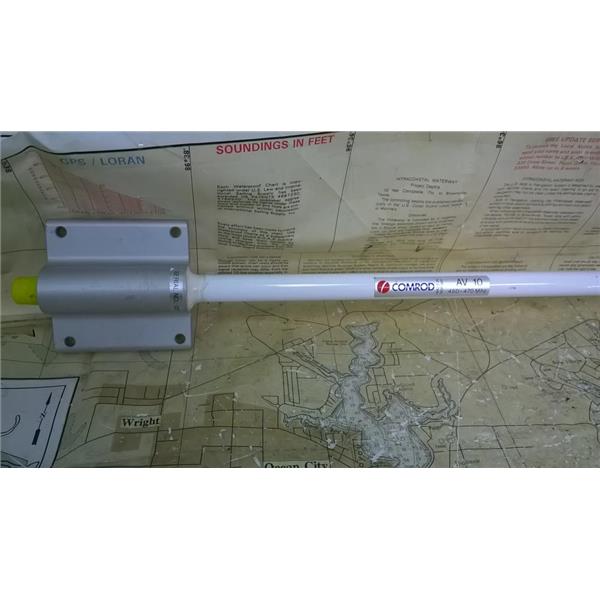

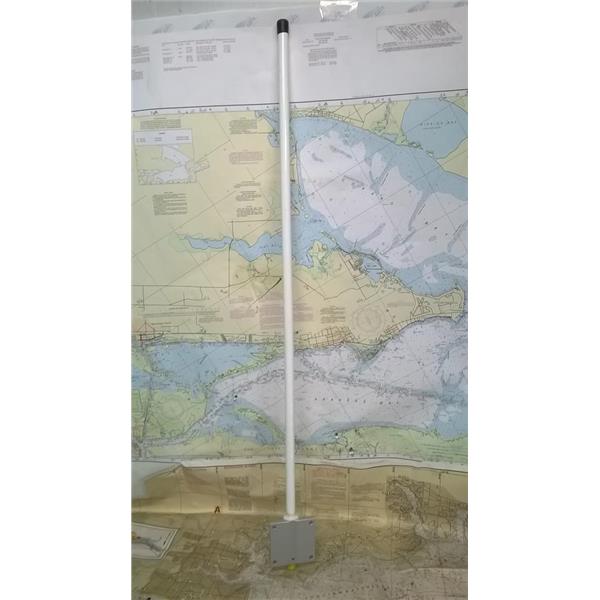

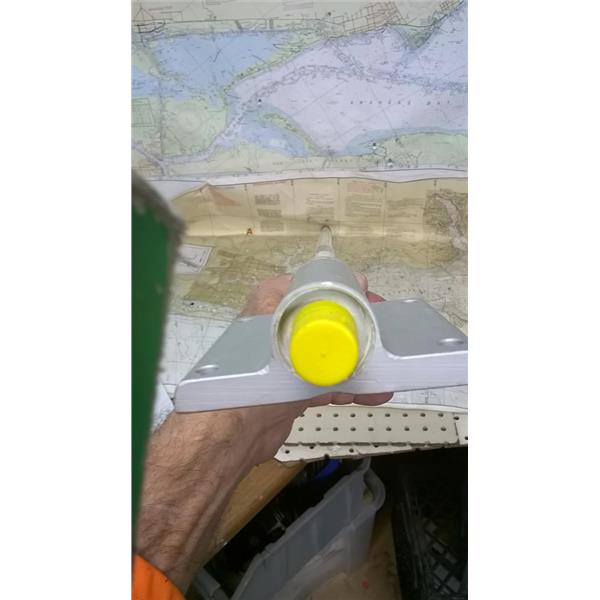

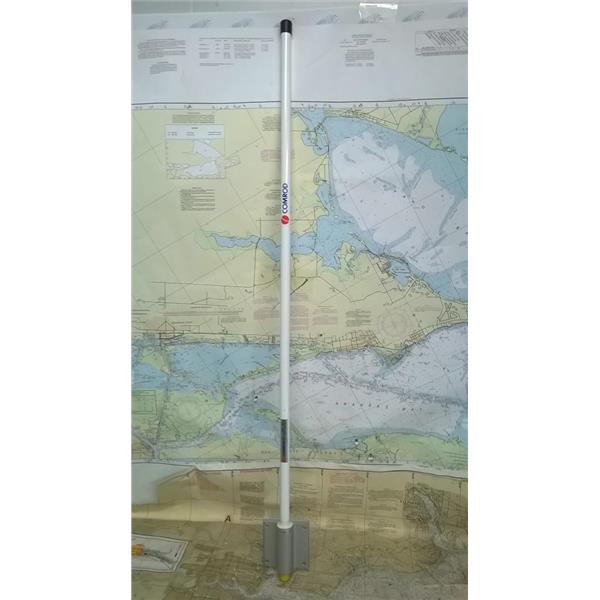

Boaters' Resale Shop of TX 2401 0441.02 COMROD AV-10 MARINE UHF 450-470 MHz 3' ANTENNA with 3.5" x 3.5" MOUNT ONLY * CABLE & MOUNTING HARDWARE NOT INCLUDED * SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED
AV10 Marine UHF Antenna:
Application:
* AV10 is a high quality antenna designed to operate with UHF radios.
* It is especially suited for marine use, as a base station antenna and for all applications where quality is essential.
Electrical specifications
Frequency range: 450-470 MHz
Nominal impedance: 50 ohm
Power rating: 50 W
VSWR: 1.5
Gain: 5 dbi
Pattern Horizontal plane: Omnidirectional
Vertical 3db-width: 360
Polarization Vertical

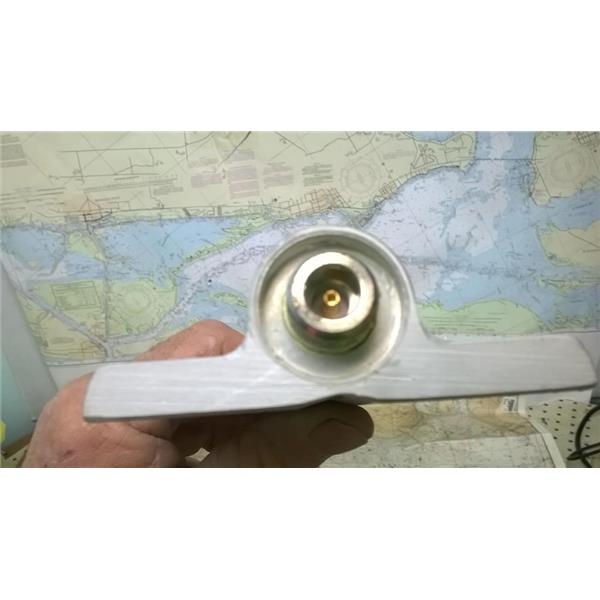

Connector N female is standard
DC-grounded Y
Mechanical specifications
Design: Centre-fed collinear dipole array. Radiating elements completely enclosed in polyurethane foam within a fiberglass tube.

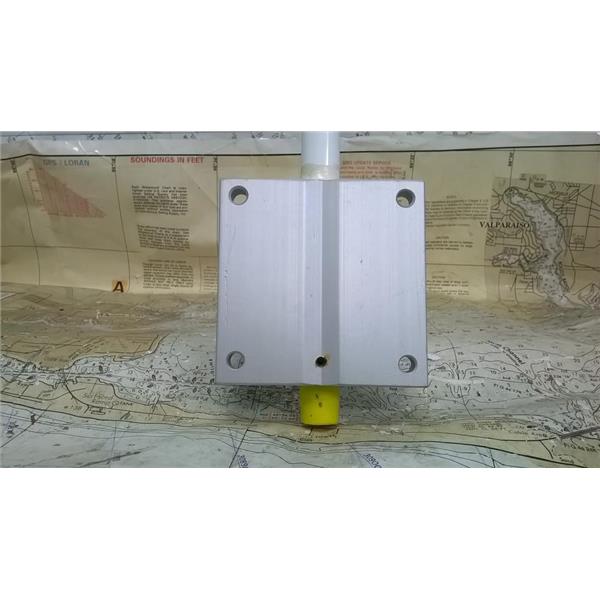

Mounting bracket in aluminium.
Height: 1m (3 ft)
Weight: 1 kg
Wind rating: 55 m/s = 125 mph
Water Proofing IP67
Finish: Polyurethane lacquer, white
Temperature range: -55 0C, +55 0C; -67 0F, +131 0F
AV10 Marine UHF Antenna:
Application:
* AV10 is a high quality antenna designed to operate with UHF radios.
* It is especially suited for marine use, as a base station antenna and for all applications where quality is essential.
Electrical specifications
Frequency range: 450-470 MHz
Nominal impedance: 50 ohm
Power rating: 50 W
VSWR: 1.5
Gain: 5 dbi
Pattern Horizontal plane: Omnidirectional
Vertical 3db-width: 360
Polarization Vertical
Connector N female is standard
DC-grounded Y
Mechanical specifications
Design: Centre-fed collinear dipole array. Radiating elements completely enclosed in polyurethane foam within a fiberglass tube.
Mounting bracket in aluminium.
Height: 1m (3 ft)
Weight: 1 kg
Wind rating: 55 m/s = 125 mph
Water Proofing IP67
Finish: Polyurethane lacquer, white
Temperature range: -55 0C, +55 0C; -67 0F, +131 0F
Specifications
Condition | Used |
---|---|
Brand | COMROD |
Manufacturer Part Number | AV 10 |
Condition Description | CABLE & MOUNTING HARDWARE NOT INCLUDED * SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED |
