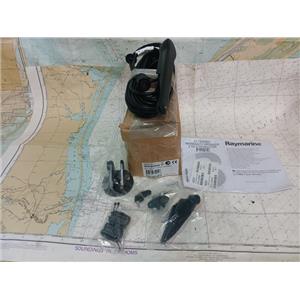

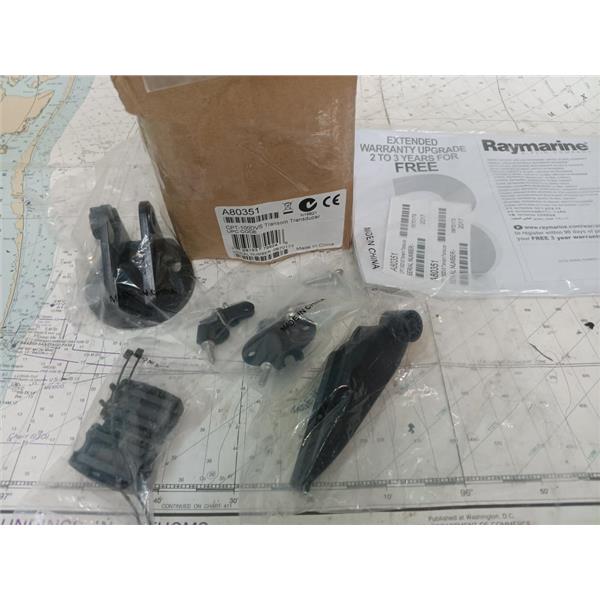

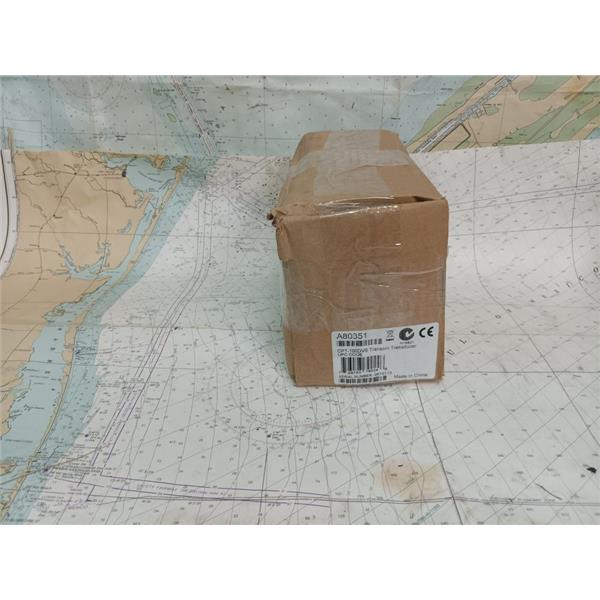

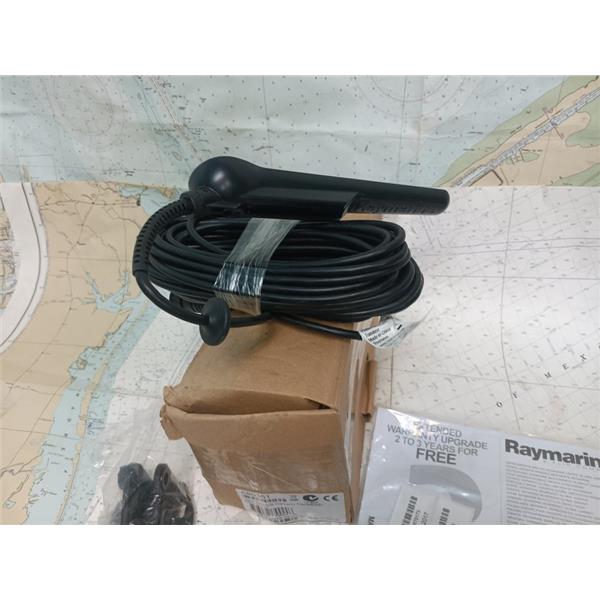

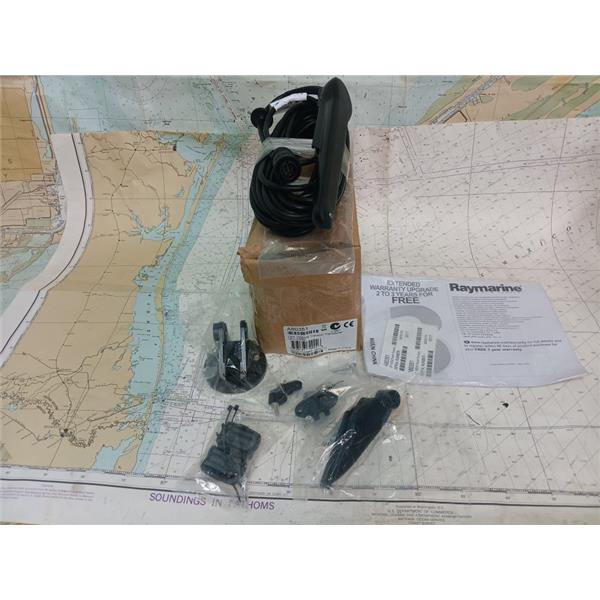

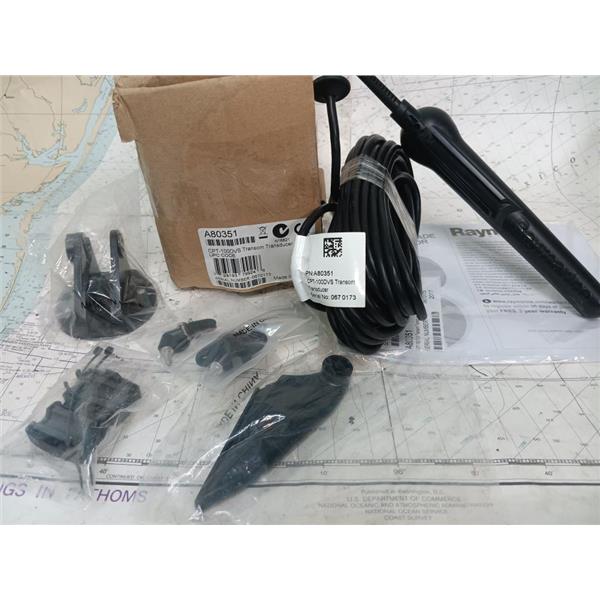

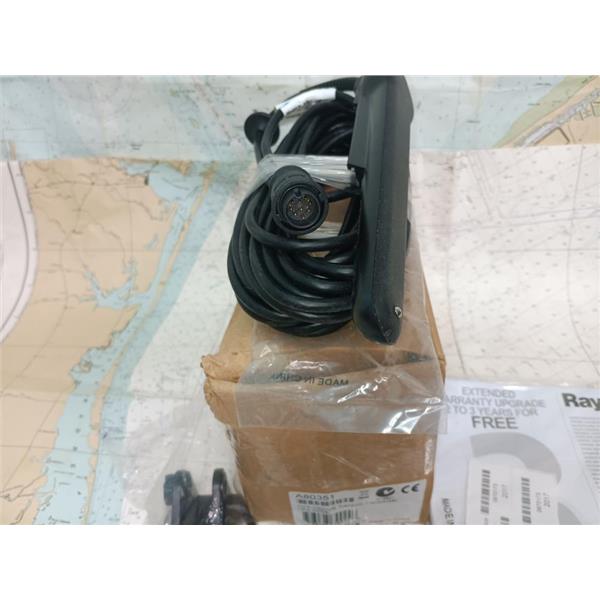

Boaters' Resale Shop of TX 2407 2174.07 RAYMARINE A80351 TRANSOM TRANSDUCER KIT * SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED
Raymarine A80351 CPT-100DVS Transom Mount Chirp Transducer
Compatible with a68, a78, a98 & a128 multifunction displays.
Max Depth: (Ft): DV=600 FF=900
Beam Width: (L/H): 25°/60°
Records: Depth / Temperature
Approved Hull Material: Fiberglass / Wood / Metal
Deadrise: 0-90° Transom
Replaces: A80270
Products specifications
Waterproof
Frequency Sonar: 170 kHz - 230 kHzDownVision: 320 kHz - 380 kHz
Mount Type:Transom Mount
Beam:25 Degrees (Sonar)1.4 Degrees x 60 Degrees (DownVision)
Connection Interface: 7-Pin Connector
Deadrise Angle:0 Degree
Maximum Depth:600 Feet (DownVision)900 Feet (CHIRP Sonar)
SonarCHIRP SonarDownVision
Raymarine A80351 CPT-100DVS Transom Mount Chirp Transducer
Compatible with a68, a78, a98 & a128 multifunction displays.
Max Depth: (Ft): DV=600 FF=900
Beam Width: (L/H): 25°/60°
Records: Depth / Temperature
Approved Hull Material: Fiberglass / Wood / Metal
Deadrise: 0-90° Transom
Replaces: A80270
Products specifications
Waterproof
Frequency Sonar: 170 kHz - 230 kHzDownVision: 320 kHz - 380 kHz
Mount Type:Transom Mount
Beam:25 Degrees (Sonar)1.4 Degrees x 60 Degrees (DownVision)
Connection Interface: 7-Pin Connector
Deadrise Angle:0 Degree
Maximum Depth:600 Feet (DownVision)900 Feet (CHIRP Sonar)
SonarCHIRP SonarDownVision
Specifications
| Condition | New other (see details) |
|---|---|
| Brand | Raymarine |
| Manufacturer Part Number | A80351 |
| Condition Description | SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED |
