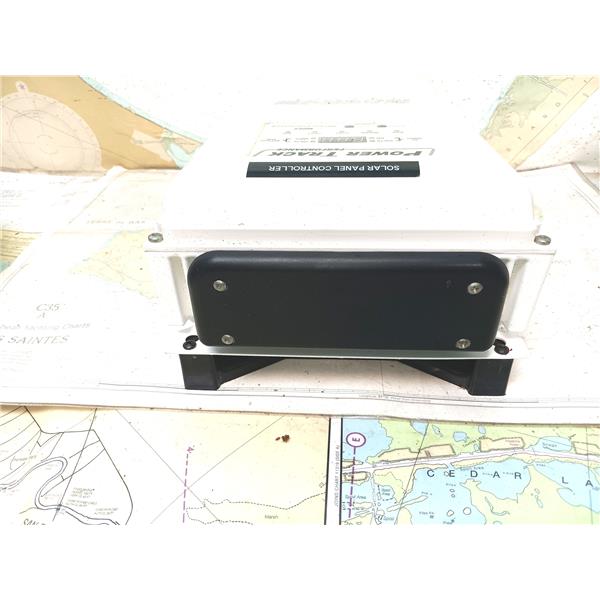

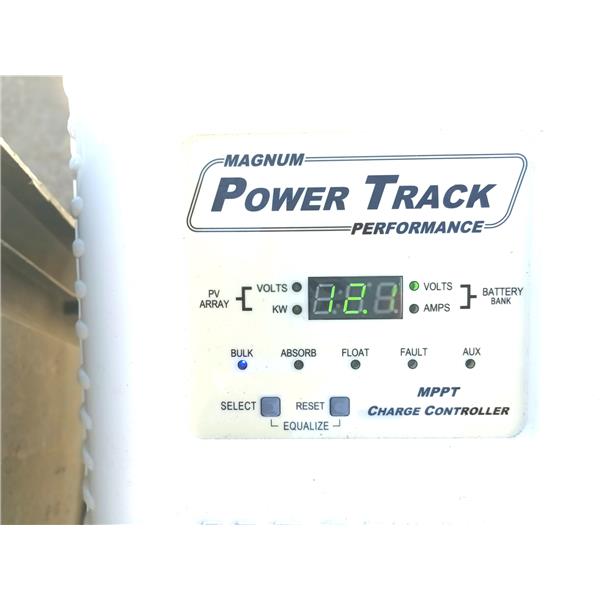

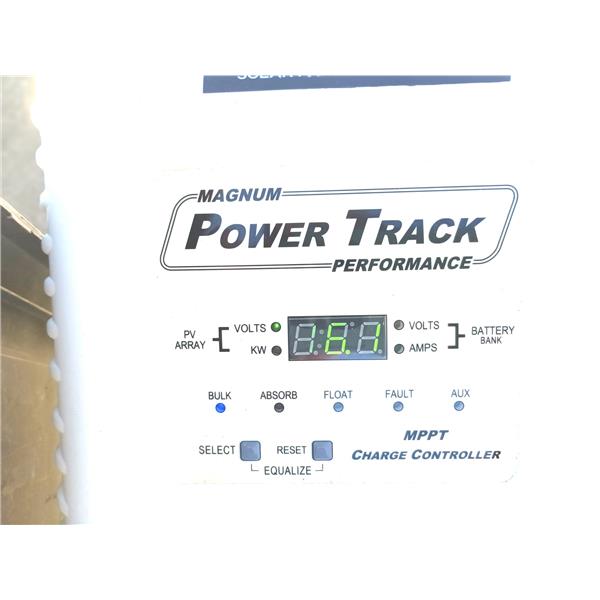

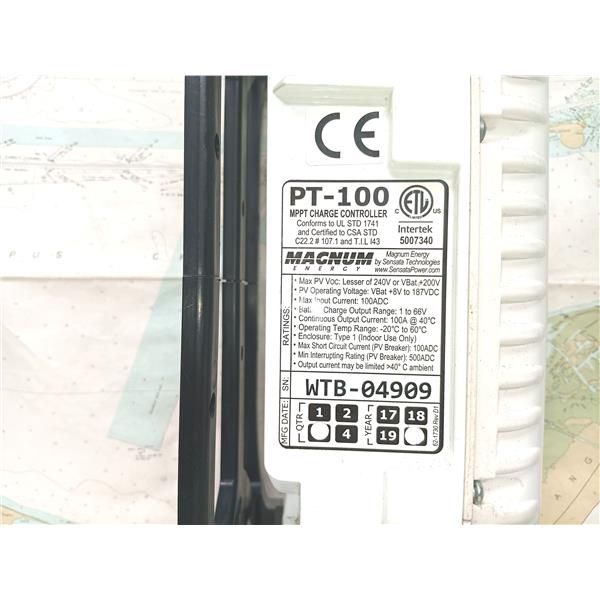

Boaters' Resale Shop of TX 2412 0554.01 MAGNUM MPPT CHARGE CONTROLLER PT-100 * SEE ALL 8 PHOTOS * SOLD IN CONDITION PICTURED * REMOTE & ROUTER NOT INCLUDED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, POWERS UP, DISPLAYS SOLAR PANEL INPUT VOLTAGE (16.1 VDC)AND CHARGE VOLTAGE OUTPUT (12.1 VDC)BUT HAS NOT BEEN TESTED FURTHER

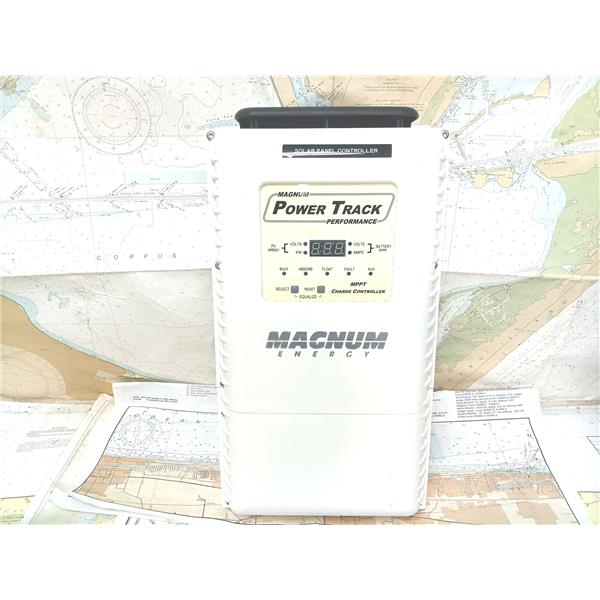

Magnum Energy PT-100 MPPT Charge Controller
PT-100 Maximize Energy Harvest and Improve Battery Life
The PT-100 is a Maximum Power Point Tracker (MPPT) charge controller designed to harvest the maximum available energy from the PV array and deliver it to the batteries.
The PT-100’s MPPT algorithm finds the maximum power point of the array and operates at this point while regulating the output current and battery voltage to fully charge the battery.
Specifications
Output Current: 100 amps
Battery Voltage: 12, 24, or 48 V
MPPT: Yes
Power Consumption: < 4 watts (fan off, display/LEDs off)
Maximum PV input voltage (any condition): 200 VDC + battery voltage or 240 VDC - whichever is lower
Maximum PV operating voltage: 187 VDC
Maximum PV array short circuit current: 100 ADC
Nominal battery voltage range:12, 24, or 48 VDC
Battery charger output voltage range: 10 to 66 VDC
Continuous charger output current: 100 ADC (from -20°C to +40°C) with proportional power reduction up to 60°C ambient
Maximum output power: 6600 watts
Efficiency: 99% typical
Charger regulation method:Automatic three-stage (bulk, absorption, float) charge with manual equalization
Battery temperature compensation With Battery Temperature Sensor (BTS) connected (battery temperature -20 °C to +55 °C)
Internal cooling
Using dual ball-bearing fans for long life
Overcurrent protection
With two overlapping circuits
Over-temperature protection
On transformer and MOSFETS
Operating temperature: -20° C to +60° C (-4° F to 140° F)
Nonoperating temperature: -40° C to +70° C (-40° F to 158° F)
Operating humidity: 0 to 95% RH non condensing

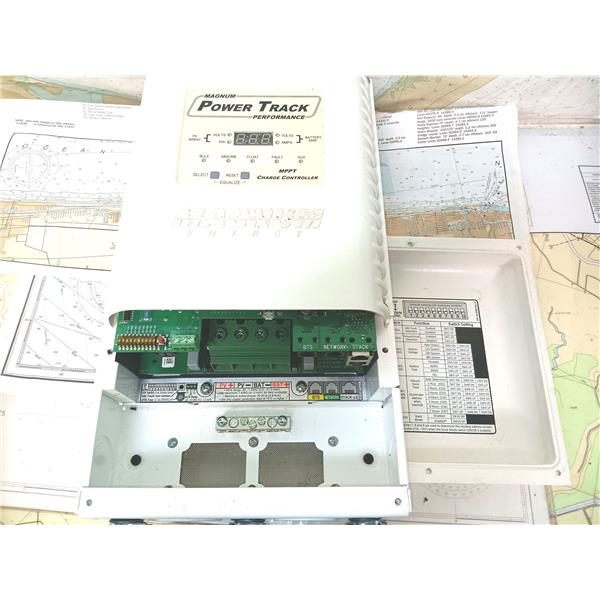

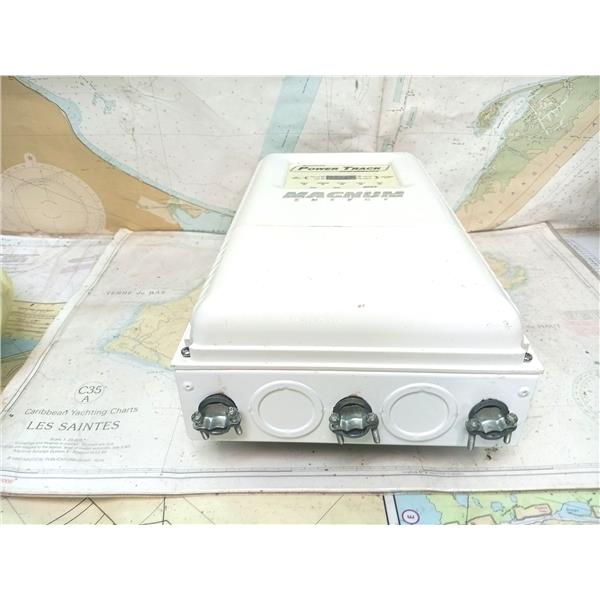

Enclosure type: Indoor, ventilated, with removable powder-coated conduit box
Unit dimensions (w x h x d): 8.5" x 15.5" x 4.0" (21.6 cm x 39.4 cm x 10.2 cm)
Shipping dimensions (w x h x d): 11.5” x 19.5” x 8.125” (29.2 cm x 49.5 cm x 20.6 cm)

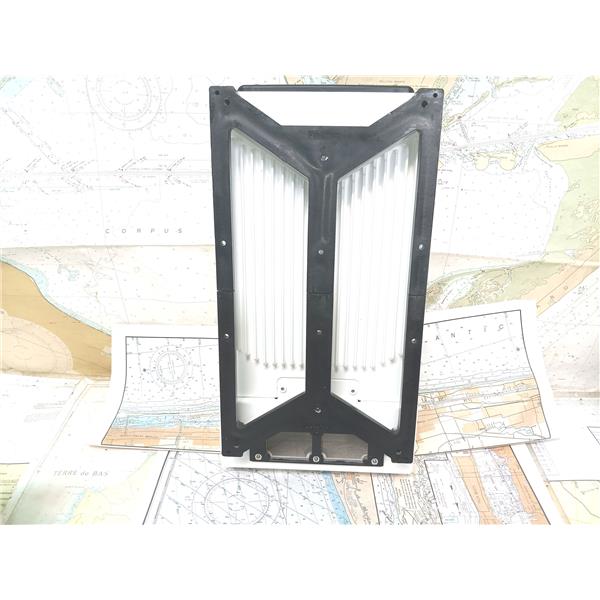

Mounting:Mounted on a vertical surface (wall) or installed on MP or MMP enclosure
Weight: 13.6 lb (6.2 kg)
Shipping weight: 18 lb (8.2 kg)
Max operating altitude: 15,000’ (4570 m)
Magnum Energy PT-100 MPPT Charge Controller
PT-100 Maximize Energy Harvest and Improve Battery Life
The PT-100 is a Maximum Power Point Tracker (MPPT) charge controller designed to harvest the maximum available energy from the PV array and deliver it to the batteries.
The PT-100’s MPPT algorithm finds the maximum power point of the array and operates at this point while regulating the output current and battery voltage to fully charge the battery.
Specifications
Output Current: 100 amps
Battery Voltage: 12, 24, or 48 V
MPPT: Yes
Power Consumption: < 4 watts (fan off, display/LEDs off)
Maximum PV input voltage (any condition): 200 VDC + battery voltage or 240 VDC - whichever is lower
Maximum PV operating voltage: 187 VDC
Maximum PV array short circuit current: 100 ADC
Nominal battery voltage range:12, 24, or 48 VDC
Battery charger output voltage range: 10 to 66 VDC
Continuous charger output current: 100 ADC (from -20°C to +40°C) with proportional power reduction up to 60°C ambient
Maximum output power: 6600 watts
Efficiency: 99% typical
Charger regulation method:Automatic three-stage (bulk, absorption, float) charge with manual equalization
Battery temperature compensation With Battery Temperature Sensor (BTS) connected (battery temperature -20 °C to +55 °C)
Internal cooling
Using dual ball-bearing fans for long life
Overcurrent protection
With two overlapping circuits
Over-temperature protection
On transformer and MOSFETS
Operating temperature: -20° C to +60° C (-4° F to 140° F)
Nonoperating temperature: -40° C to +70° C (-40° F to 158° F)
Operating humidity: 0 to 95% RH non condensing
Enclosure type: Indoor, ventilated, with removable powder-coated conduit box
Unit dimensions (w x h x d): 8.5" x 15.5" x 4.0" (21.6 cm x 39.4 cm x 10.2 cm)
Shipping dimensions (w x h x d): 11.5” x 19.5” x 8.125” (29.2 cm x 49.5 cm x 20.6 cm)
Mounting:Mounted on a vertical surface (wall) or installed on MP or MMP enclosure
Weight: 13.6 lb (6.2 kg)
Shipping weight: 18 lb (8.2 kg)
Max operating altitude: 15,000’ (4570 m)
Specifications
| Condition | Used |
|---|---|
| Brand | MAGNUM ENERGY |
| Manufacturer Part Number | PT-100 |
| Condition Description | SEE ALL 8 PHOTOS * SOLD IN CONDITION PICTURED * REMOTE & ROUTER NOT INCLUDED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, POWERS UP, DISPLAYS SOLAR PANEL INPUT VOLTAGE (16.1 VDC)AND CHARGE VOLTAGE OUTPUT (12.1 VDC)BUT HAS NOT BEEN TESTED FURTHER |
