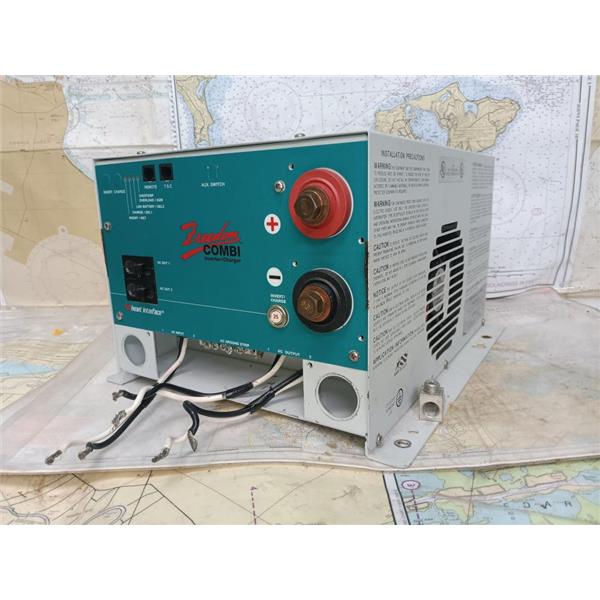

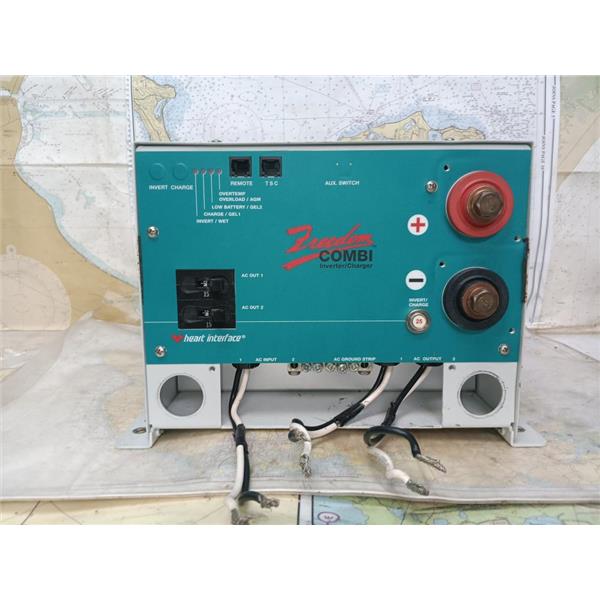

Boaters' Resale Shop of TX 2502 0744.05 FREEDOM COMBI 2000 WATT INVERTER/CHARGER MODEL 81-2023-12 * INVERTER/CHARGER ONLY * REMOTE & CABLES NOT INCLUDED * SEE ALL 8 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IS MISSING THE FRONT COMPARTMENT COVER AND THE TWO AC POWER CABLE KNOCK-OUTS ALSOSHOWS TYPICAL SIGNS OF WEAR FROM USE BUT IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, POWERS UP, INVERTS AC INPUT TO DC OUTPUT, TRANSFERS AC POWER INPUT TO AC OUTPUT AND HAS CHARGE VOLTAGE OUTPUT WHEN AC INPUT IS PRESENT BUT HAS NOT BEEN TESTED FURTHER
Freedom Combi Inverter/Chargers from Heart Interface.
These units perform three distinct functions:
1. DC to AC power inverting.
2. Automatic transfer switching between inverter power and incoming AC power.
3. Automatic 3-Stage Battery charging plus manual battery equalizing.
Freedom 20 . . . . . . . . . 2000 watts Invert Function
The inverter output is a modified sine wave and is compatible with most appliances, tools and other 120 VAC equipment. An idle circuit reduces battery power consumption when the loads are removed from the inverter. There is a low battery cutout circuit and momentary surge power of more than twice the inverter rating is available for starting electric motors. High efficiency insures the longest possible battery life between recharges.
Transfer Function
The internal transfer switch allows the Freedom Inverter/Charger to be connected to an external AC source and transfer the source power through to the loads. When disconnected, the transfer switch allows automatic switching back to the inverter.
Charge Function
The Freedom Inverter/Charger operates as a self-contained backup power system, just add batteries.
• Freedom battery chargers are electronically controlled and rated: 100 amps @ 12 volts
They are designed to rapidly and optimally recharge either wet** or gel** cell deep-cycle batteries.
Battery charging is accomplished in 3 automatic stages: Bulk Charge, Acceptance Charge and Float Charge.
Freedom Combi Inverter/Chargers from Heart Interface.
These units perform three distinct functions:
1. DC to AC power inverting.
2. Automatic transfer switching between inverter power and incoming AC power.
3. Automatic 3-Stage Battery charging plus manual battery equalizing.
Freedom 20 . . . . . . . . . 2000 watts Invert Function
The inverter output is a modified sine wave and is compatible with most appliances, tools and other 120 VAC equipment. An idle circuit reduces battery power consumption when the loads are removed from the inverter. There is a low battery cutout circuit and momentary surge power of more than twice the inverter rating is available for starting electric motors. High efficiency insures the longest possible battery life between recharges.
Transfer Function
The internal transfer switch allows the Freedom Inverter/Charger to be connected to an external AC source and transfer the source power through to the loads. When disconnected, the transfer switch allows automatic switching back to the inverter.
Charge Function
The Freedom Inverter/Charger operates as a self-contained backup power system, just add batteries.
• Freedom battery chargers are electronically controlled and rated: 100 amps @ 12 volts
They are designed to rapidly and optimally recharge either wet** or gel** cell deep-cycle batteries.
Battery charging is accomplished in 3 automatic stages: Bulk Charge, Acceptance Charge and Float Charge.
Specifications
| Condition | Used |
|---|---|
| Brand | HEART INTERFACE |
| Manufacturer Part Number | 81-2023-12 |
| Condition Description | INVERTER/CHARGER ONLY * REMOTE & CABLES NOT INCLUDED * SEE ALL 8 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IS MISSING THE FRONT COMPARTMENT COVER AND THE TWO AC POWER CABLE KNOCK-OUTS ALSOSHOWS TYPICAL SIGNS OF WEAR FROM USE BUT IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, POWERS UP, INVERTS AC INPUT TO DC OUTPUT, TRANSFERS AC POWER INPUT TO AC OUTPUT AND HAS CHARGE VOLTAGE OUTPUT WHEN AC INPUT IS PRESENT BUT HAS NOT BEEN TESTED FURTHER |
