Boaters’ Resale Shop of TX 2503 2141.24 XANTREX HF1800 WATT INVERTER/CHARGER

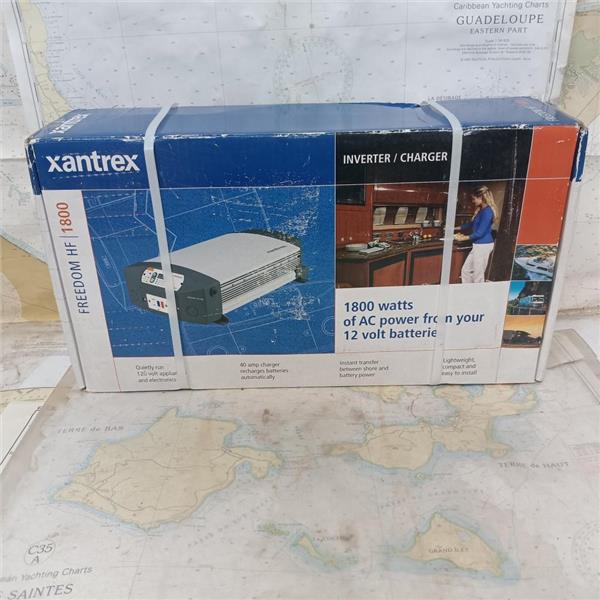

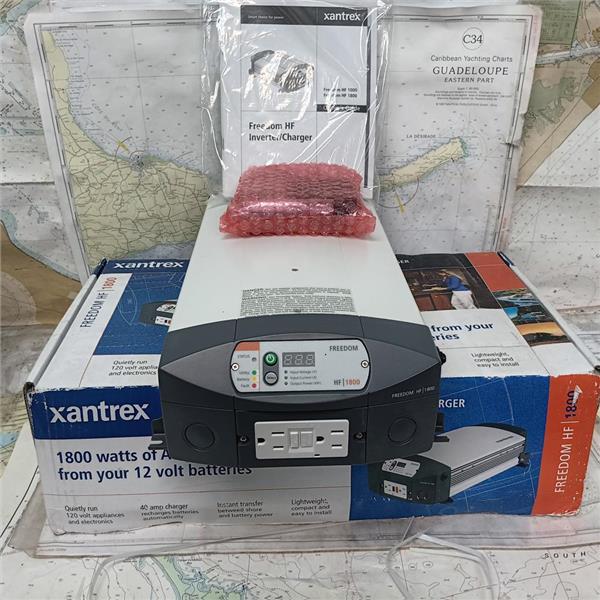

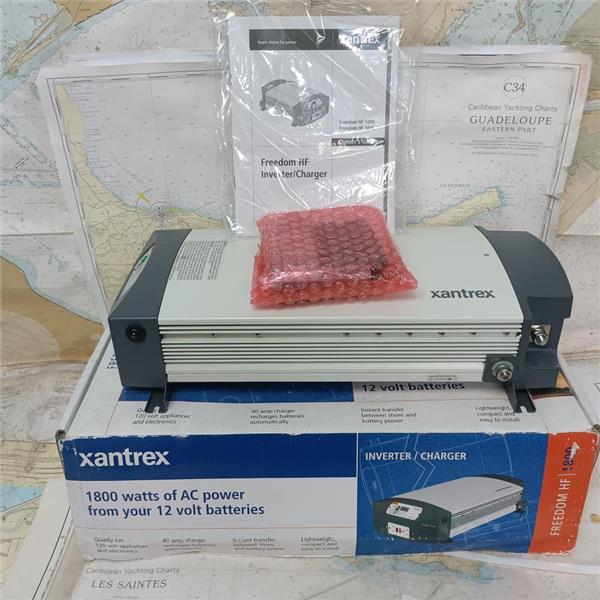

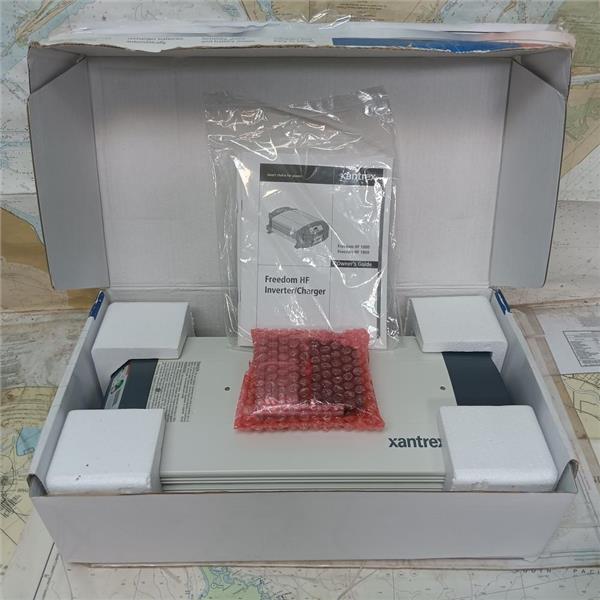

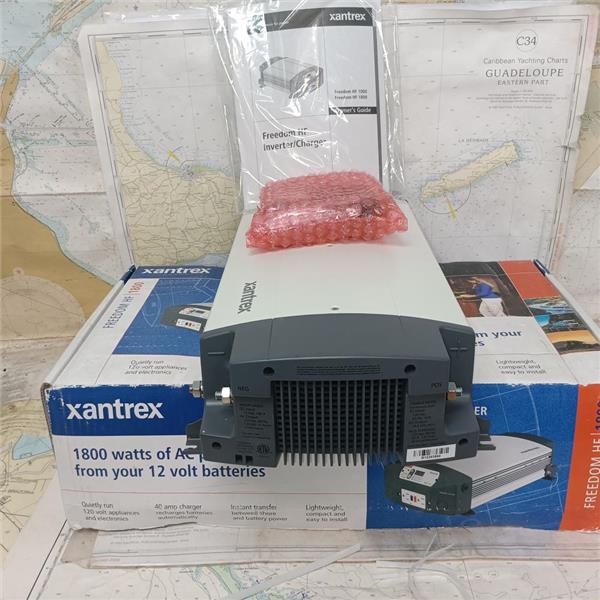

Boaters’ Resale Shop of TX 2503 2141.24 XANTREX HF1800 WATT INVERTER/CHARGER * 806-1840 * BOX INCLUDES: 1800 WATT INVERTER, 40 AMP BATTERY CHARGER, MANUALS & 25' EXTENSION CABLE * SEE ALL 5 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED BUT HAS NOT BEEN TESTED

XANTREX FREEDOM HF1800 WATT INVERTER/CHARGER MODEL 806-1840 "NEW OTHER" IN ORIGINAL BOX
Description
Xantrex Freedom HF 1800 Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers
Freedom HF Inverter/Charger has modified sine wave output to operate TVs, stereos & small appliances in boats, RV’s
This Freedom HF is 1800 watts with a 40-amp charger.
Multistage charging helps ensure that batteries are recharged quickly and efficiently.
Is equipped with a built-in automatic transfer switch and dual GFCI receptacle.
Detachable digital remote control panel display provides precise system information and can be mounted at a convenient location for remote monitoring.
Product Features:
Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment
Removable digital display pre-attached with 25’ extension cable for remote system monitoring
Ignition lockout feature helps to minimize battery drain
Automatic three-stage battery charger
Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included)
Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power
Protection Features:
Battery over-voltage and under-voltage protection
Over-temperature shutdown
Automatic overload protection
Short-circuit protection
Ground-fault protection
ETL certified to UL458 for use in mobile RV and commercial applications
Electrical Specifications – Inverter:
Output power (continuous): 1800 W
Surge power: 3600 W
Output frequency regulation: 60 Hz
Inverter voltage regulation: 115 +/-10 Vrms
Output wave form: Modified sine wave
Efficiency (full load): > 80% >
Peak efficiency: > 87%
No-load input power (producing output voltage): < 10 W
Off mode current draw (display off): < 1 mA
Electrical Specifications – Charger:
Charge rate: 40 A
AC input voltage range: 90 – 130 Vac
AC transfer relay: 30 A
Battery voltage (nominal): 12 Vdc
Operating voltage range: 10.5 – 15.5 Vdc
Low battery cut-out (low limit / high limit): 10.5 Vdc / 11.8 Vdc
AC input (max. charge): 7.5 Aac
Default bulk charge voltage setting: 14.2 Vdc
Default float charge voltage setting: 13.5 Vdc
Battery charge outputs: One
Charge control: Three-stage
Battery type settings: Flooded / Gel / AGM / Fixed 13.5 Vdc
Equalization: No
Internal temperature-sensitive charging: Yes
General Specifications:
Optimal operating temperature range: 32°F to 104°F (0°C to 40°C)
Optional remotes: Detachable display
Unit weight: 12.8 lb (5.8 kg)
Unit dimensions (H x W x L): 4.2 x 9.5 x 18.0“ (106 x 241 x 393 mm)
