Boaters’ Resale Shop of TX 2503 2147.14 WICHARD HR #4 QUICK RELEASE SNAP SHACKLE

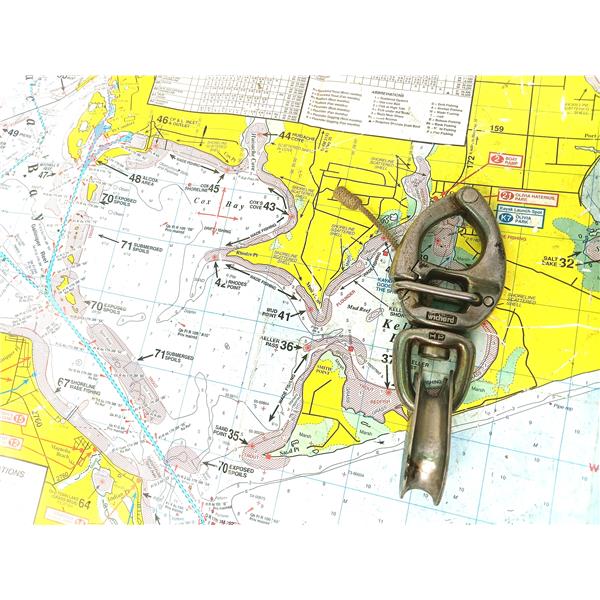

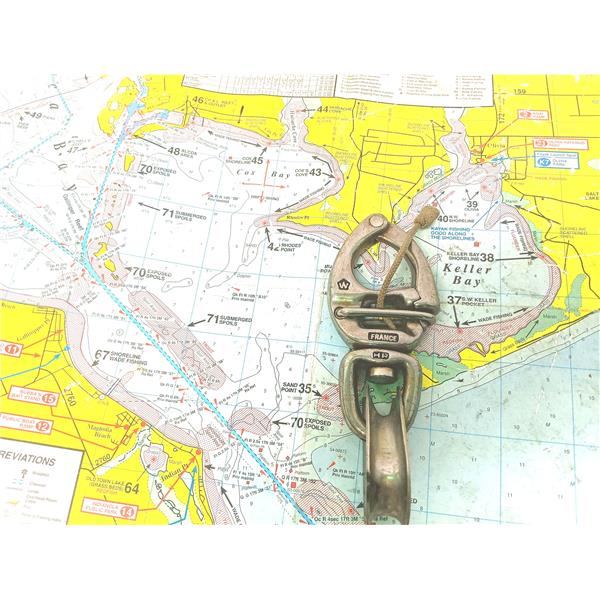

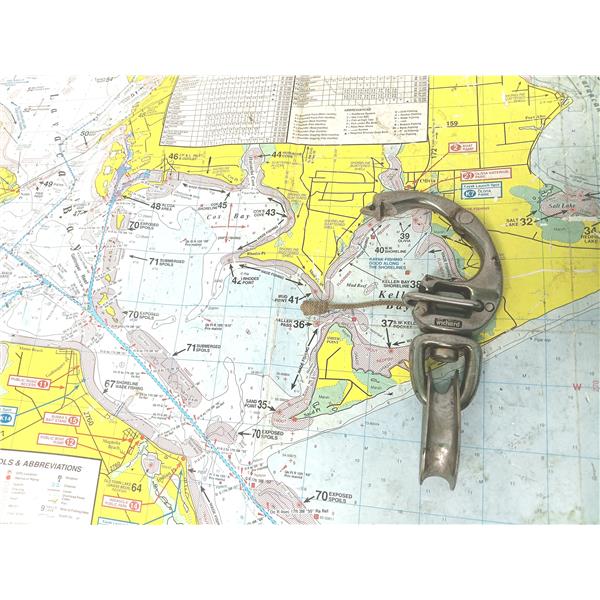

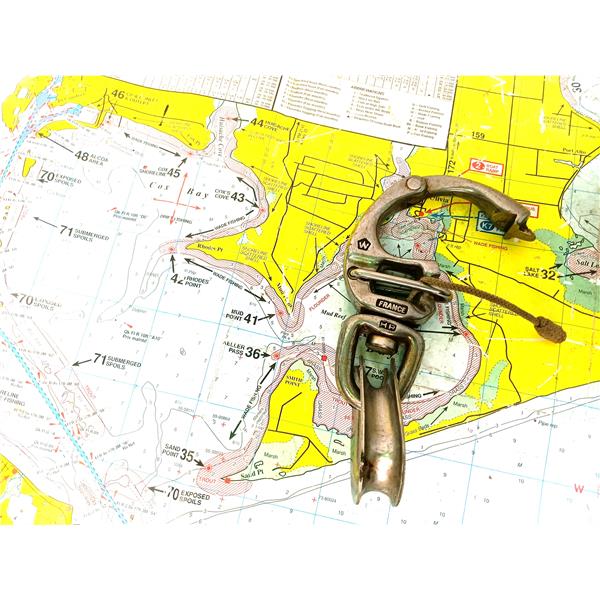

Boaters’ Resale Shop of TX 2503 2147.14 WICHARD HR #4 QUICK RELEASE SNAP SHACKLE with SWIVEL-EYE & THIMBLE  * SEE ALL 5 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, USED BUT IS STILL IN GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER

Description
WICHARD HR #4 QUICK RELEASE SNAP SHACKLE with SWIVEL-EYE & THIMBLE
HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"
WICHARD PN: WIC02676
Features:
HR forged (17.4 PH) quick-release snap shackle with swivel eye
The opening is made by pulling the lanyard
Perfect to attach one sheet or halyard
Outstanding working and breaking loads
Free rotation of the snap shackle thanks to the swivel
Applications:
For spinnaker operations
Perfect for spinnaker sheets and halyards
Specifications:
Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 5290 / (kg) 2400
Breaking load: (lb) 9250 / (kg) 4200
Weight: (lb) 0.514 / (g) 233
Dimensions:
A: (inch) 63/64" / (mm) 25
B: (inch) 5/8" / (mm) 16
Length: (inch) 4 21/64" / (mm) 110
Caption:
Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)
