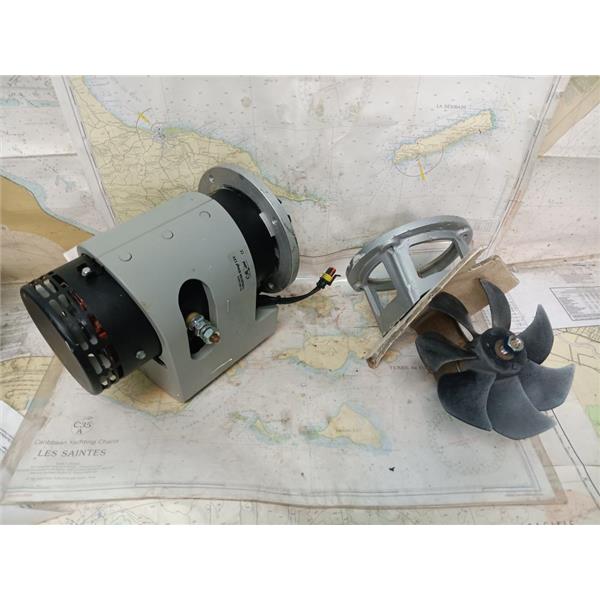

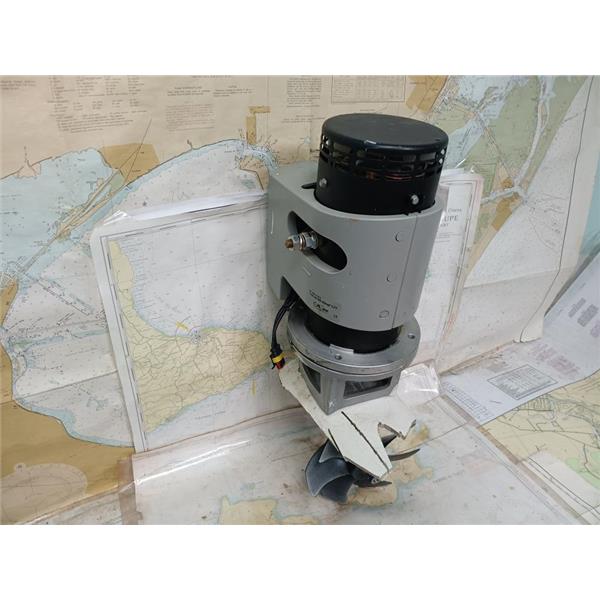

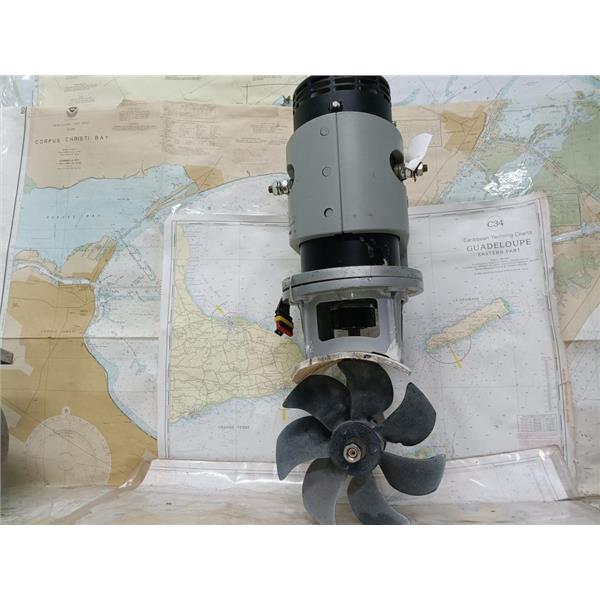

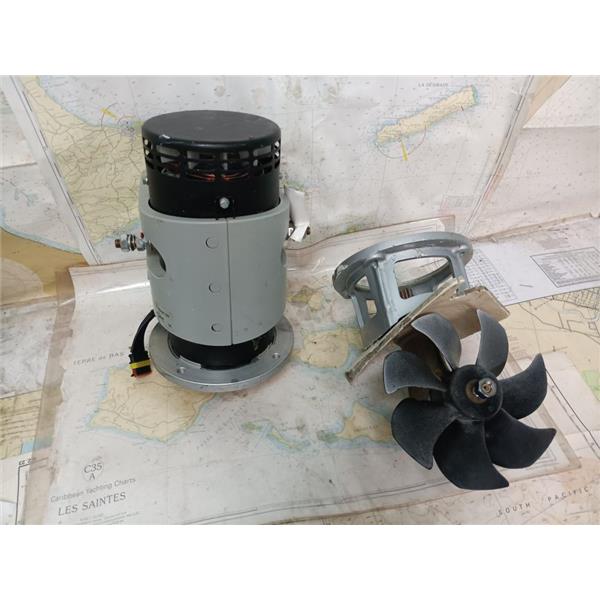

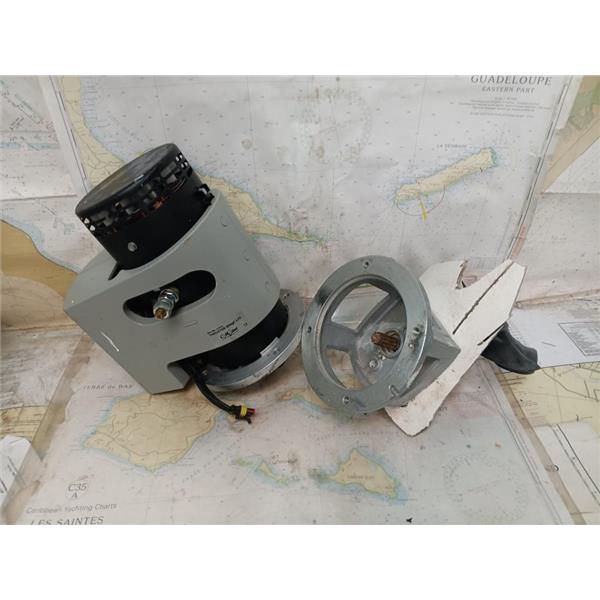

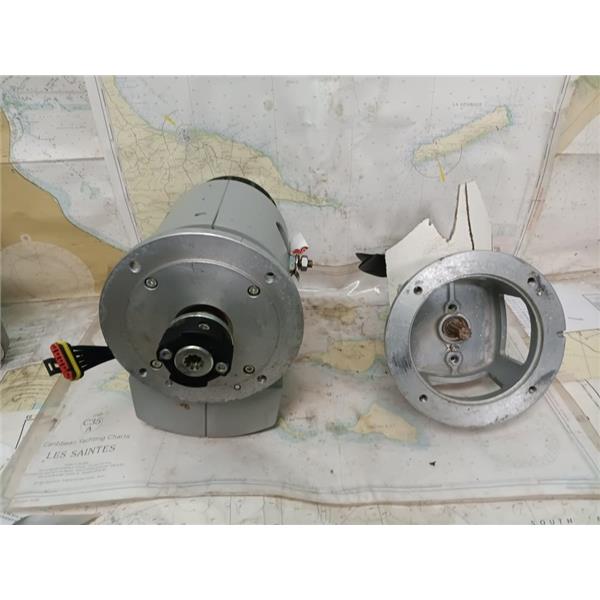

Boaters' Resale Shop of TX 2504 2251.04 C-MARINE 80KGF 12 VOLT BOW THRUSTER ASSEMBLY BA185.21012 * ASSEMBLY IS IN TWO PIECES AND DID NOT COME WITH THE ATTACHMENT HARDWARE(NUTS & BOLTS) * CONTROL PANEL, CABLES & MOUNTING HARDWARE NOT INCLUDED * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, SHOWS TYPICAL SIGNS OF WEAR FROM USE AND WEATHER BUT IS IN FAIR NAUTICAL PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED *
**ASSEMBLY IS IN TWO PIECES AND DID NOT COME WITH THE ATTACHMENT HARDWARE(NUTS & BOLTS)**
SPECS.
Propulsion 80 kgf
Engine power 4.0 kW
Min. Battery capacity (Ah) 165 Ah
Tension 12 Volt (DC)
Tunnel diameter 185
Maximum cyclic duration 2 min/hour
Current (A) 505 A
Slow Fuse (A) 355 A
Battery cable connector M10
Weight 23 kg
Motor, reversible DC type
**ASSEMBLY IS IN TWO PIECES AND DID NOT COME WITH THE ATTACHMENT HARDWARE(NUTS & BOLTS)**
General features:
- Protection cover for electrical components.
- Easily accessible battery connection terminals.
- Waterproof and latch lock connector for the control panel. A 100% guaranteed connection also in case of vibrations.
- Motor temperature protection switch.
- 5A circuit breaker for the control panel.
- Brass tail piece.
- Replaceable zinc or aluminium anode.
- Flexible coupling to absorb vibrations.
- Supplied with 1mm and 2mm gasket to center the propeller inside the tunnel.
- FAN for extra cooling.
Propulsion 80 kgf
Engine power 4.0 kW
Min. Battery capacity (Ah) 165 Ah
Tension 12 Volt (DC)
Tunnel diameter 185
Maximum cyclic duration 2 min/hour
Current (A) 505 A
Slow Fuse (A) 355 A
Battery cable connector M10
Weight 23 kg
Motor, reversible DC type
Specifications
| Condition | Used |
|---|---|
| Brand | C-MARINE |
| Manufacturer Part Number | BA185.21012 |
| Condition Description | ASSEMBLY IS IN TWO PIECES AND DID NOT COME WITH THE ATTACHMENT HARDWARE(NUTS & BOLTS) * CONTROL PANEL, CABLES & MOUNTING HARDWARE NOT INCLUDED * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, SHOWS TYPICAL SIGNS OF WEAR FROM USE AND WEATHER BUT IS IN FAIR NAUTICAL PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED * **ASSEMBLY IS IN TWO PIECES AND DID NOT COME WITH THE ATTACHMENT HARDWARE(NUTS & BOLTS)** |
