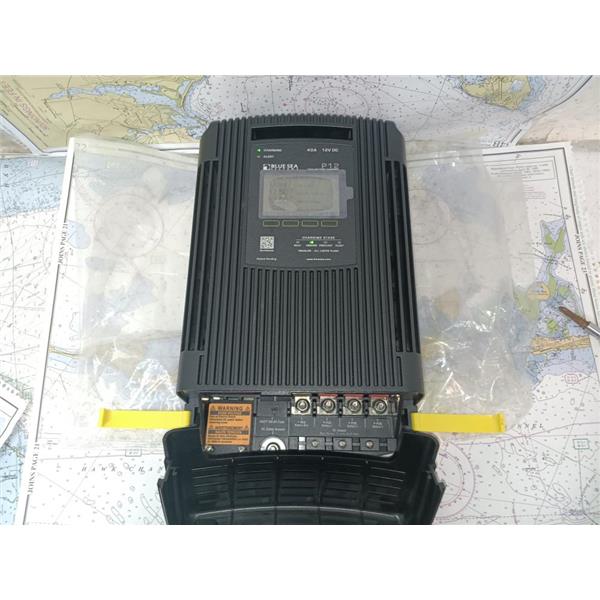

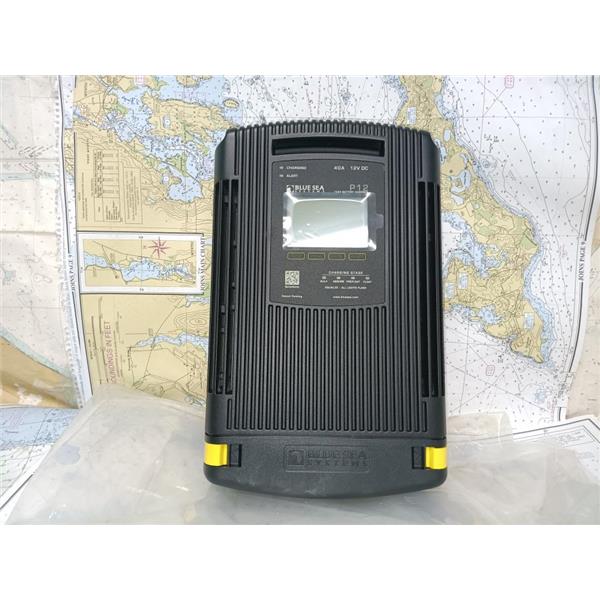

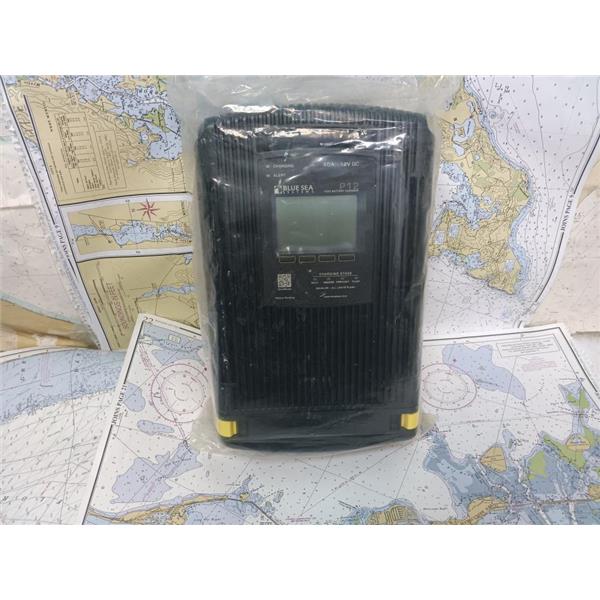

Boaters' Resale Shop of TX 2505 2502.02 BLUE SEA SYSTEMS P12 BATTERY 40A CHARGER PN: 7322 * Discontinued - Replaced by PN: 7532 * SEE ALL 8 PHOTOS & DETAILS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL PACKAGE, DISPLAY STILL HAS PROTECTIVE FILM ATTACHED AND IS IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND ALL 3 BANKS HAVE CHARGE VOLTAGE PRESENT BUT HAS NOT BEEN TESTED FURTHER
P12 Battery Charger - 12V DC 40A PN:7522
Discontinued - Replaced by PN: 7532
The P12 Battery Charger is a four stage, three output, dry mount charger designed for use in harsh environments where reliability, ease of use, and high performance are of primary importance. Backed by a 5-year warranty and technical phone support, the P12 Battery Charger is designed, assembled, and tested at Blue Sea Systems’ company headquarters in Bellingham, Washington.
Five Critical Features Extend Battery Life

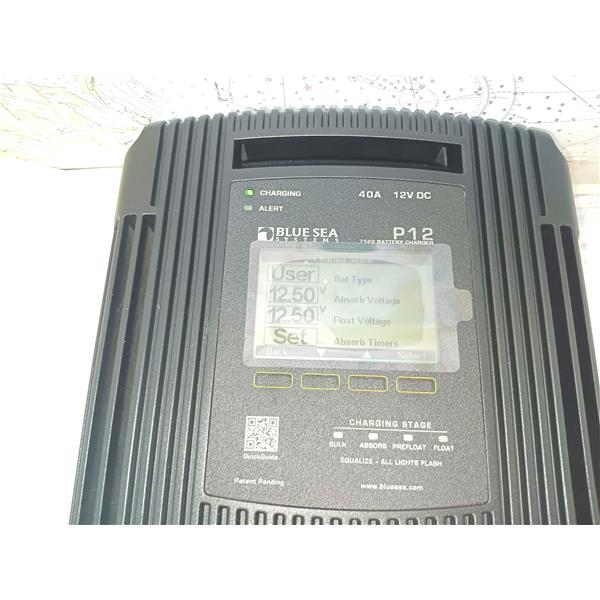

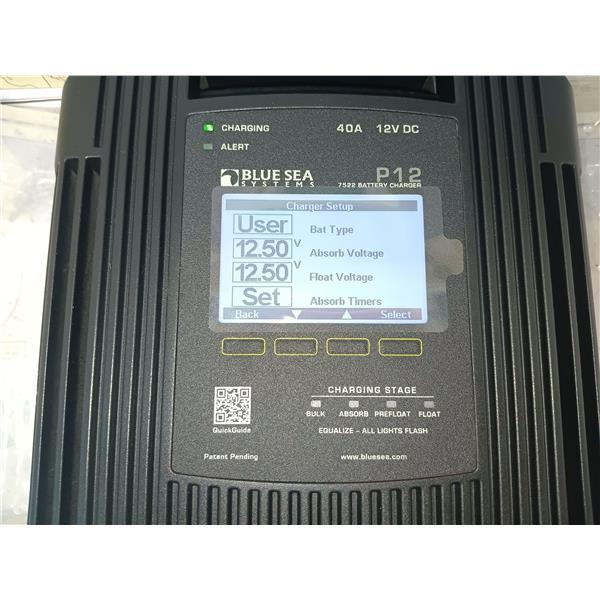

User Defined Charge Profiles for setting voltages to match the battery manufacturer’s recommendations
User Defined Absorption Stage Values determine when the charger should exit Absorption Stage in order to prevent overcharging
Charge Coordination™ integrates with Blue Sea Systems’ Automatic Charging Relays to separate battery banks while the P12 is operational
PreFloat™ Stage prevents over charging by individually moving batteries out of Absorption Stage
Battery Temperature Compensation adjusts charging voltage up (for colder batteries) or down (for warmer batteries) as recommended by battery manufacturers for proper battery performance
Additional Features
Rugged finned aluminum case dissipates heat
Universal line voltage 90–265V AC, 45–65 Hz for worldwide use

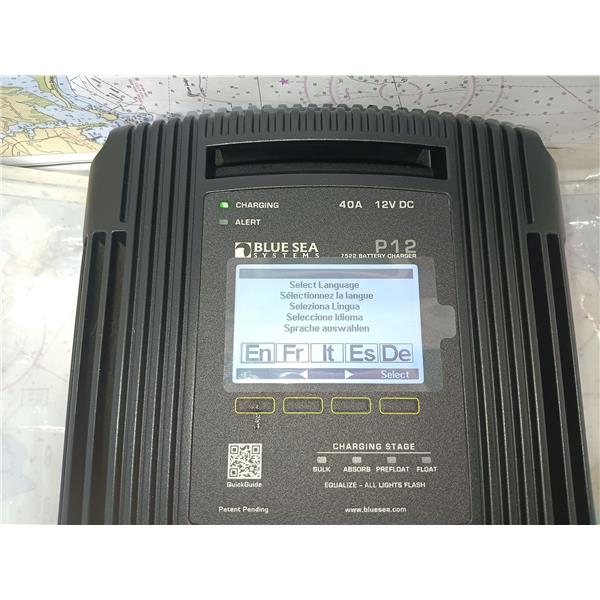

Large bright full graphic control screen with user interface
Plain-language text in English, French, Italian, German and Spanish
Intuitive screens provide fault alerts and plain language diagnostics

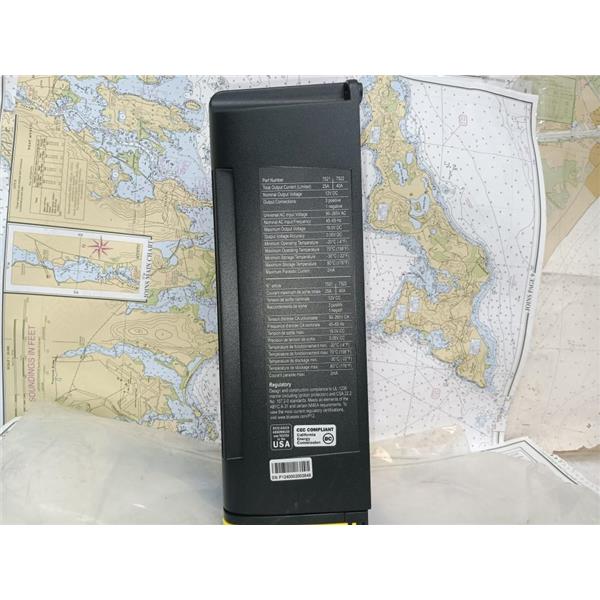

Specifications
Total Output Current: 40A
Input AC Current 7.5A @ 100V AC 3.75A @ 200V AC
Maximum Output Voltage 16.0V DC
Nominal Voltage 12V DC
Ignition Protected [Devices, which operate in a potentially explosive environment, must be ignition protected. This would include engine rooms with gasoline engines. There is a very specific set of tests which a device must pass to claim ignition protection. They include operating safely in an explosive mixture of propane and air.] Yes

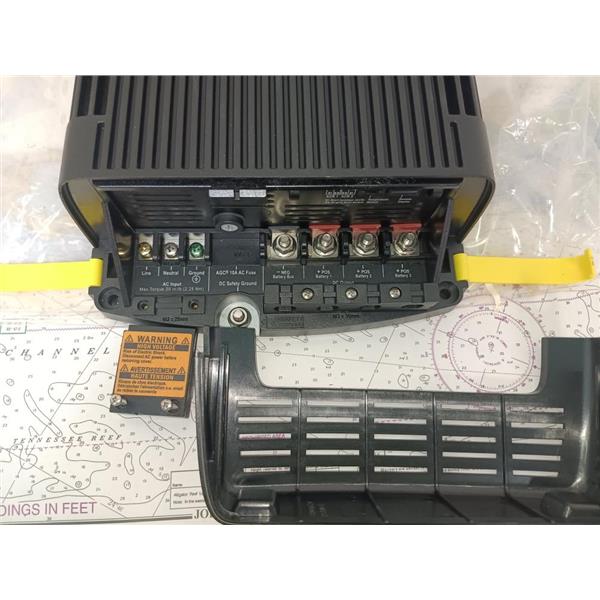

Number of Outputs: 1 negative 3 positive
Universal AC Input Voltage: 90-265V AC
AC Input Frequency: 45-65Hz
Output Voltage Accuracy: 0.05V
Typical Float Voltage: 13.5V DC
Minimum Operating Temperature -20° C
Maximum Operating Temperature 70° C
Minimum Storage Temperature -30° C
Maximum Storage Temperature 80° C
Battery Types AGM, Flooded, Lead Acid, Gel, TPPL (Thin Plate Pure Lead)
Recommended for Battery Bank: Sizes 440Ah Maximum [Example: 4 x Group 31]
60Ah Minimum [Example: 2 x Group 31]
Height 13.03in (330.96 mm)
Width 8.46in (214.88 mm)
Depth 3.66in (92.96 mm)
Weight 12.00lb (5.44 kg)
P12 Battery Charger - 12V DC 40A PN:7522
Discontinued - Replaced by PN: 7532
The P12 Battery Charger is a four stage, three output, dry mount charger designed for use in harsh environments where reliability, ease of use, and high performance are of primary importance. Backed by a 5-year warranty and technical phone support, the P12 Battery Charger is designed, assembled, and tested at Blue Sea Systems’ company headquarters in Bellingham, Washington.
Five Critical Features Extend Battery Life
User Defined Charge Profiles for setting voltages to match the battery manufacturer’s recommendations
User Defined Absorption Stage Values determine when the charger should exit Absorption Stage in order to prevent overcharging
Charge Coordination™ integrates with Blue Sea Systems’ Automatic Charging Relays to separate battery banks while the P12 is operational
PreFloat™ Stage prevents over charging by individually moving batteries out of Absorption Stage
Battery Temperature Compensation adjusts charging voltage up (for colder batteries) or down (for warmer batteries) as recommended by battery manufacturers for proper battery performance
Additional Features
Rugged finned aluminum case dissipates heat
Universal line voltage 90–265V AC, 45–65 Hz for worldwide use
Large bright full graphic control screen with user interface
Plain-language text in English, French, Italian, German and Spanish
Intuitive screens provide fault alerts and plain language diagnostics
Specifications
Total Output Current: 40A
Input AC Current 7.5A @ 100V AC 3.75A @ 200V AC
Maximum Output Voltage 16.0V DC
Nominal Voltage 12V DC
Ignition Protected [Devices, which operate in a potentially explosive environment, must be ignition protected. This would include engine rooms with gasoline engines. There is a very specific set of tests which a device must pass to claim ignition protection. They include operating safely in an explosive mixture of propane and air.] Yes
Number of Outputs: 1 negative 3 positive
Universal AC Input Voltage: 90-265V AC
AC Input Frequency: 45-65Hz
Output Voltage Accuracy: 0.05V
Typical Float Voltage: 13.5V DC
Minimum Operating Temperature -20° C
Maximum Operating Temperature 70° C
Minimum Storage Temperature -30° C
Maximum Storage Temperature 80° C
Battery Types AGM, Flooded, Lead Acid, Gel, TPPL (Thin Plate Pure Lead)
Recommended for Battery Bank: Sizes 440Ah Maximum [Example: 4 x Group 31]
60Ah Minimum [Example: 2 x Group 31]
Height 13.03in (330.96 mm)
Width 8.46in (214.88 mm)
Depth 3.66in (92.96 mm)
Weight 12.00lb (5.44 kg)
Specifications
| Condition | New other (see details) |
|---|---|
| Brand | BLUE SEA SYSTEMS |
| Manufacturer Part Number | 7522 |
| Condition Description | * Discontinued - Replaced by PN: 7532 * SEE ALL 8 PHOTOS & DETAILS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL PACKAGE, DISPLAY STILL HAS PROTECTIVE FILM ATTACHED AND IS IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND ALL 3 BANKS HAVE CHARGE VOLTAGE PRESENT BUT HAS NOT BEEN TESTED FURTHER |
