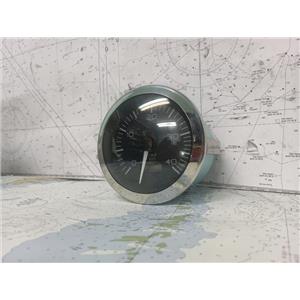

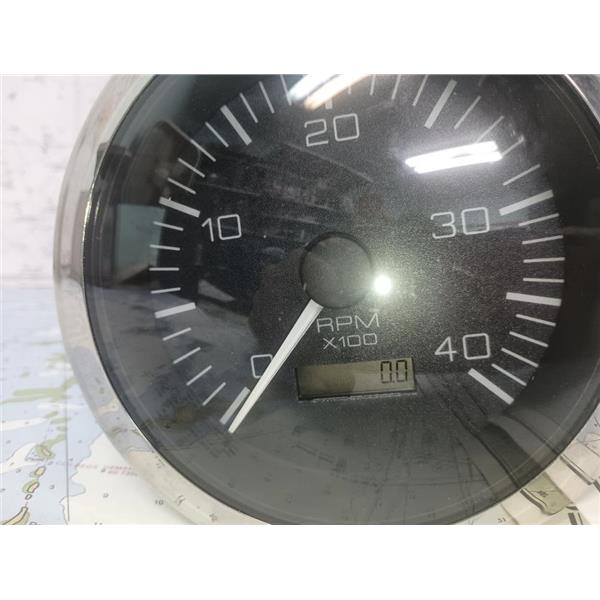

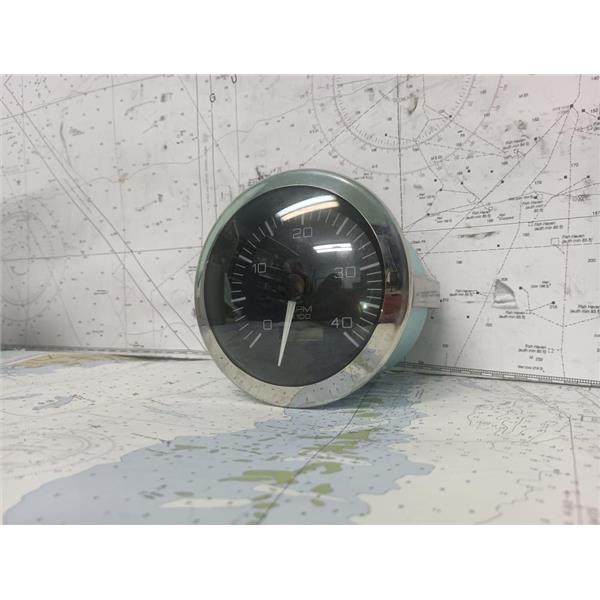

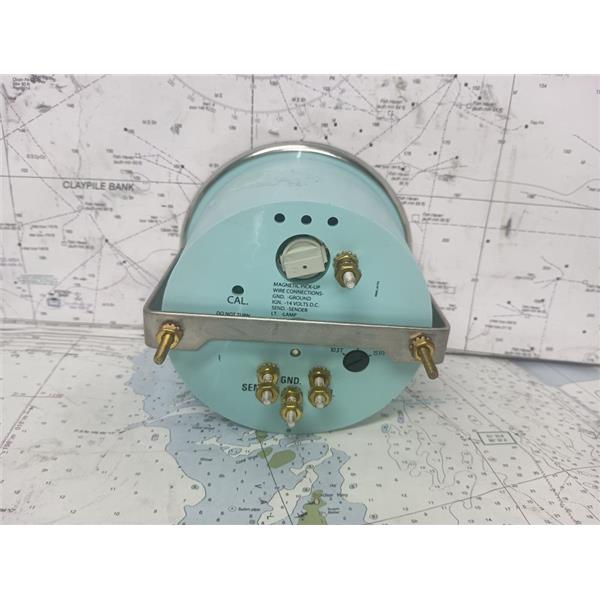

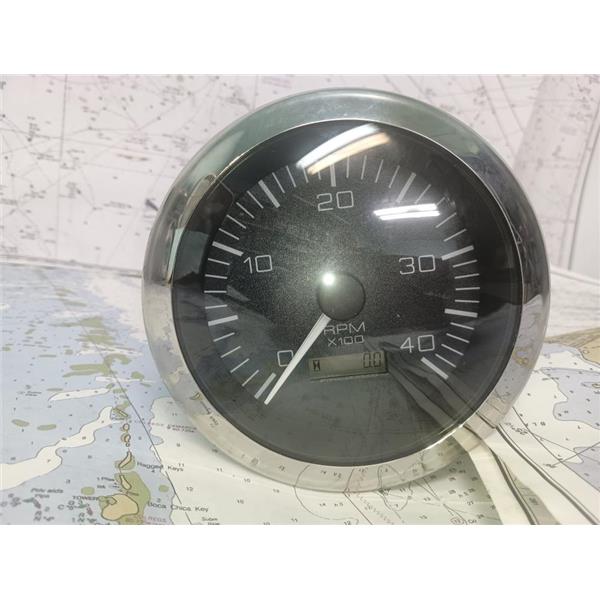

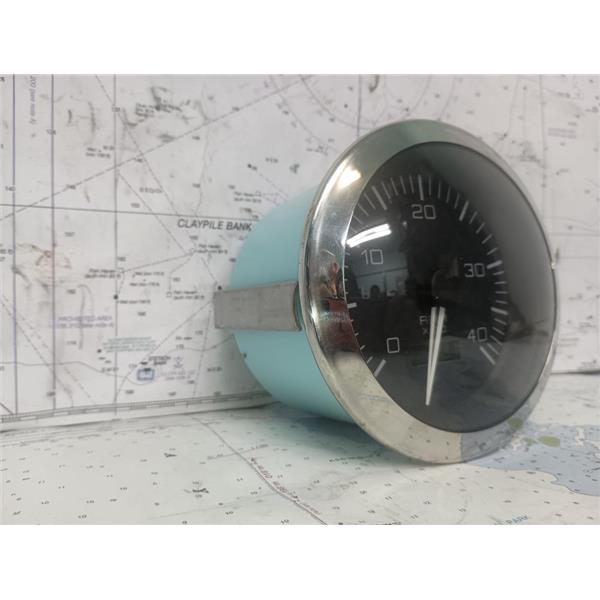

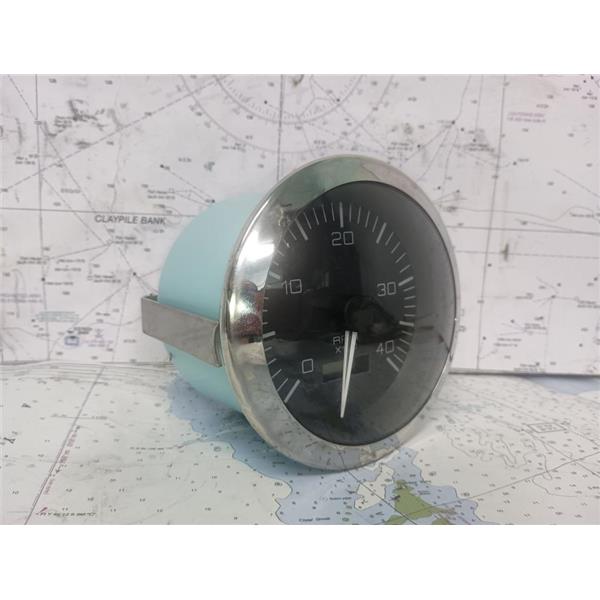

Boaters' Resale Shop of TX 2507 0501.14 SEA RAY DIESEL 5" TACHOMETER 86275F (0-4000 RPM) * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, OUT OF ORIGINAL BOX & PACKING, BUT IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED, DIGITAL HOUR METER DISPLAY POWERS UP BUT AND HAS NOT BEEN TESTED
Stainless Steel Polished trim ring - The photos sometimes make the trim ring look black
12 Volt gauge
Original replacement gauge for most Sea Ray boats from the mid 1990's through 2002ish.
These are exact replacements aside from the absence of the small "SR" logo toward the bottom of the dial.
Stainless steel trim ring. Also a direct replacement for the earlier gauges that had black or gray plastic trim rings.
Replaces Sea Ray part #'s 1291384 912527 0912527. Teleflex part# 86275F or 8675F (printed on the side of the gauge).
0-4000 rpm Tachometer for diesel engines with magnetic pick-up (Caterpillar or Cummins) Adjustable for 103, 126, or 159T (teeth on the flywheel)
MAG pickup is not included with the tachometer
12 volt, will not work with the larger yachts that have 24V gauge systems
4-3/8" cutout diameter, outside diameter of trim ring is approximately 4-3/4"
Digital hour meter.
Stainless Steel Polished trim ring - The photos sometimes make the trim ring look black
12 Volt gauge
Original replacement gauge for most Sea Ray boats from the mid 1990's through 2002ish.
These are exact replacements aside from the absence of the small "SR" logo toward the bottom of the dial.
Stainless steel trim ring. Also a direct replacement for the earlier gauges that had black or gray plastic trim rings.
Replaces Sea Ray part #'s 1291384 912527 0912527. Teleflex part# 86275F or 8675F (printed on the side of the gauge).
0-4000 rpm Tachometer for diesel engines with magnetic pick-up (Caterpillar or Cummins) Adjustable for 103, 126, or 159T (teeth on the flywheel)
MAG pickup is not included with the tachometer
12 volt, will not work with the larger yachts that have 24V gauge systems
4-3/8" cutout diameter, outside diameter of trim ring is approximately 4-3/4"
Digital hour meter.
Specifications
Condition | New other (see details) |
---|---|
Brand | Teleflex Marine |
Manufacturer Part Number | 86275F |
Condition Description | SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, OUT OF ORIGINAL BOX & PACKING, BUT IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED, DIGITAL HOUR METER DISPLAY POWERS UP BUT AND HAS NOT BEEN TESTED |
