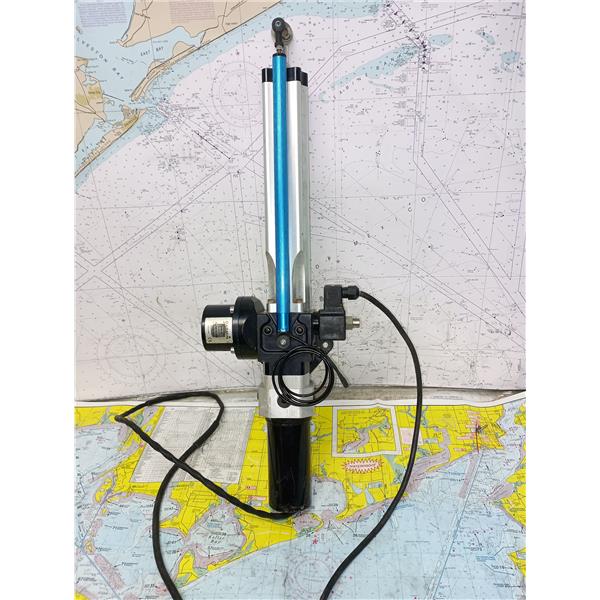

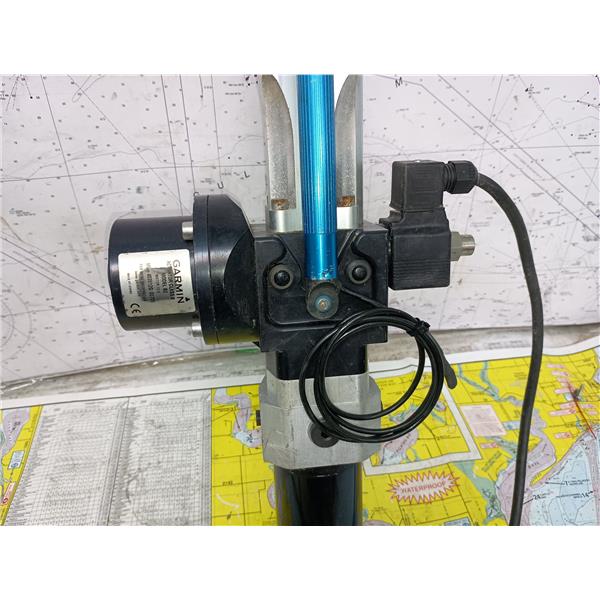

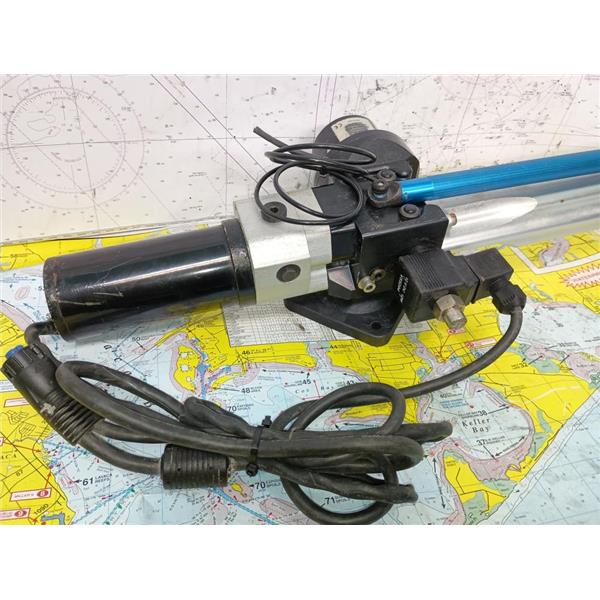

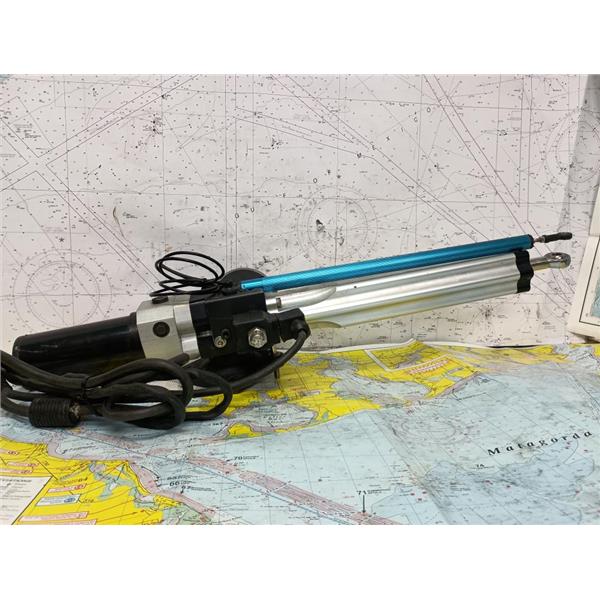

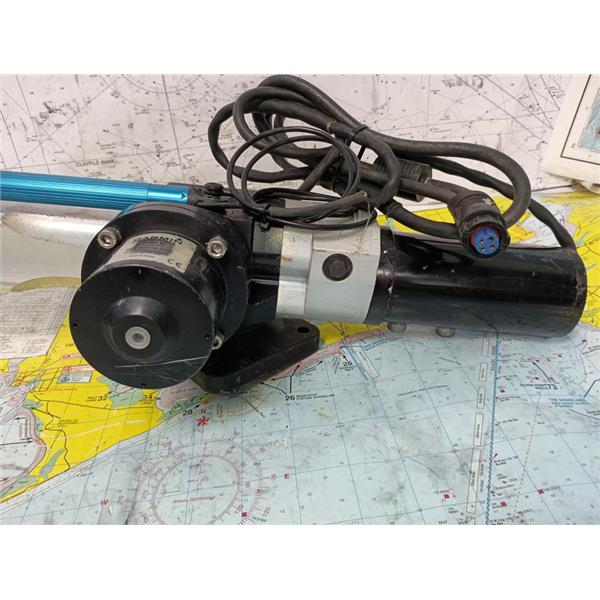

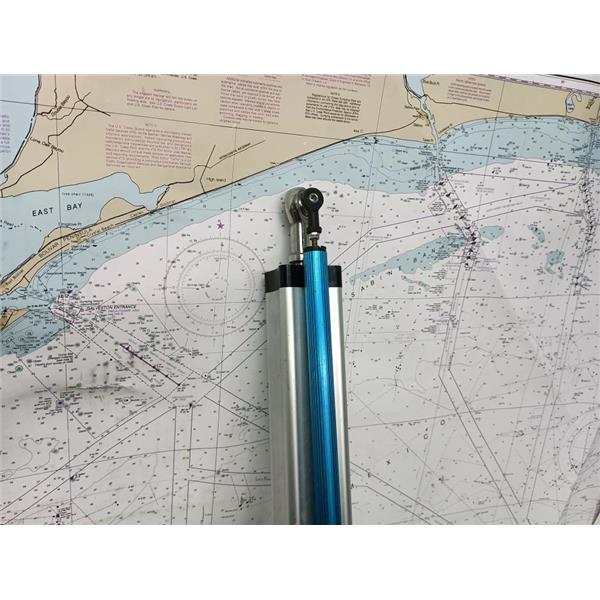

Boaters' Resale Shop of TX 2508 2308.14 GARMIN CLASS B LINEAR DRIVE ACTUATOR UNIT MODEL B2 * MOUNTING HARDWARE, TILLER WASHER, BOLT & NUT ARE NOT INCLUDED * SEE ALL 8 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY MAY BE REQUIRED WHEN SHIPPING * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, UNIT DRIVES IN AND OUT WHEN 12 VOLTS ARE APPLIED BUT HAS NOT BEEN TESTED FURTHER
GARMIN CLASS B LINEAR DRIVE ACTUATOR UNIT MODEL B2 * PN: 010-12029-00
The Class B Compact Drive Unit works with the GHP™ 12 marine autopilot system to control your sailboat's steering
This device is designed for use with sailboats with up to 48,400 lbs of displacement.
SPECS.
Drive Unit Type: Integrated Hydraulic linear
Stroke Length: 10" (254 mm)
Maximum Thrust: 1610 lb (730 kg)
Dimensions, (Centered): 4.6" H x 8.9" D x 31.9" L
Supply Voltage: 10V to 30V (regulated to 12V by the ECU)
Average Clutch Current at 12V: 1 Amp
Average Motor Current at 12V: 2-4 Amps
Operating Temperature: -15° C to 50° C
GARMIN CLASS B LINEAR DRIVE ACTUATOR UNIT MODEL B2 * PN: 010-12029-00
The Class B Compact Drive Unit works with the GHP™ 12 marine autopilot system to control your sailboat's steering
This device is designed for use with sailboats with up to 48,400 lbs of displacement.
SPECS.
Drive Unit Type: Integrated Hydraulic linear
Stroke Length: 10" (254 mm)
Maximum Thrust: 1610 lb (730 kg)
Dimensions, (Centered): 4.6" H x 8.9" D x 31.9" L
Supply Voltage: 10V to 30V (regulated to 12V by the ECU)
Average Clutch Current at 12V: 1 Amp
Average Motor Current at 12V: 2-4 Amps
Operating Temperature: -15° C to 50° C
Specifications
| Condition | Used |
|---|---|
| Brand | GARMIN |
| Manufacturer Part Number | 010-12029-00 |
| Condition Description | MOUNTING HARDWARE, TILLER WASHER, BOLT & NUT ARE MISSING & NOT INCLUDED * SEE ALL 8 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY MAY BE REQUIRED WHEN SHIPPING * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, UNIT DRIVES IN AND OUT WHEN 12 VOLTS ARE APPLIED BUT HAS NOT BEEN TESTED FURTHER MOUNTING HARDWARE, TILLER WASHER, BOLT & NUT ARE MISSING & NOT INCLUDED |
