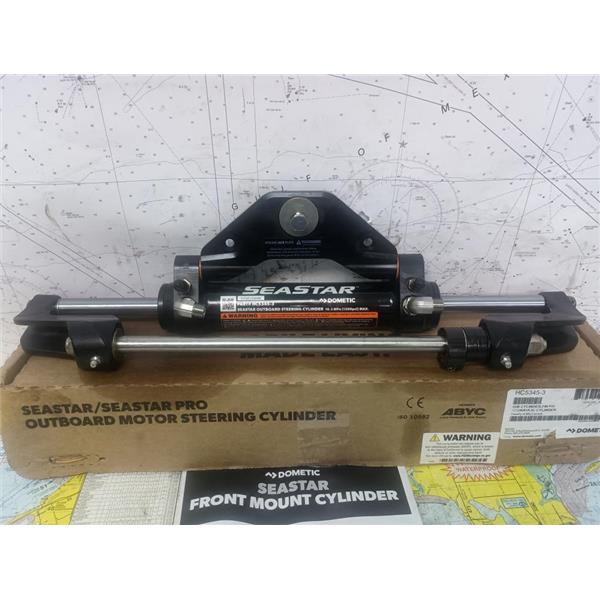

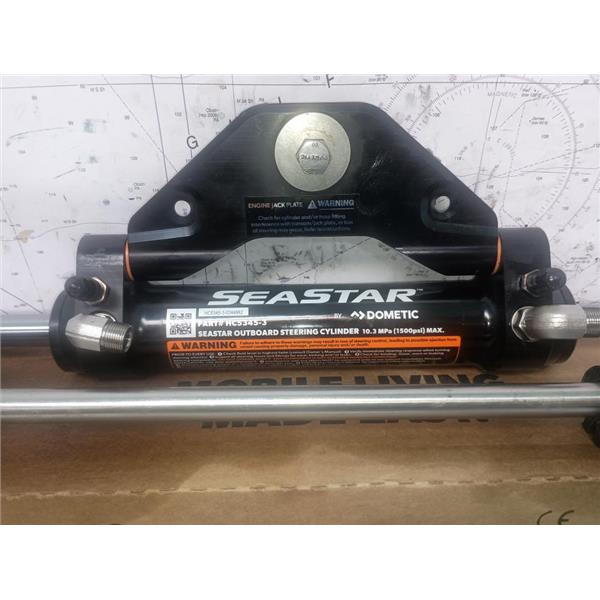

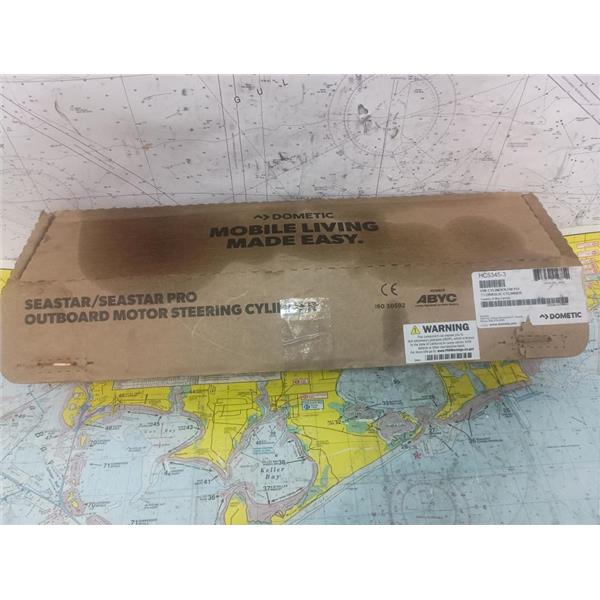

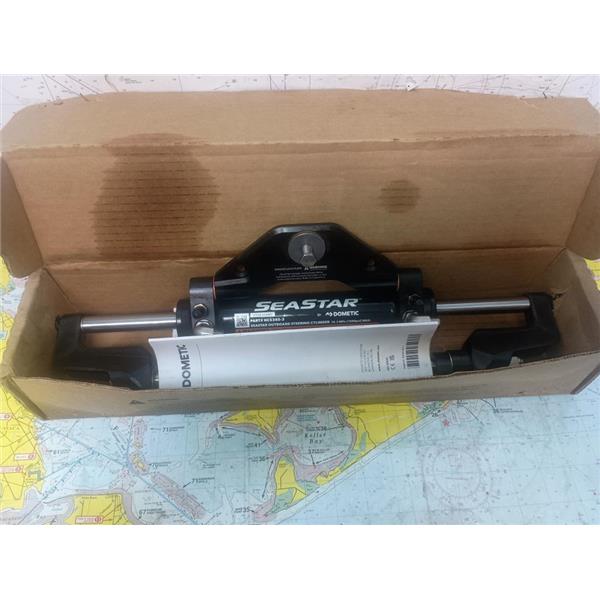

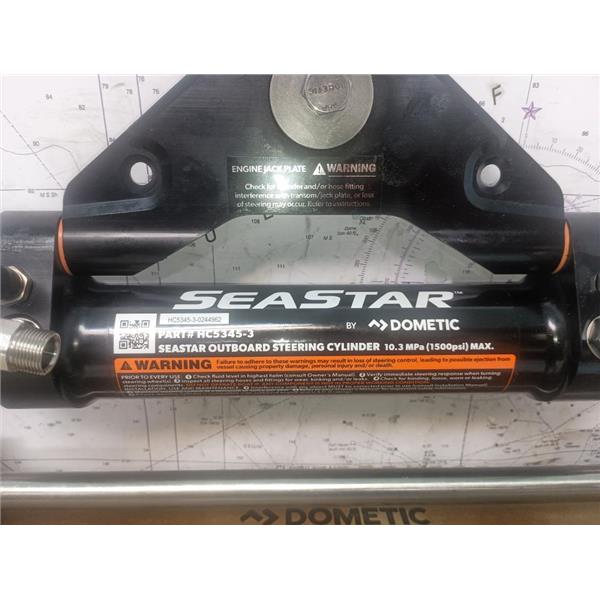

Boaters' Resale Shop of TX 2509 1341.11 DOMETIC O.B. STEERING CYLINDER HC5345 with MANUAL - IN ORIGINAL BOX * Dometic/Seastar Cylinder Outboard Front Mount HC5345-3 * SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED
Key Features & Benefits
* Supports Up to 700 HP (Total Power, Counter-Rotating) – Ideal for single, twin, or triple engine setups.
* Independent Engine Tilt – Allows separate engine tilt control on multi-engine installations.
* Robust & Corrosion-Resistant Design – Engineered to withstand repeated compression and harsh marine environments.
* Upgraded Sealing System – New 8-hole end gland design and proprietary sealing system enhance durability and simplify servicing.
* Positionable Stainless ORB Fittings – Upgraded from 1/4" NPT to -5 ORB stainless steel fittings for easier, leak-free installation and improved hose routing.
* Smooth & Responsive Steering – Designed to work with all SeaStar helm pumps, including Power Assist systems.
* Variable Lock-to-Lock Turns – Adjusts with helm selection to deliver a tailored steering response.
Technical Specifications
Direct Replacement for the HC5345 (earlier generation; “-3” adds -5 ORB ports and internal upgrades)
Mount Style: Front Mount, Pivoting
Shaft Diameter: 0.75" (19mm)
Stroke Length: 8.00" (203mm)
Cylinder bore: 1.375 in (~35 mm)
Displacement (fluid volume): 8.34 cu in (136.6 cc)
Ports / fittings: Positionable stainless ORB hose fittings (-5 ORB); do not use NPT
Overall dimensions (approx.): width 21-3/4 in (552 mm), depth 4-7/8 in (124 mm), height 2-5/8 in (67 mm)

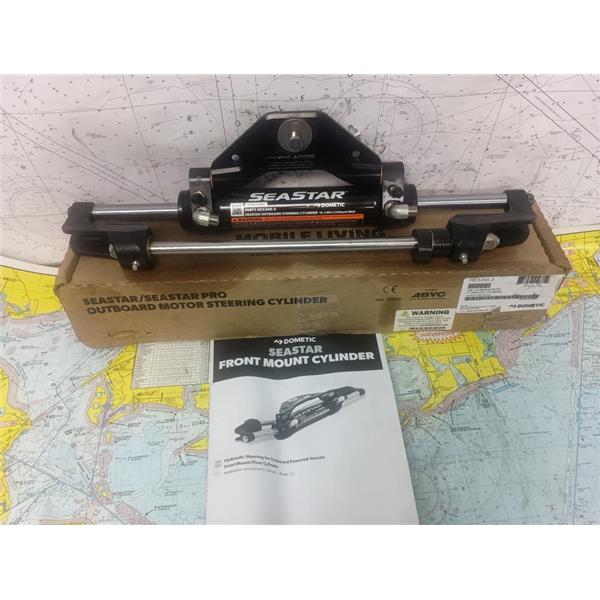

Included in the Box: Complete cylinder with fittings & Instruction Manual
Key Features & Benefits
* Supports Up to 700 HP (Total Power, Counter-Rotating) – Ideal for single, twin, or triple engine setups.
* Independent Engine Tilt – Allows separate engine tilt control on multi-engine installations.
* Robust & Corrosion-Resistant Design – Engineered to withstand repeated compression and harsh marine environments.
* Upgraded Sealing System – New 8-hole end gland design and proprietary sealing system enhance durability and simplify servicing.
* Positionable Stainless ORB Fittings – Upgraded from 1/4" NPT to -5 ORB stainless steel fittings for easier, leak-free installation and improved hose routing.
* Smooth & Responsive Steering – Designed to work with all SeaStar helm pumps, including Power Assist systems.
* Variable Lock-to-Lock Turns – Adjusts with helm selection to deliver a tailored steering response.
Technical Specifications
Direct Replacement for the HC5345 (earlier generation; “-3” adds -5 ORB ports and internal upgrades)
Mount Style: Front Mount, Pivoting
Shaft Diameter: 0.75" (19mm)
Stroke Length: 8.00" (203mm)
Cylinder bore: 1.375 in (~35 mm)
Displacement (fluid volume): 8.34 cu in (136.6 cc)
Ports / fittings: Positionable stainless ORB hose fittings (-5 ORB); do not use NPT
Overall dimensions (approx.): width 21-3/4 in (552 mm), depth 4-7/8 in (124 mm), height 2-5/8 in (67 mm)
Included in the Box: Complete cylinder with fittings & Instruction Manual
Specifications
| Condition | New other (see details) |
|---|---|
| Brand | DOMETIC/SEASTAR |
| Manufacturer Part Number | HC5345-3 |
| Condition Description | SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED |
