Details

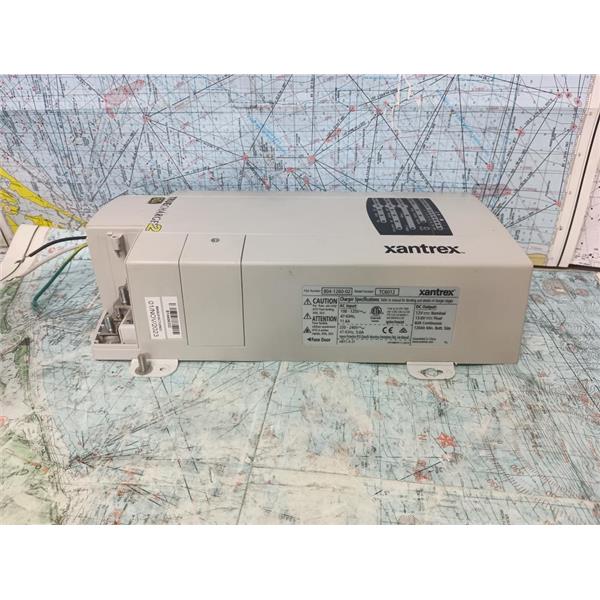

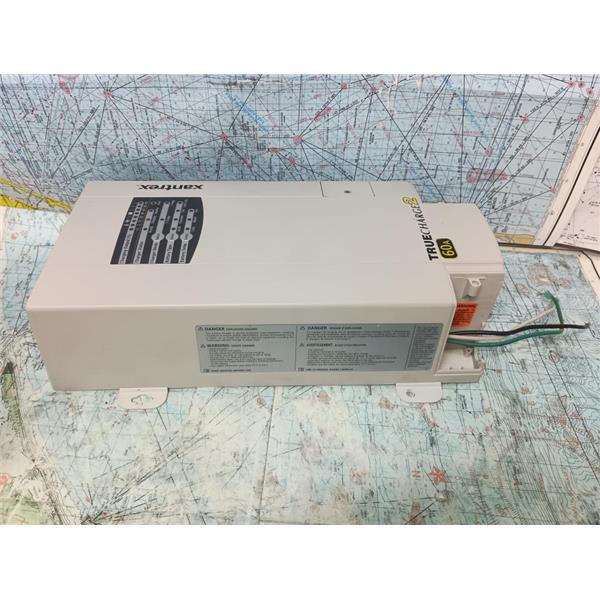

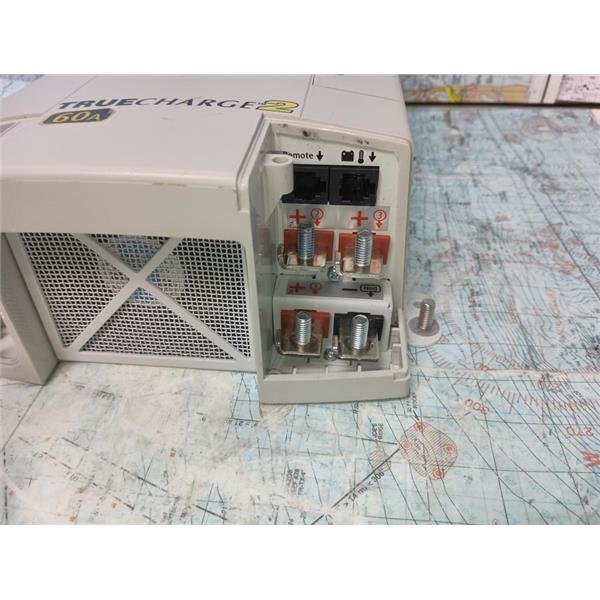

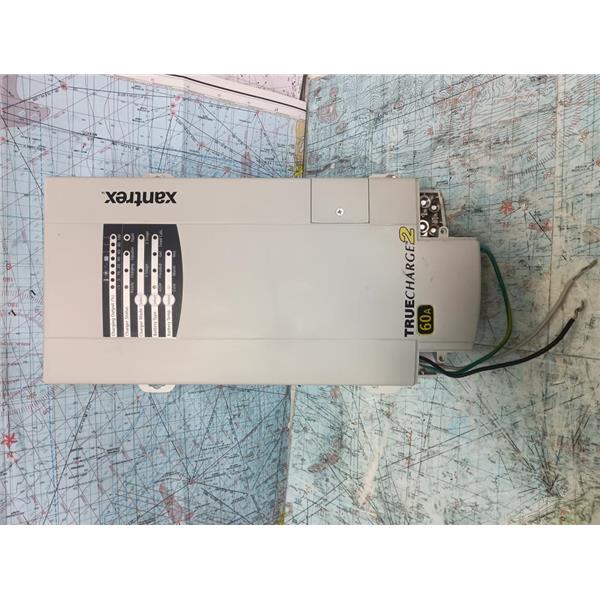

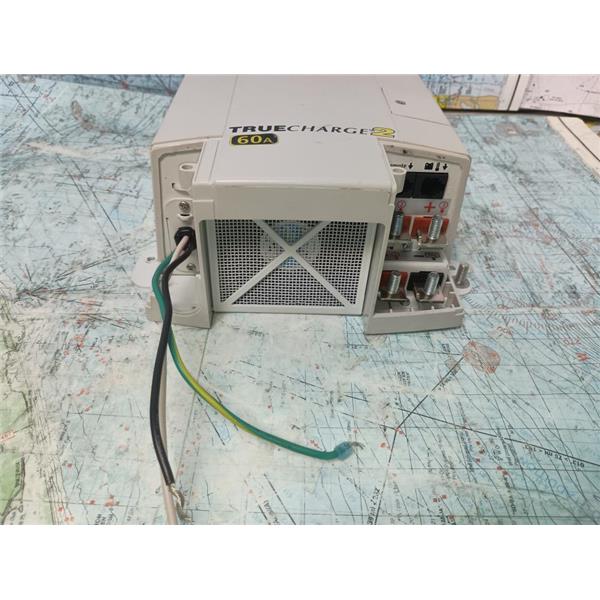

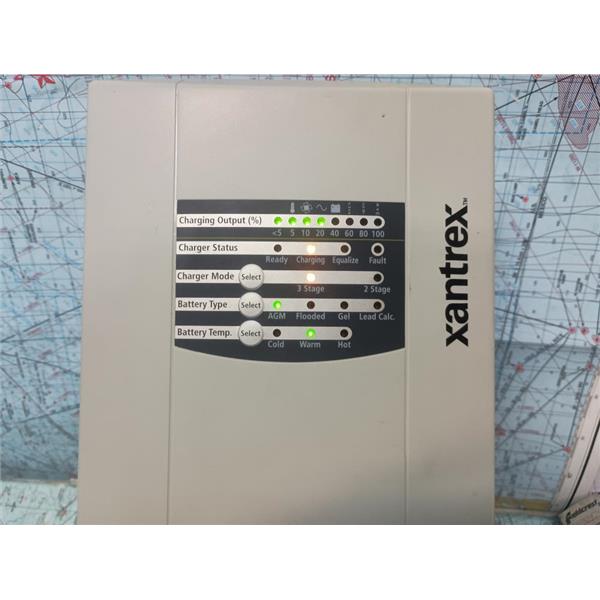

Boaters' Resale Shop of TX 2601 2401 .01 TRUE CHARGE2 60 AMP 12V BATTERY CHARGER BY XANTREX (MODEL TC6012) * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY (HARD-WIRING THE AC INPUT WIRES) WILL BE REQUIRED WHEN SHIPPED * ITEM WAS PREOWNED, USED, IS MISSING THE 4 ORIGINAL BATTERY CHARGING VOLTAGE OUTPUT TERMINALS NUTS, ONE EARTH GROUND TERMINAL NUT & THE CONNECTION TERMINALS COVERS BUT IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, CHARGE VOLTAGE IS PRESENT AT ALL 3 BANKS, BUT HAS NOT BEEN TESTED FURTHER
Xantrex TRUECHARGE2 Series 804-1260-02 60A 12VDC Battery Charger
TRUECHARGE2 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, TRUECHARGE2 battery chargers feature low electrical interference and efficient, power factor corrected multistage charging. Thanks to their inherent drip-proof design characteristics, the TRUECHARGE2 chargers can be mounted in multiple positions.
Designed for recreational and commercial applications worldwide, TRUECHARGE2 accepts 90 - 265 VAC, 47-63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUECHARGE2 60 A 12 V models can be augmented with an optional remote panel. Each models comes with built-in protection against surges and spikes on the AC power line.
TRUECHARGE2 60 A are equipped with parallel stacking feature.
This allows two chargers to work together to combine the output current, achieving up to 120 A for large battery banks.
Settings for two and three-stage charging
Settings for flooded, GEL, AGM or lead-calcium batteries
Ability to charge batteries drained to extremely low voltage
SPEC.
Output Current (Nominal) 60 A
Charge 14.2 - 15.5 VDC
Float 13.4 - 13.8 VDC
Equalize 16 VDC
DC Output Connections Three
* AC Input Voltage 90-265 VAC 47-63 Hz 120 VAC, 230 VAC, 240 VAC nominal
Temperature Compensation Three settings
Charger Efficiency > 80%
Battery Type GEL, Flooded, AGM, Pb-Ca
** Operating Temperature 0°C - 60°C
32°F - 140°F
Storage Temperature -40°C - 80°C
-40°F - 176°F
Battery Connection Three positive terminals & one negative terminal
Dimensions:(H x W x L) 3.5" x 6.7" x 13.4" (90 x 170 x 340 mm)
Weight: 9.9 lbs / 4.5 kg
Xantrex TRUECHARGE2 Series 804-1260-02 60A 12VDC Battery Charger
TRUECHARGE2 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, TRUECHARGE2 battery chargers feature low electrical interference and efficient, power factor corrected multistage charging. Thanks to their inherent drip-proof design characteristics, the TRUECHARGE2 chargers can be mounted in multiple positions.
Designed for recreational and commercial applications worldwide, TRUECHARGE2 accepts 90 - 265 VAC, 47-63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUECHARGE2 60 A 12 V models can be augmented with an optional remote panel. Each models comes with built-in protection against surges and spikes on the AC power line.
TRUECHARGE2 60 A are equipped with parallel stacking feature.
This allows two chargers to work together to combine the output current, achieving up to 120 A for large battery banks.
Settings for two and three-stage charging
Settings for flooded, GEL, AGM or lead-calcium batteries
Ability to charge batteries drained to extremely low voltage
SPEC.
Output Current (Nominal) 60 A
Charge 14.2 - 15.5 VDC
Float 13.4 - 13.8 VDC
Equalize 16 VDC
DC Output Connections Three
* AC Input Voltage 90-265 VAC 47-63 Hz 120 VAC, 230 VAC, 240 VAC nominal
Temperature Compensation Three settings
Charger Efficiency > 80%
Battery Type GEL, Flooded, AGM, Pb-Ca
** Operating Temperature 0°C - 60°C
32°F - 140°F
Storage Temperature -40°C - 80°C
-40°F - 176°F
Battery Connection Three positive terminals & one negative terminal
Dimensions:(H x W x L) 3.5" x 6.7" x 13.4" (90 x 170 x 340 mm)
Weight: 9.9 lbs / 4.5 kg
Specifications
| Condition | Used |
|---|---|
| Brand | XANTREX |
| Manufacturer Part Number | 804-1260-02 |
| Condition Description | SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY (HARD-WIRING THE AC INPUT WIRES) WILL BE REQUIRED WHEN SHIPPED * ITEM WAS PREOWNED, USED, IS MISSING THE 4 ORIGINAL BATTERY CHARGING VOLTAGE OUTPUT TERMINALS NUTS, ONE EARTH GROUND TERMINAL NUT & THE CONNECTION TERMINALS COVERS BUT IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, CHARGE VOLTAGE IS PRESENT AT ALL 3 BANKS, BUT HAS NOT BEEN TESTED FURTHER |
