Boaters' Resale Shop of TX 2604 5501.01 YACHT DEVICES NMEA 2000 USB GATEWAY KIT

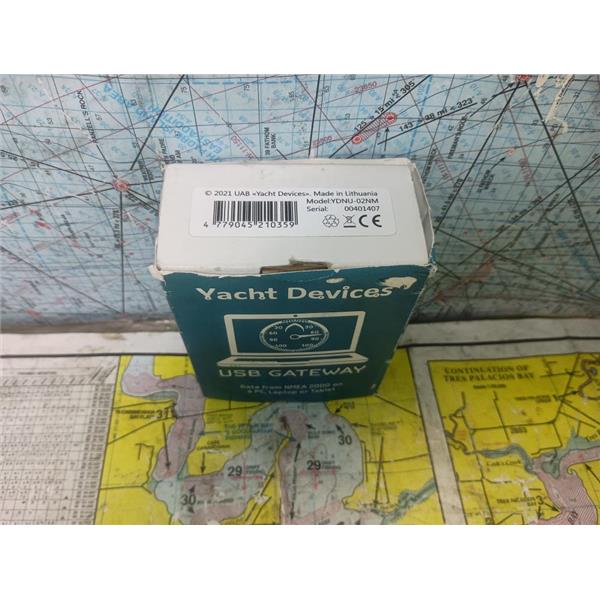

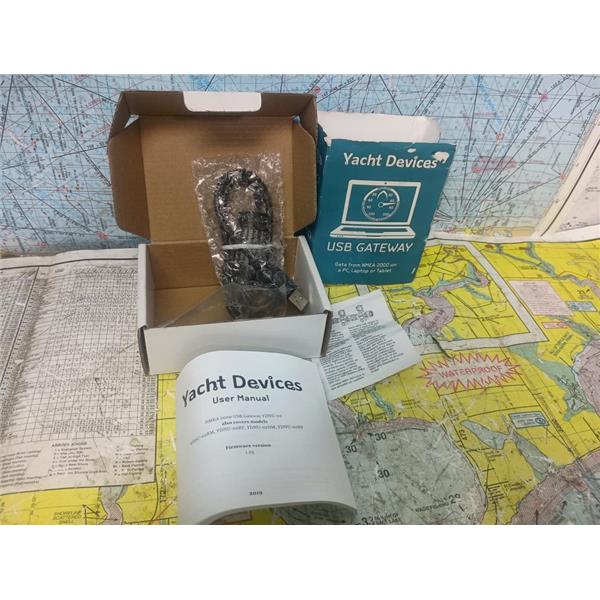

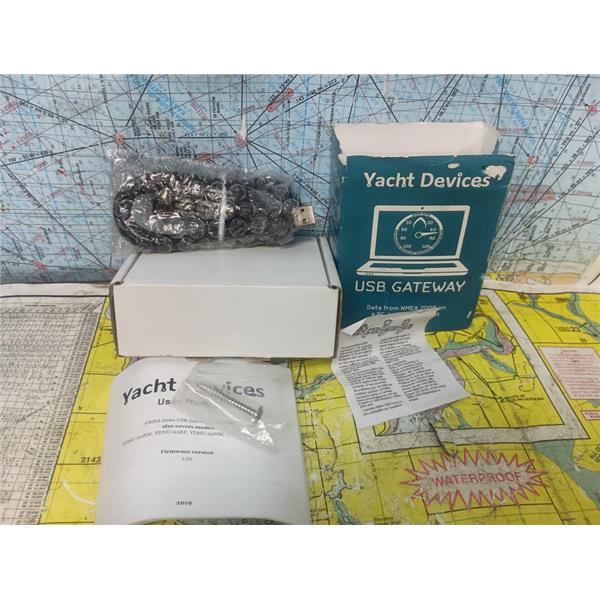

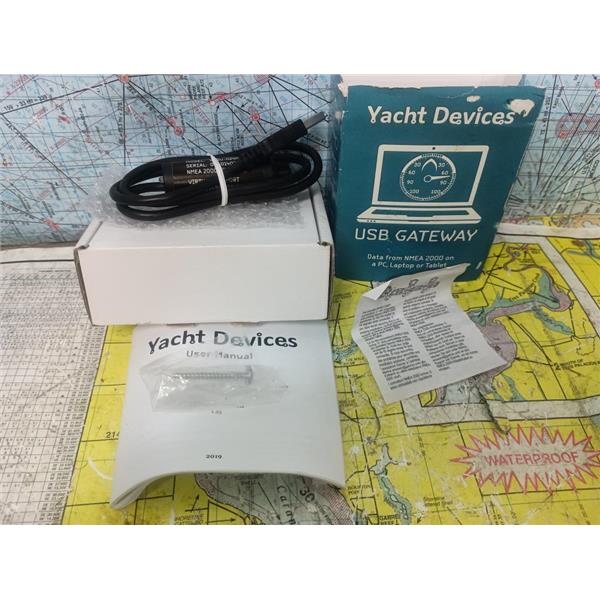

Boaters' Resale Shop of TX 2604 5501.01 YACHT DEVICES NMEA 200 USB GATEWAY YDNU-02NM * SEE ALL 4 PHOTOS & DETAILS  * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED

NMEA 2000 USB Gateway YDNU-02
The gateway allows you to see data from a NMEA 2000 marine digital network on a PC, laptop or tablet PC with Microsoft Windows, Mac OS or Linux. With it, you get marine network data including vessel course, speed, position, wind speed and direction, water depth, AIS messages from vessels and aircrafts and other navigation data in PC applications like OpenCPN, Expedition, Coastal Explorer, Polar View, OpenSkipper, etc.

The device works as a bi-directional gateway so it is also possible to send messages from PC applications to the NMEA 2000 network. That allows, for example, sending of AIS data from a PC USB receiver to a chart plotter, as well as control over the autopilot and the vessel's other equipment. It also supports using a PC as an 0183 to NMEA 2000 converter if you have some NMEA 0183 equipment connected to one of the other PC ports.
The Device does not require any special software. You can select the preferred operation mode or initiate recording of diagnostics data using an operation system command line. To update the firmware, you just need to send an update file to the Device's port with a "copy" (MS-DOS and Microsoft Windows) or "cp" (Linux and Mac OS X) command. With any terminal program, you can get access to a service menu, where you can configure filters for received and transmitted messages and tune some other settings.

The Gateway:
can duplicate or replace broken or complement obsolete instruments;
can pass any message (including proprietary) between NMEA 2000 and a PC application in N2K and RAW modes;
in 0183 mode, provides compatibility with very old marine applications;
allows to control Raymarine SeaTalk NG autopilots from NMEA 0183;
is compatible with NMEA 2000, J1939 and Volvo Penta EVC networks;
can be used in any operation system and does not require special driver software;
all protocols are open and described in this Manual;
supports firmware updates and diagnostic data recording;
free diagnostic software for Microsoft Windows, Mac OS X and Linux is supplied;
provides high-voltage galvanic isolation between NMEA 2000 and USB interfaces;
employs an IP67 waterproof USB connector (not in all models) for use outside.
