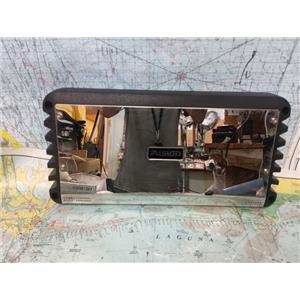

Boaters' Resale Shop of TX 2605 2304.61 FUSION MARINE 1500W AMPLIFIER SG-DA61500

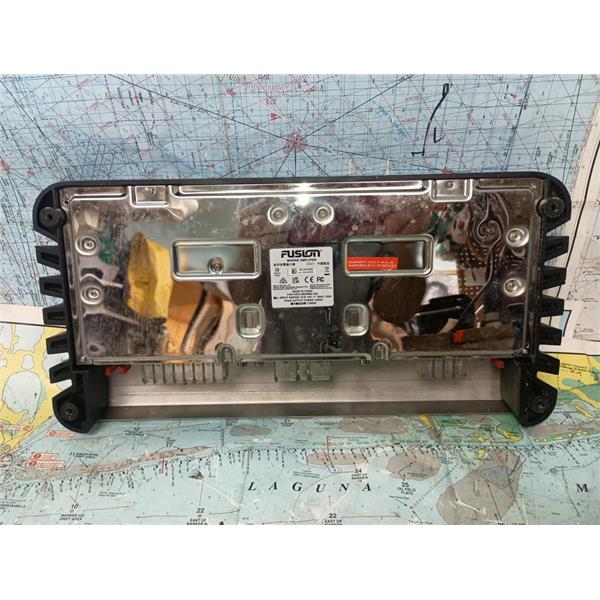

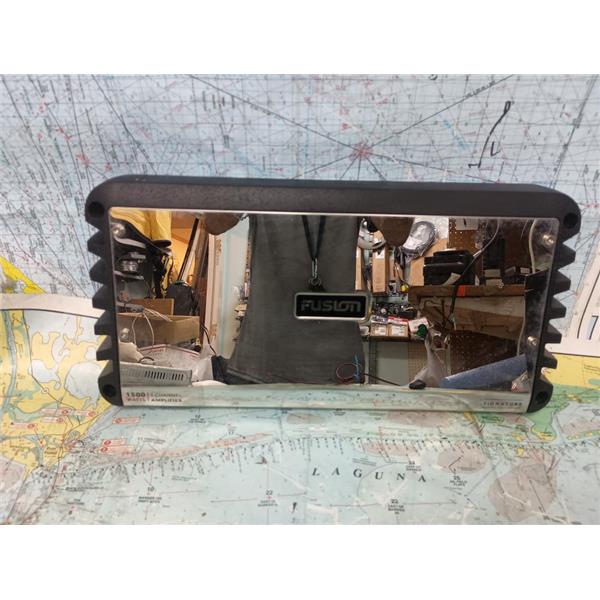

Boaters' Resale Shop of TX 2605 2304.61 FUSION MARINE 1500W AMPLIFIER SG-DA61500 * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY WILL BE REQUIRED *  ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, POWERS UP AND HAS AUDIO OUTPUT ON ALL CHANNELS BUT HAS NOT BEEN TESTED FURTHER


Fusion SG-DA61500Signature Series 6-channel marine amplifier — 100 watts RMS x 6
Product highlights
Product info:

6-channel marine amplifier
100 watts RMS x 6 at 4 ohms
140 watts RMS x 6 at 2 ohms
280 watts RMS x 3 at 4 ohms bridged
variable low- and high-pass filters (32-320 Hz, 12 dB/octave)
variable bass boost (0-9 dB at 45 Hz) on zone 3 channels
conformal-coated circuit board
weather-resistant construction
wiring and hardware not included with amplifier
4-gauge power and ground leads recommended
fuse rating: 40A x 3
dimensions: 16-5/8"W x 2-3/16"H x 8-5/16"D

Features

Marine Amplifier: The Fusion SG-DA61500 six-channel marine amplifier is effectively three full range 2-channel amps built into one chassis. Each pair of channels is independently bridgeable, so the amp can be wired as 6-channel, 5-channel, 4-channel, or 3-channel. Each 2-channel section of the amp (inputs, outputs and controls) is labeled as a zone; Zone 1, Zone 2, and Zone 3. The amp's conformal-coated PCB (printed circuit board) protects it against the harsh marine environment. The amp's removable stainless steel top cover protects the control panel on top and the connection panel on the side. Its one-piece die-cast heat sink helps to dissipate heat from the internal components to provide greater reliability and longer sustained power output.

Class-D Amplifier Technology: The SG-DA61500 features a high efficiency Class-D design with these output specifications (14.4 volt power supply, <1% THD+N):

Power:
4Ω: 100 watts RMS x 6
2Ω: 140 watts RMS x 6
Bridged (4Ω): 280 watts RMS x 3
Signal to Noise Ratio:
@ Rated Power: 85 dB (4Ω)
@ 1 Watt: 53.1 dB (4Ω)

Protection Circuitry: The amp is equipped with circuitry to keep it operating safely. The circuitry protects against overheating (thermal), reversed power polarity, over/under voltage, and short circuited output conditions.




































































































































































































































































































RCA Inputs: three pair of stereo RCA inputs; Zone 1, Zone 2, and Zone 3
Speaker Outputs: six pair of set-screw terminals; the terminals will accept up to 10-gauge wire; the included 2.5mm Allen wrench is used to tighten/loosen the set screws
Power: set-screw terminal; accepts up to 1/0-gauge wire; the included 3mm Allen wrench is used to tighten/loosen the set screws
Ground: set-screw terminal; accepts up to 1/0-gauge wire; the included 3mm Allen wrench is used to tighten/loosen the set screws
Remote Turn-on: set-screw terminal; accepts up to 10-gauge wire; the included 2.5mm Allen wrench is used to tighten/loosen the set screws

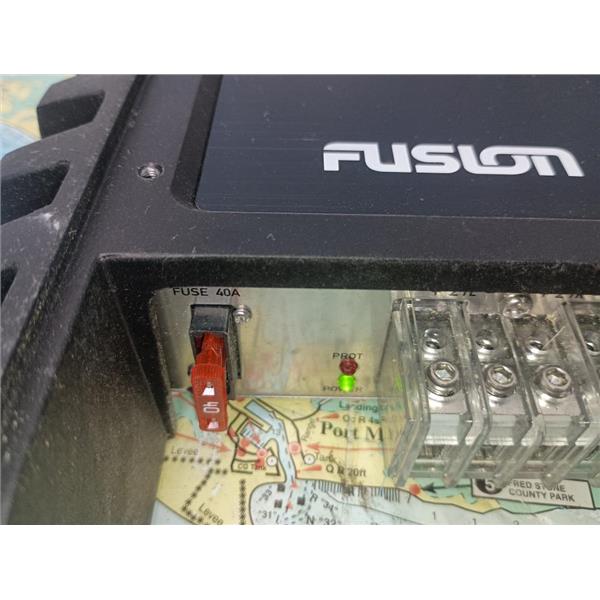

Fuses: three 40-amp ATC fuses are mounted on the side of the amp

Controls: There are independent controls for each zone, located on the top panel under the removable stainless steel cover. (A 3mm Allen wrench is included to remove the cover screws.) A flat-head screwdriver (not included) is required to adjust the rotary controls. The controls include:

Level: rotary controls; continuously variable from 300mV to 8V (RMS)
Crossover Frequency: rotary controls; continuously variable from 32 Hz to 320 Hz
Crossover Selector: 3-position switches; select low-pass, high-pass, or full range (crossover bypassed)
Bass Boost: rotary control for Zone 3 only; variable from 0 to +12dB, centered at 45 Hz
