Boaters' Resale Shop of TX 2705 2455.15 VP MUFFLER w 1.75" SIDE IN/TOP OUT PORTS

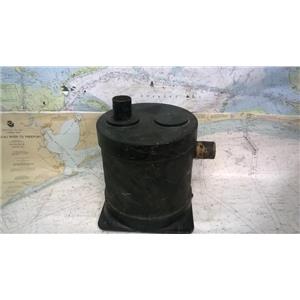

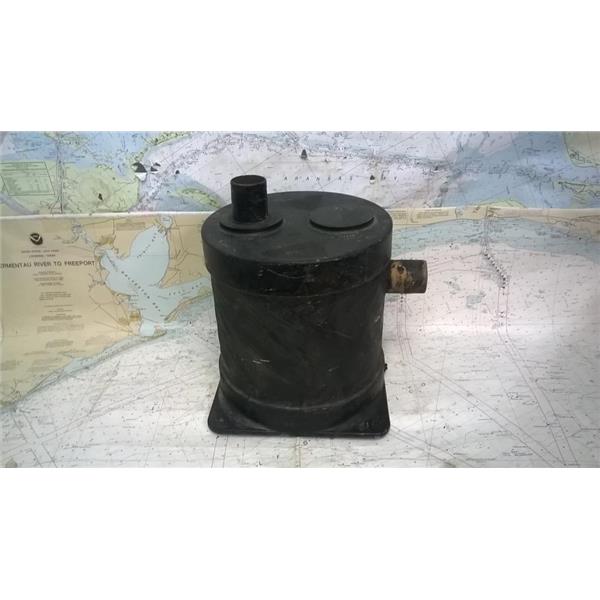

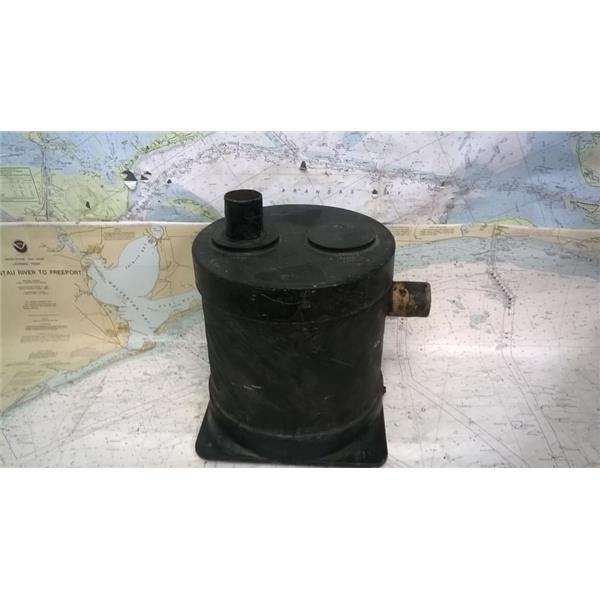

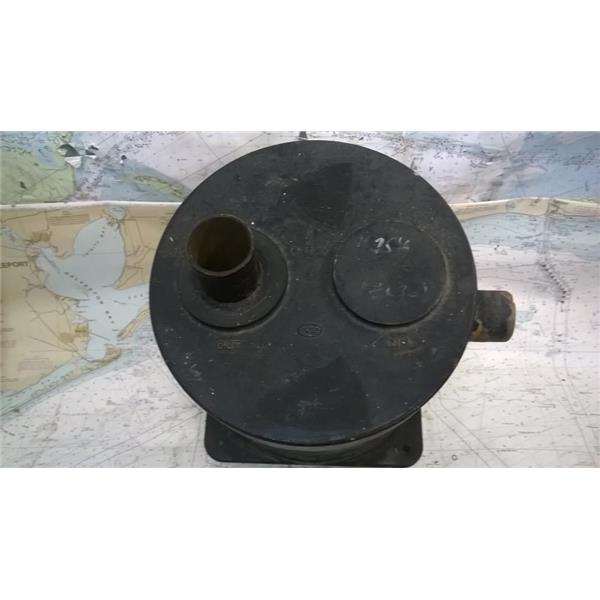

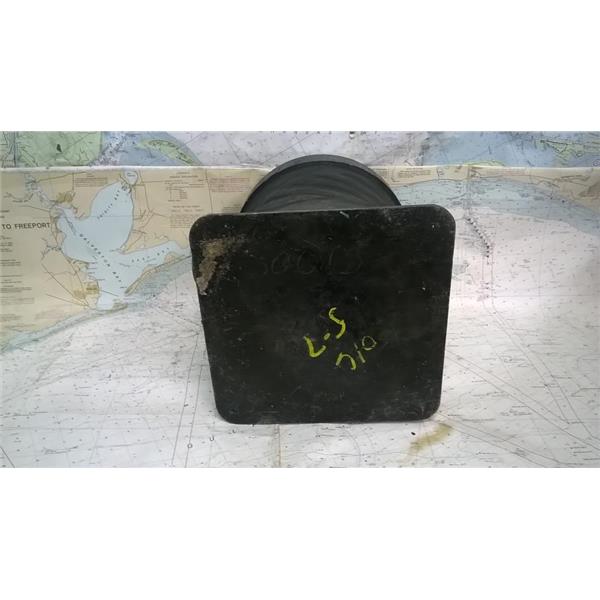

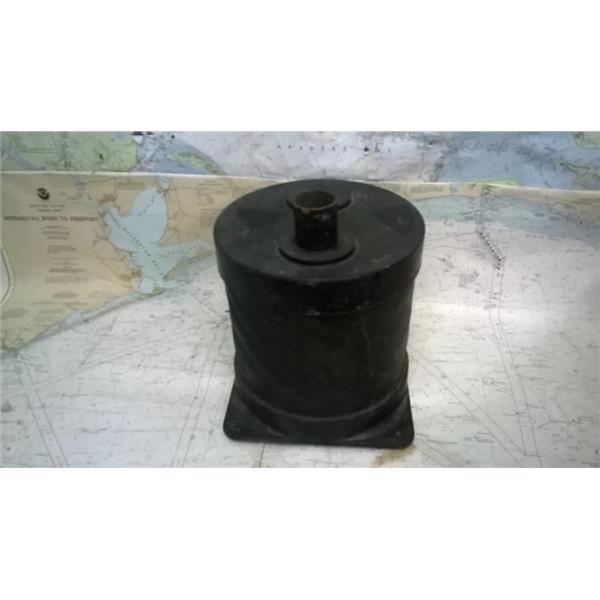

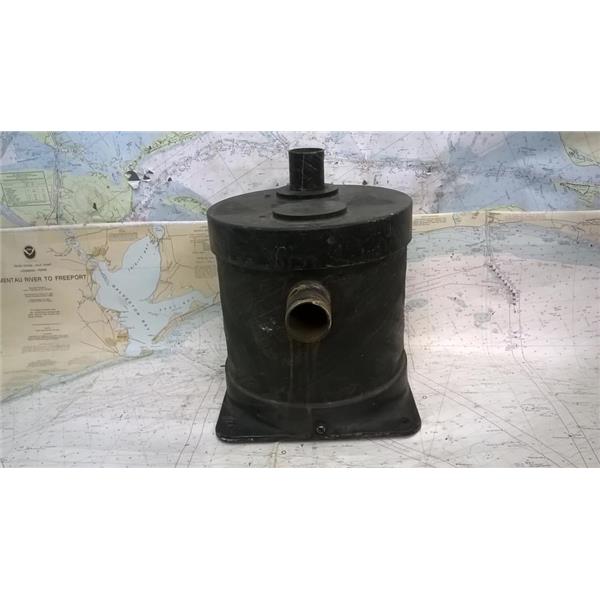

Boaters' Resale Shop of TX 2705 2455.15 VP MUFFLER w 1.75" SIDE IN/TOP OUT PORTS * VERNALIFT MODEL 699A MARINE WET EXHAUST MUFFLER with APPROX. 1.75" SIDE IN/TOP OUT HOSE PORTS * SEE ALL 6 PHOTOS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER

APPROX. DIMENSIONS:
* 1.75" SIDE IN/TOP OUT HOSE PORTS
* APPROX. TOP DIAMETER: 10"
* APPROX. BASE DIMENSIONS: 10" x 10"
* APPROX. OVERALL HEIGHT: 12.5"
* APPROX. OVERALL WIDTH: 13"
* APPROX. OVERALL DEPTH: 10.25"
* APPROX. WEIGHT: 9.5 LBS.

Description:
Compact Vernalift muffler was designed for sailboat auxiliary propulsion engines installed near or below the water line.
"lift mufflers", incorporating an internal design which helps force the water out of the muffler without filling it, while markedly reducing exhaust noise.
If the engine exhaust manifold is near or below the waterline, a siphon break must be installed in the water supply line to prevent continued water flow after the engine is shut down.
When several body sizes are available, choose the largest that will fit the available space.
The increased volume will help ensure that residual water doesn't enter the engine after shutdown; the longer the exhaust system hoses, the more important this is.

• Applications: powerboat, sailboat and generator engines
• Fuel type: gas or diesel
• Installation: above or below waterline, close to centerline - using proper practices
• Sound rating: better
• All models have square bases
