Boaters' Resale Shop of TX 2307 5141.02 QUICK 25L ROUND WATER HEATER B32512SLV

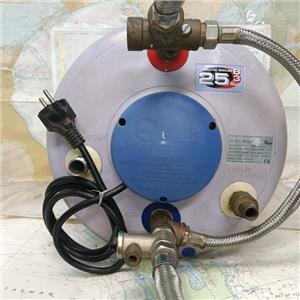

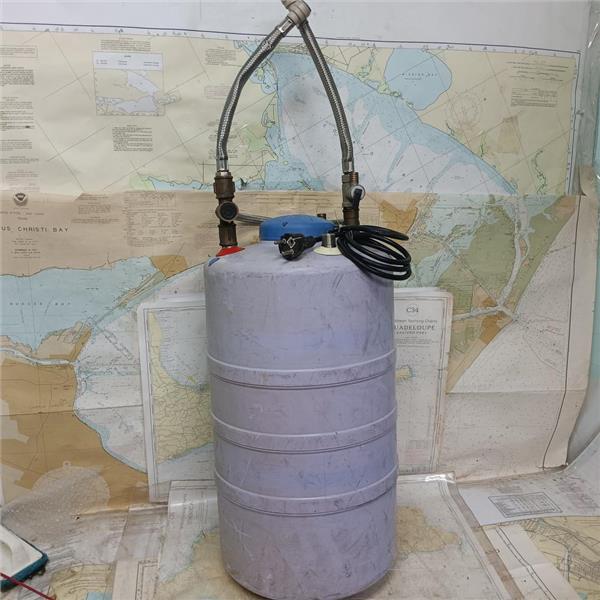

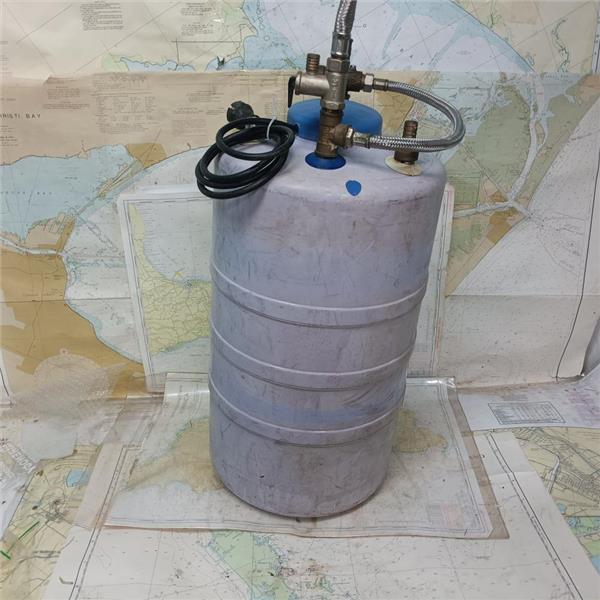

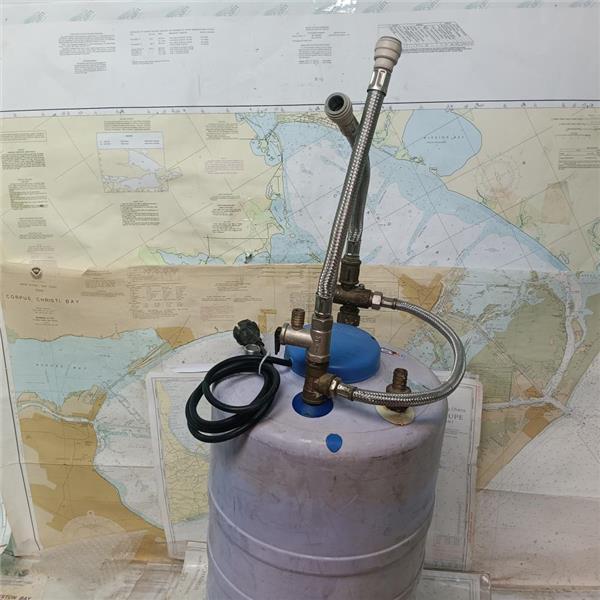

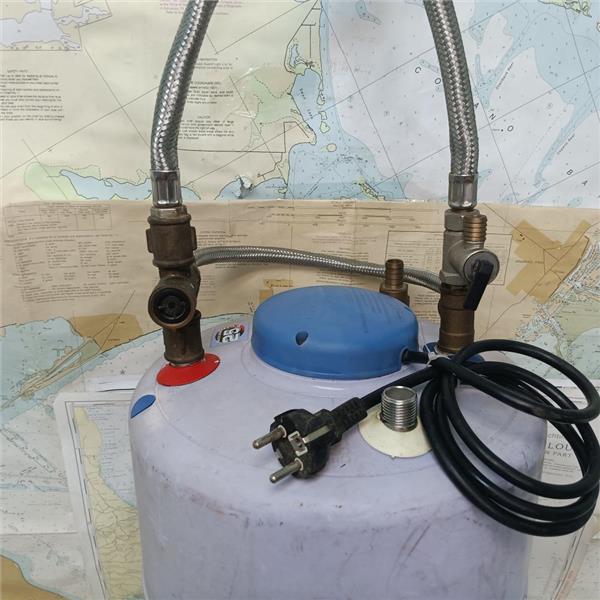

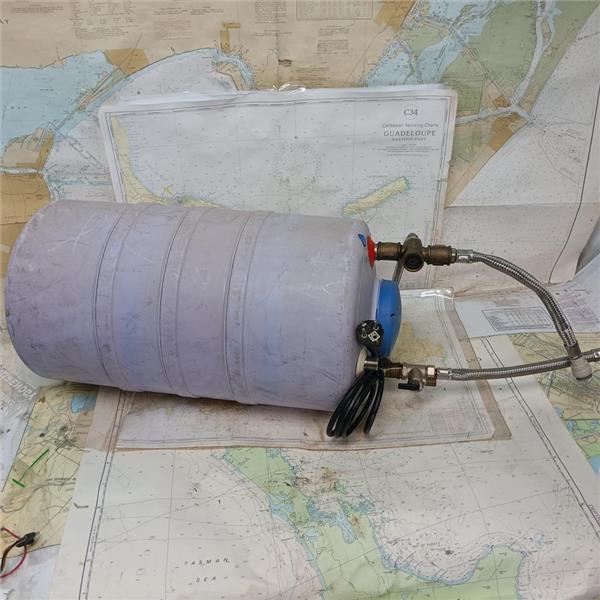

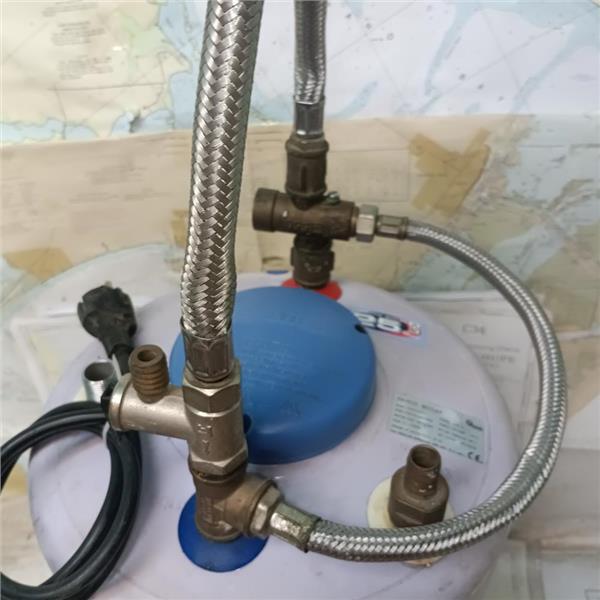

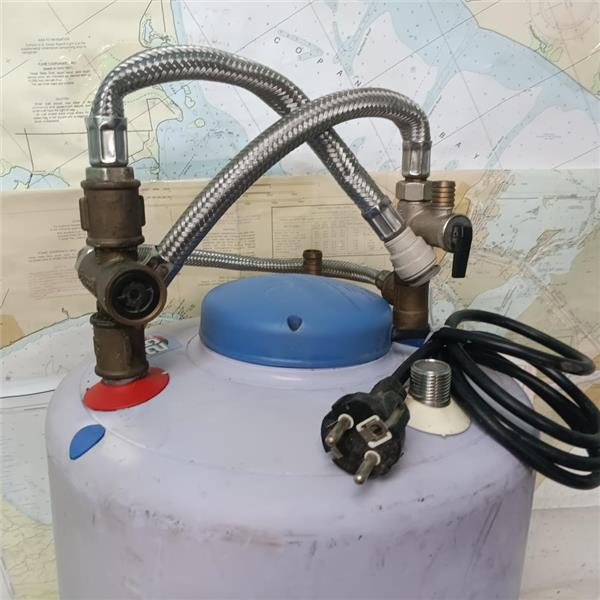

Boaters' Resale Shop of TX 2307 5141.02 QUICK 25L ROUND WATER HEATER B32512SLV with HEAT EXCHANGER * VOLTAGE: 110 VOLTS AC * CAPACITY: 6.6 GALLON (25 LITRES) * WATTAGE: 1200 * SEE ALL 8 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IS IN FAIR NAUTICAL PHYSICAL & WORKING CONDITION, WHEN 110 VOLTS AC ARE APPLIED WATER GETS HOT AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER


The Quick Model B3 is a round water heater that produces water from an incoloy electric heating element that is fitted with an adjustable safety bi-thermostat. This unit is equipped with a heat exchanger composed of AISI 316L stainless steel with a capacity that is notably higher than that achieved from other manufacturers. The interior of the tank is made of 1.5 mm gauge AISI 316 stainless steel welded with Argon shielding gas which enables it to be highly resistant to corrosive agents. The exterior of the tank is composed of a highly durable plastic composite material. The unit has thermal insulation composed of high density polyurethane foam which is injected between the cover and tank thus providing excellent heat retention properties. The B3 unit also comes with adjustable metal brackets which provide more flexibility for mounting when dealing with tight spaces. This unit comes equipped with the Water heater, Mounting Brackets, and 4 brass fittings.
SPECS.
Weight: 19lbs (Empty) 26 lbs
Dimensions: 12" D × 12" W × 34" L
Series: B3 Series with HEAT EXCHANGER
Wattage: 1200W
Voltage: 110
Tank capacity – 25 L
Tank material: Stainless steel
Thermal insulating: Polyurethane foam
External cladding material :Composite
Tank pressure (running test) 800 kPa (1)
Maximum working pressure 600 kPa (1)
Electric element voltage rating (2) 220 Vac ± 10% – (110 Vac ± 10%)
Electric element power: 1200 W [Model 12]
Outputs diameter:/2″
Weight with heat exchanger – 18.7
