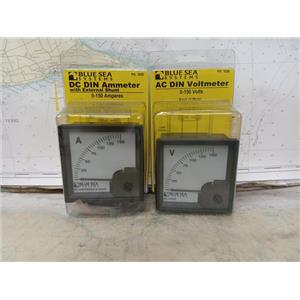

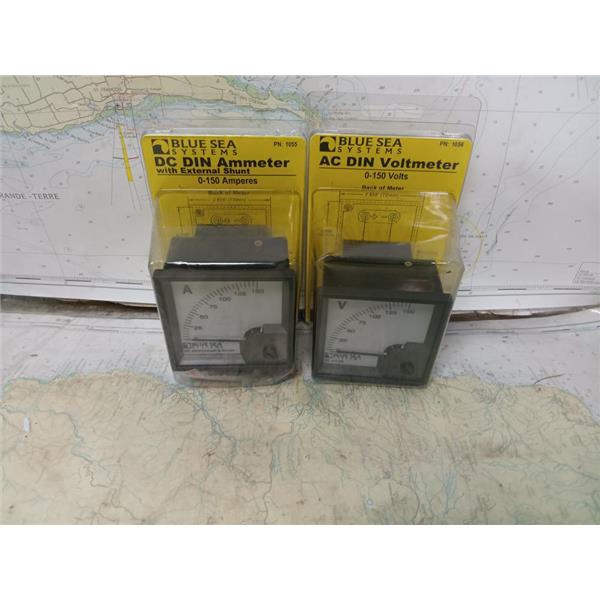

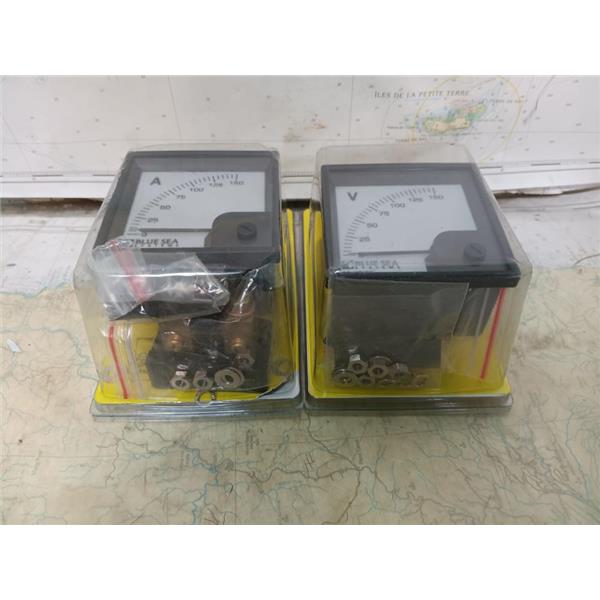

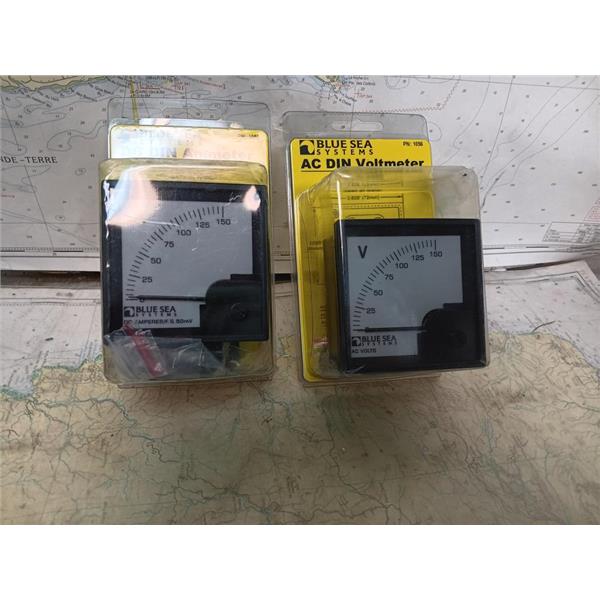

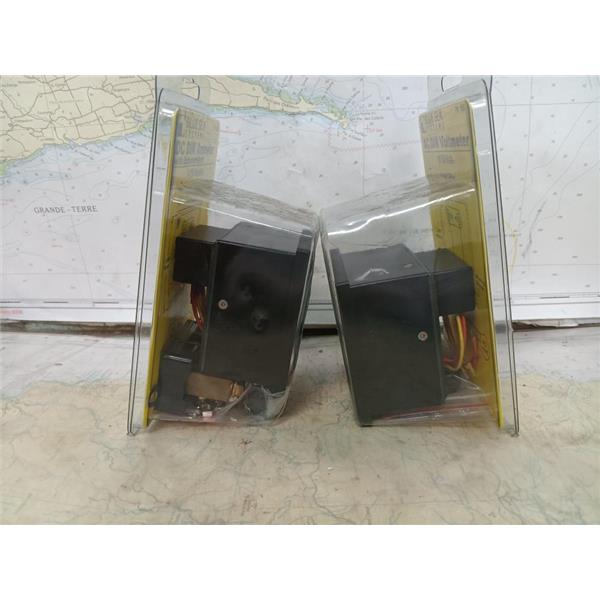

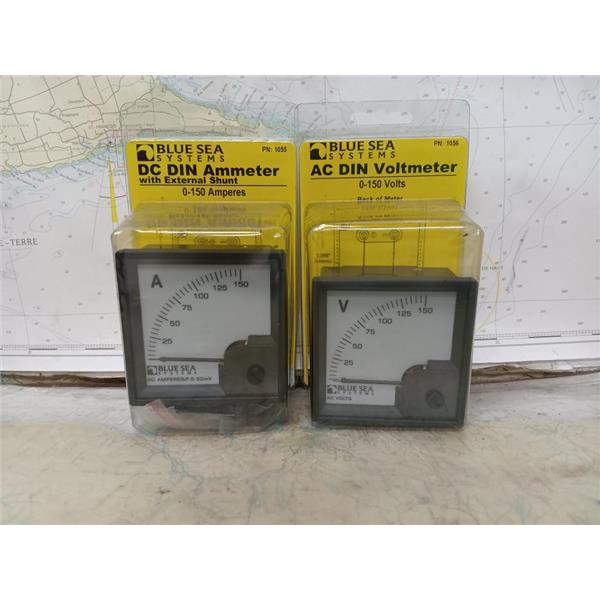

Boaters' Resale Shop of TX 2503 0557.21 BLUE SEA AC/DC DIN METERS 1055 & 1056 SET * INSTRUCTIONS & MOUNTING HARDWARE INCLUDED * Blue Sea Systems 1055 DC DIN AMMETER w EXTERNAL SHUNT & 1056 AC DIN VOLTMETER * SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEMS WERE PREOWNED, IN ORIGINAL PACKAGES, ARE IN GREAT PHYSICAL CONDITION AND APPEAR TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAVE NOT BEEN TESTED

Blue Seas Systems 1056 AC Analog DIN Voltmeter 0-150V
Standard European 72mm design
White matte dial with black printed scale and knife-edge pointer
Backlit meter face (separate 12 or 24V DC backlight connections)
Terminal cover included to prevent accidental short circuit
Includes appropriate external AC current transformer when required

Blue Sea Systems 1055 DC DIN Ammeter - 0-150A with Shunt
Discontinued
Standard European 72mm design
White matte dial with black printed scale and knife-edge pointer
Backlit meter face (separate 12 or 24V DC backlight connections)
Terminal cover included to prevent accidental short circuit
Includes appropriate external DC shunt, when required

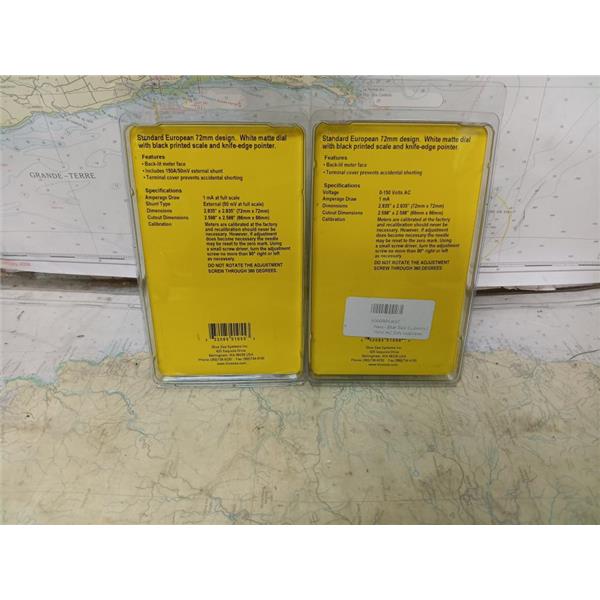

Specifications
Meter Current
Function 0-150A
Backlighting Amperage 16mA @ 12V DC
20mA @ 24V DC
Connection 2 wire from shunt-no other power required
Meter Current 1mA at full scale
Shunt Type External 50mV@full scale
