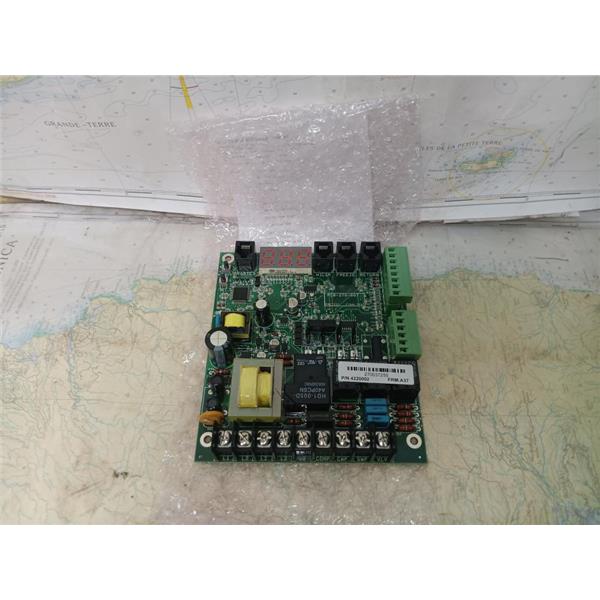

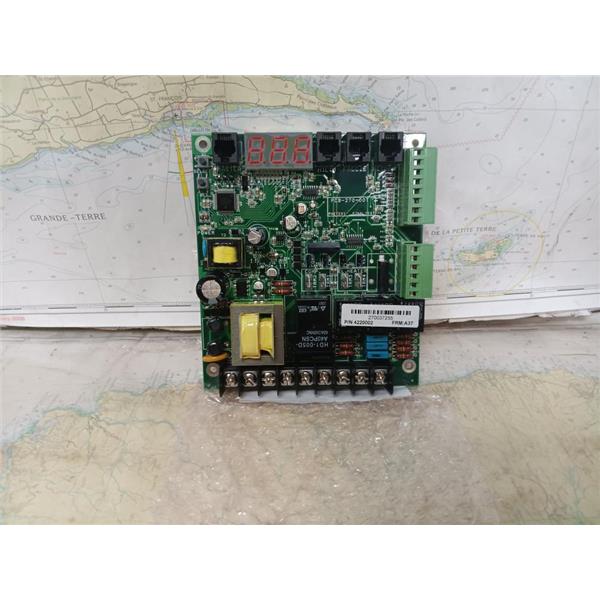

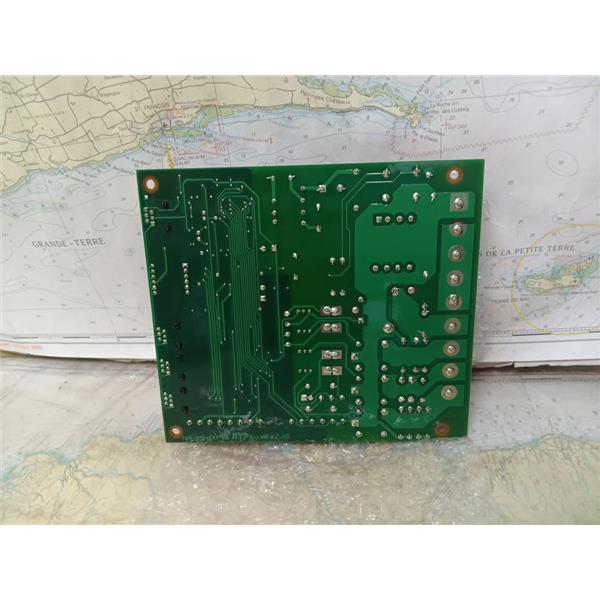

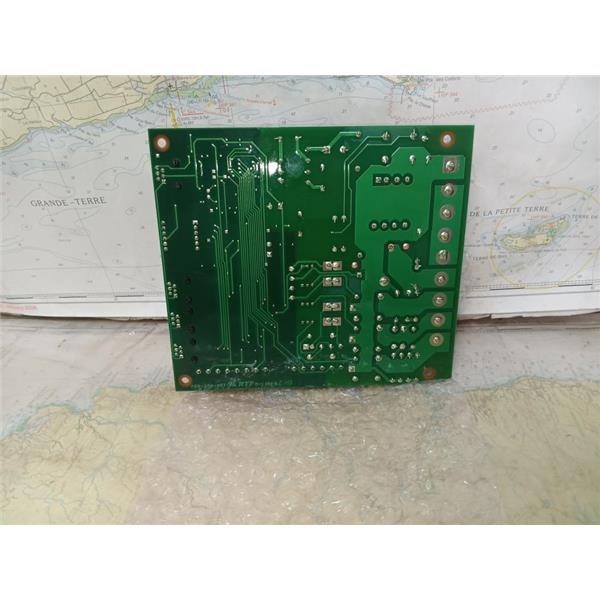

DOMETIC 115/230V AC PC BOARD OLD#4220002
The MCC Control Board is a fully-compatible replacement for the DDC control board, offered with some Marine Air / Dometic Systems® chillers. MCC is a complete, standalone chiller controller. In addition, up to 6 MCC control boards can be networked together using the MCC Master control board to operate a large, multi-stage chiller system.
Marine Air Systems and DDC are a registered trademarks of Dometic Corporation.
Key Features
• SMT (surface mount technology) reduces component size and frees up space for hardware improvements.
• New AC Voltmeter (± 2 volt accuracy) for brownout protection.
• Low Freon Pressure Failsafe locks out after four (4) consecutive faults.
• Pilot duty relays for compressor and heater outputs when the load requires contactors.
• “Euro signal terminals” ease wiring and reduces board space requirements.
• User-friendly push button programming interface replaces the trim pots and allows parameter viewing without disrupting settings.
• Universal 115/220-volt switch mode power supply eliminates large AC transformer, requires less board space and improves 115-volt brownout operation.
• Independent Freeze-Stat and High-Pressure failsafe hardware for protection during Bimini Jumper operation.
Specifications
| Condition | New other (see details) |
|---|---|
| Brand | DOMETIC/CRUISAIR |
| Manufacturer Part Number | 4220002 |
| Condition Description | SEE ALL 6 PHOTOS & DETAILS * SOLD AS PICTURED * ITEM WAS PREOWNED, IN ORIGINAL PACKING, GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED |
