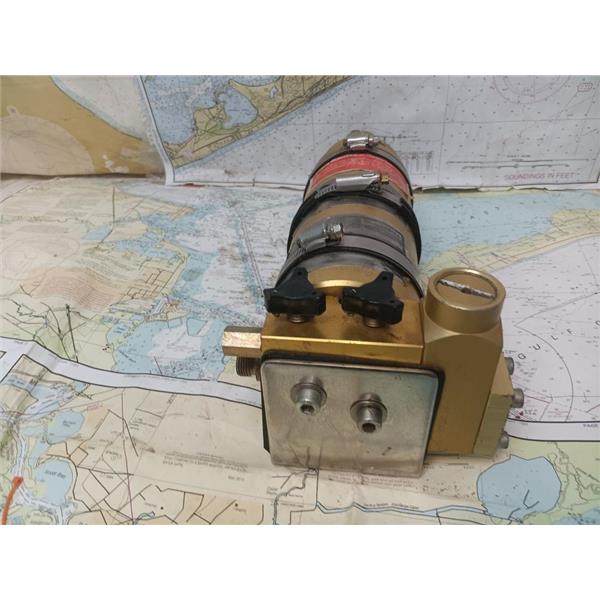

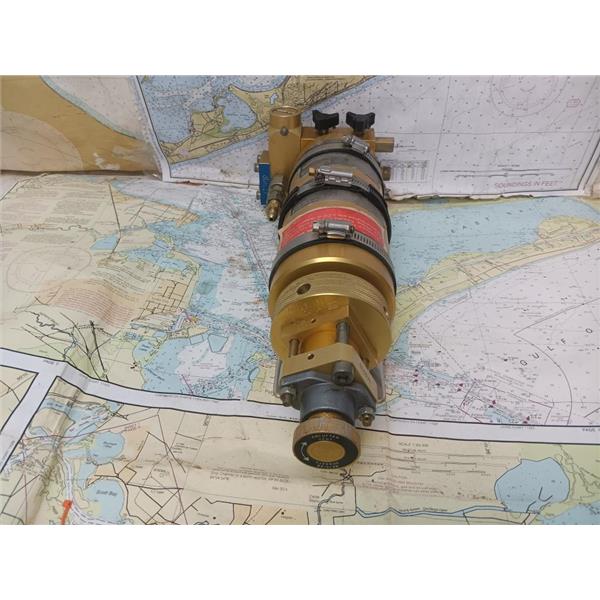

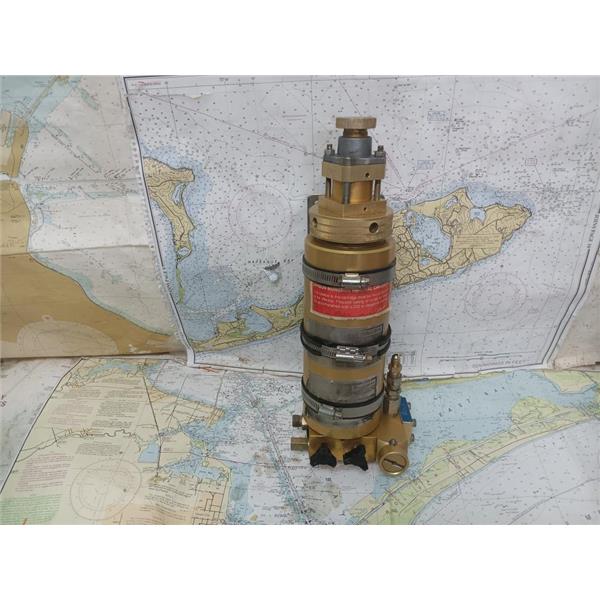

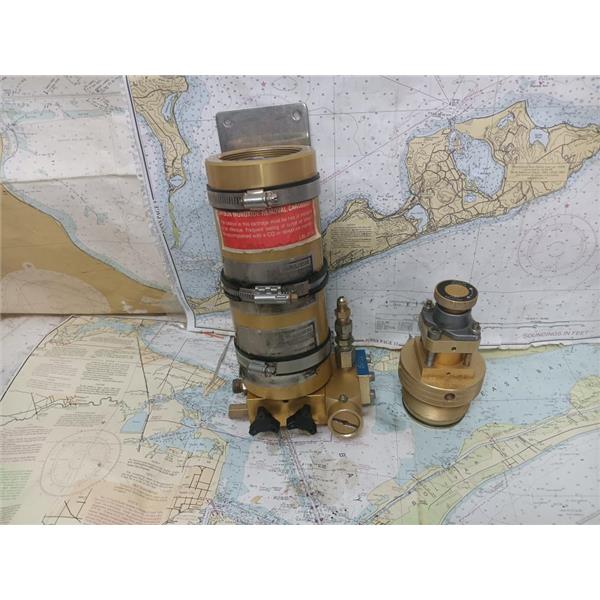

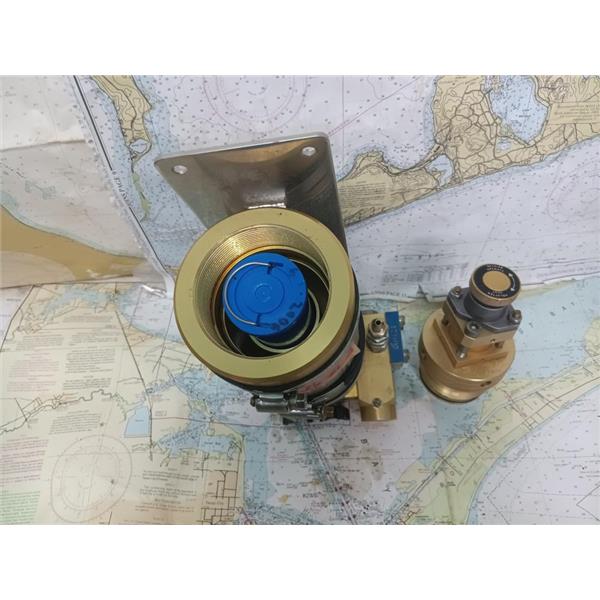

Boaters' Resale Shop of TX 2504 1147.85 BAUER TRIPLEX PURIFICATION ASSEMBLY

Boaters' Resale Shop of TX 2504 1147.85 BAUER TRIPLEX PURIFICATION ASSEMBLY * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, SHOWS TYPICAL SIGNS OF WEAR FROM USE AND WEATHER (MINOR STAINS & CORROSION) BUT IS IN FAIRLY GOOD NAUTICAL PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT IS UNABLE TO BE PROPERLY TESTED

APPROX. OVERALL DIMENSIONS:

* DEPTH: 5"
* WIDTH: 6.5"
* HEIGHT:15.5"
* WEIGHT: 11.6LBS

Product Description
BAUER TRIPLEX filter system (Known as P0 in the USA and P21 in Europe)is a filtration process for smaller compressors.
It is standard on BAUER models JUNIOR and OCEANUS as well as many CAPITANO and MARINER models.
This single tower incorporates many important functions.
First it incorporates the final stage separator to remove moisture before the air enters the filtration cartridge.
Secondly, the filter cartridge then process the air to grade “E” breathing air with use of the 059183 cartridge.
Additionally this filter system also includes a final stage relief valve and a priority (back pressure) valve on the discharge.
This filtration system is sized to process 3200 CF of air between cartridge changes at 68 degrees.
It is an ideal size system for compressors that are 5 or less horsepower.
