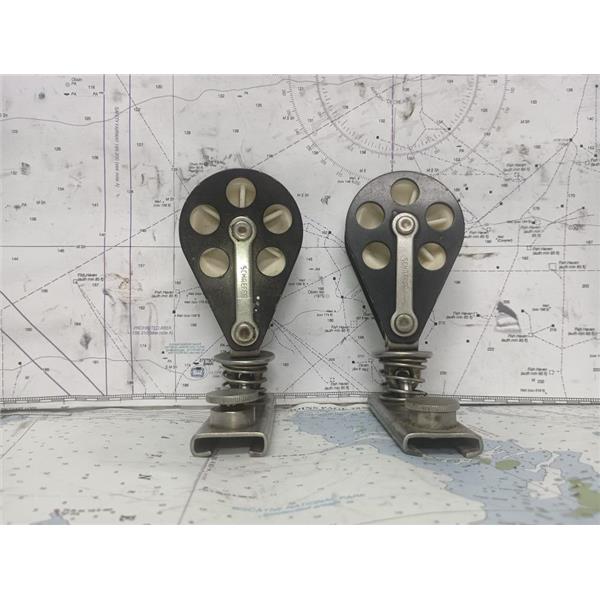

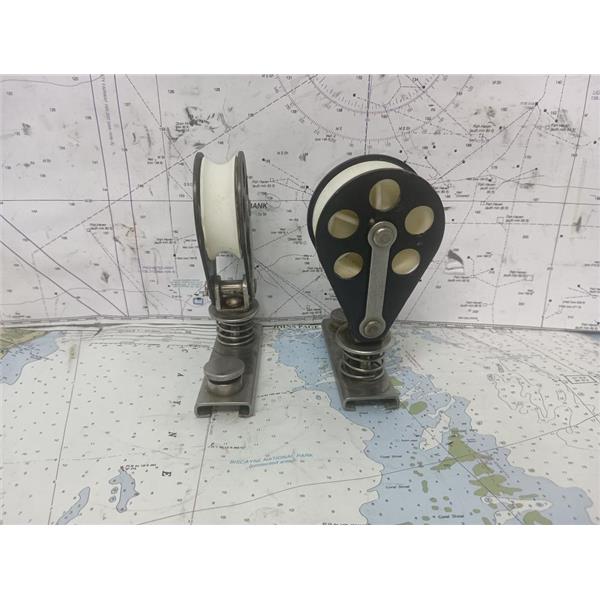

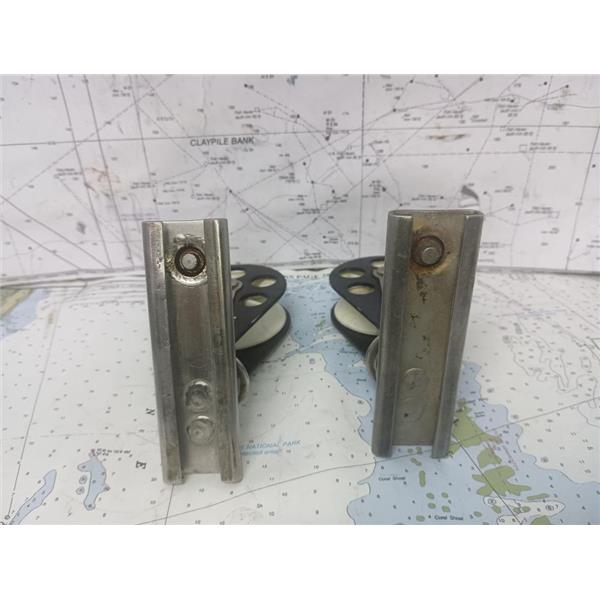

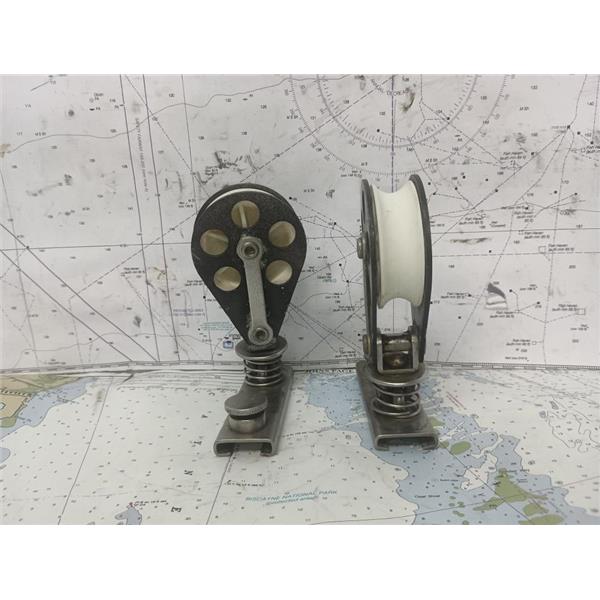

Boaters' Resale Shop of TX 2506 0701.91 PAIR OF SCHAEFER 1" TRACK CARS w BLOCKS (504-82) * SEE ALL 5 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IS IN FAIR PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER
Schaefer 504-82 is a spring-loaded, genoa block slider car for boats up to approximately 27' in length overall, with a displacement of 5,000 pounds and a maximum of 315 sq. ft of sail area.
Fits Track Size: 1" x 1/8" (25 mm x 3 mm)
Sheave diameter: 2" (51 mm)
Maximum line diameter: 7/16" (11 mm)
Length: 3" (76 mm)
Width: 1-1/4" (31 mm)
Height: 4-5/32" (105 mm)
Bearing height: 2-7/32" (56 mm)
Safe working load: 1,750 lbs. (795 kg)
Weight 7.0 oz. (198 g)
Schaefer 504-82 is a spring-loaded, genoa block slider car for boats up to approximately 27' in length overall, with a displacement of 5,000 pounds and a maximum of 315 sq. ft of sail area.
Fits Track Size: 1" x 1/8" (25 mm x 3 mm)
Sheave diameter: 2" (51 mm)
Maximum line diameter: 7/16" (11 mm)
Length: 3" (76 mm)
Width: 1-1/4" (31 mm)
Height: 4-5/32" (105 mm)
Bearing height: 2-7/32" (56 mm)
Safe working load: 1,750 lbs. (795 kg)
Weight 7.0 oz. (198 g)
Specifications
| Condition | Used |
|---|---|
| Brand | SCHAEFER MARINE |
| Manufacturer Part Number | 504-82 |
| Condition Description | SEE ALL 5 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IS IN FAIR PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER |
