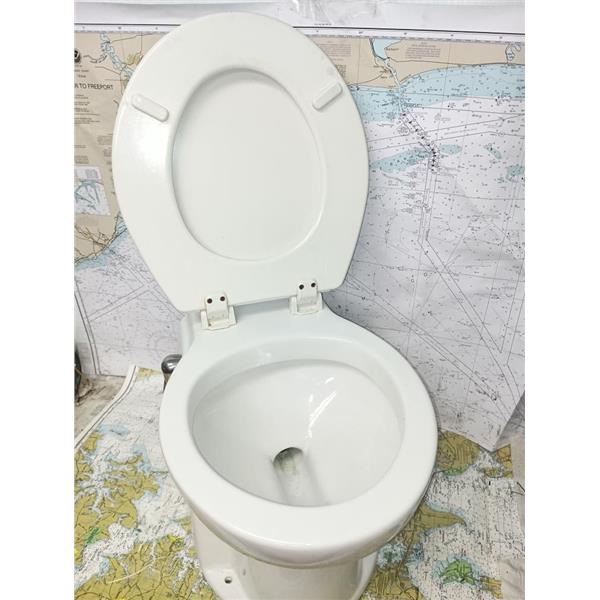

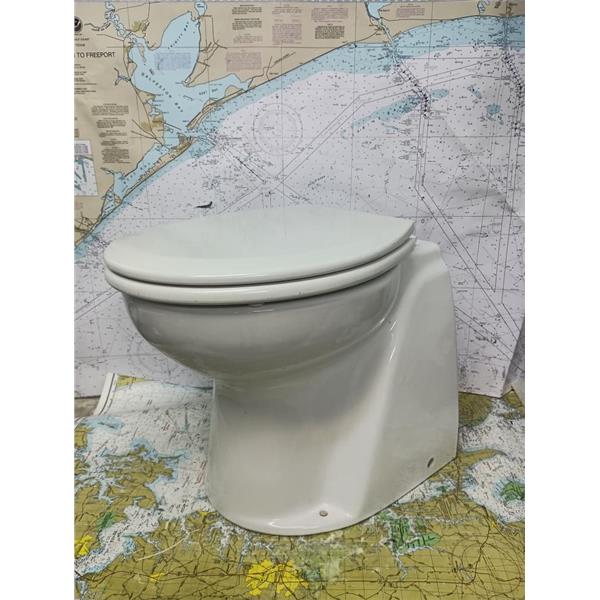

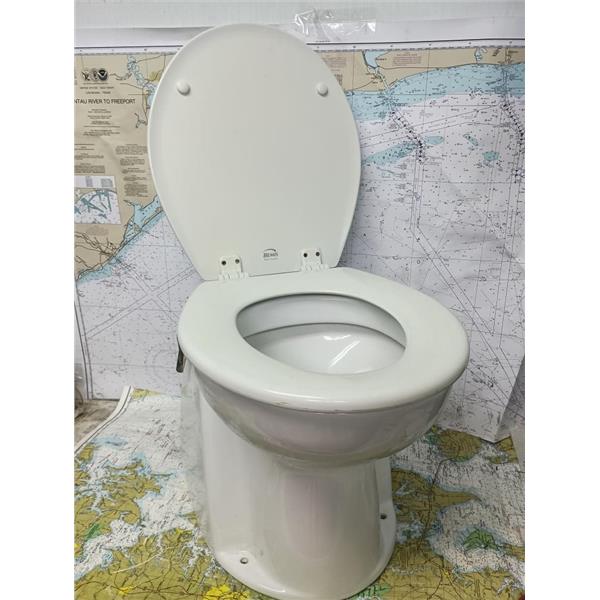

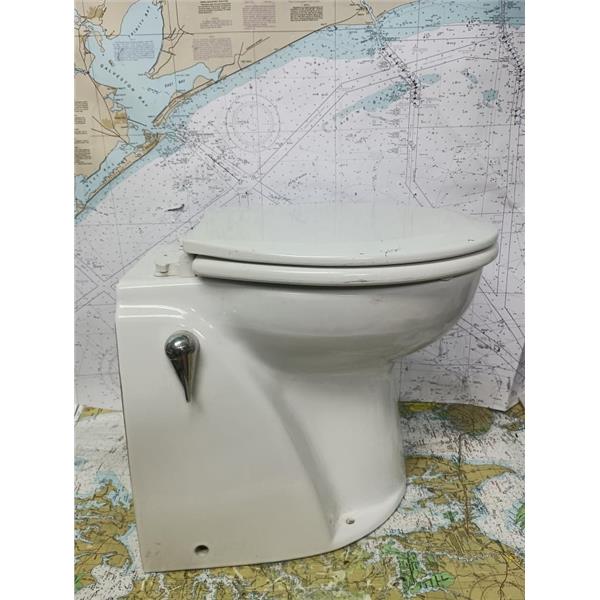

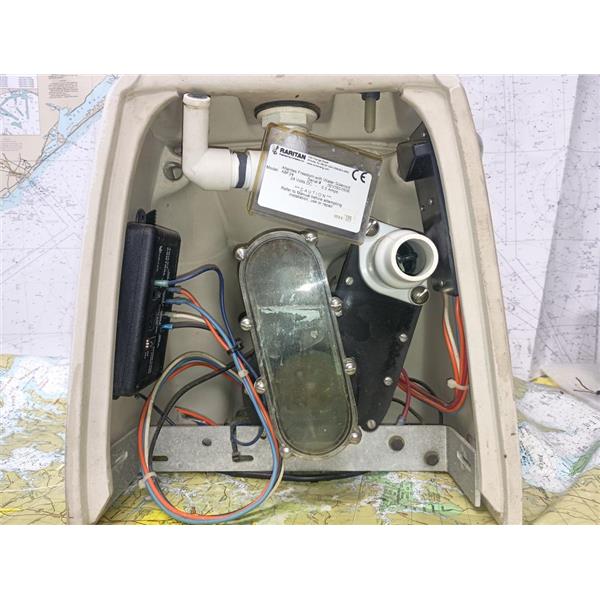

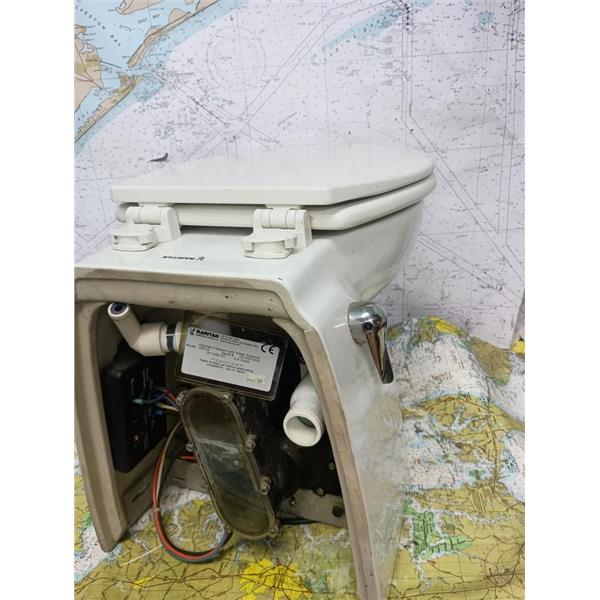

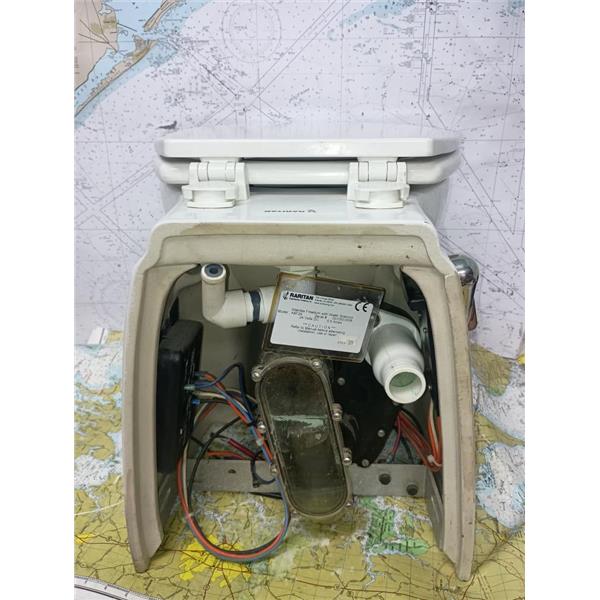

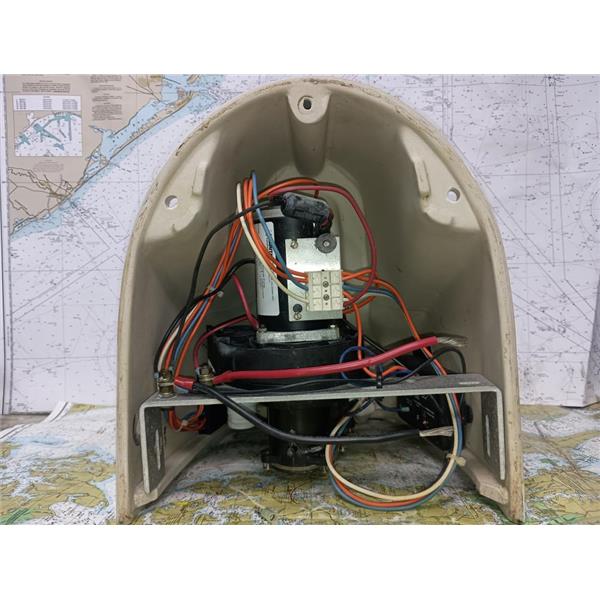

Boaters' Resale Shop of TX 2507 1901.05 RARITAN ELECTRIC 24V MARINE TOILET ABF24 * SEE ALL 8 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY WILL BE REQUIRED (WIRING & HOSES)* ITEM WAS PREOWNED, USED, SHOWS TYPICAL SIGNS OF WEAR FROM USE AND WEATHER (MINOR STAINS) BUT IS IN FAIRLY GOOD NAUTICAL PHYSICAL CONDITION AND MOTOR POWERS UP & PUMP HAS SUCTION WHEN DC VOLTAGE IS APPLIED AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER
Raritan Atlantes Freedom (Household) 24 Volt Toilet For Boats Model ABF24
The Atlantes was one of the first toilets to incorporate the idea of having all components mounted within the bowl. The idea behind the Atlantes was to offer a metal handle on the side of the bowl to make the marine bathroom less intimidating for those not used to being on a boat. We offer the metal handle with many options but most people understand they simply need to push it to have the toilet flush. The head area of any boat can be very daunting for those not familiar with how the toilets work. By offering a handle on the side of the bowl your guests will feel more at ease. The other, and probably equally important, feature of the original Atlantes was to appeal to the women on the boat. The Atlantes is far more aesthetically appealing than tons of nooks and crannies which ultimately means the toilet looks much cleaner. Users in any bathroom can appreciate the smooth minimal lines to make cleaning a quick and easy chore.
Today the Atlantes now incorporates the same Vortex-Vac technology as the Marine Elegance but in a bowl that offers a more substantial footprint as well as the just like home handle option. The advantage of the Vortex-Vac technology is that the waste is efficiently moved from the bowl by a vacuum action created by the pump rather than depending on remote vacuum generation. While a vacuum toilet may use slightly less water, the advantage of Vortex-Vac is that one does not need to depend on the vacuum generator pump that tends to run for about 45 seconds to generate the vacuum. The timed flush cycle brings water in then runs a discharge then water again and discharge for the least amount of water usage and effectiveness of moving waste out of the toilet.
Features:
One piece china bowl
Anti-clog "power shred" discharge system
Elongated style
Stainless handle with smart toilet control
Remote intake pump
Powerful bronze cutting blades designed to "shred" most objects
Vortex-Vac technology
Simple flexible installation
Low power consumption
Three modes of operation - Fill, dry flush or fill and flush
Freedom from clogged toilets and marine size bowls, excellent performance even in commercial applications
Easy to clean and maintain
Diaphragm intake pump can be run dry
Microprocessor control and solid state circuit breaker
No fuses or relays inside the unit
Easily installs above or below waterline on any vessel
Raritan Atlantes Freedom (Household) 24 Volt Toilet For Boats Model ABF24
Specifications:
- Bowl style: Household
- Materials: porcelain bowl, stainless steel handle
- Flush control: momentary flush handle
- Water supply: remote raw water intake pump, freshwater, or Seafresh
- Inlet hose: 3/4" ID
- Discharge hose: 1" or 1 1/2" ID
- 24 Volts DC
- 5.5 Amps
- DIMENSIONS:
- Width of Base: 14"
- Depth of Base: 15"
- Width of Top: 15"
- Height of Top: 17-3/16"
- Depth of Top: 19-1/2"
- Weight: 53 lbs
The Atlantes was one of the first toilets to incorporate the idea of having all components mounted within the bowl. The idea behind the Atlantes was to offer a metal handle on the side of the bowl to make the marine bathroom less intimidating for those not used to being on a boat. We offer the metal handle with many options but most people understand they simply need to push it to have the toilet flush. The head area of any boat can be very daunting for those not familiar with how the toilets work. By offering a handle on the side of the bowl your guests will feel more at ease. The other, and probably equally important, feature of the original Atlantes was to appeal to the women on the boat. The Atlantes is far more aesthetically appealing than tons of nooks and crannies which ultimately means the toilet looks much cleaner. Users in any bathroom can appreciate the smooth minimal lines to make cleaning a quick and easy chore.
Today the Atlantes now incorporates the same Vortex-Vac technology as the Marine Elegance but in a bowl that offers a more substantial footprint as well as the just like home handle option. The advantage of the Vortex-Vac technology is that the waste is efficiently moved from the bowl by a vacuum action created by the pump rather than depending on remote vacuum generation. While a vacuum toilet may use slightly less water, the advantage of Vortex-Vac is that one does not need to depend on the vacuum generator pump that tends to run for about 45 seconds to generate the vacuum. The timed flush cycle brings water in then runs a discharge then water again and discharge for the least amount of water usage and effectiveness of moving waste out of the toilet.
Features:
One piece china bowl
Anti-clog "power shred" discharge system
Elongated style
Stainless handle with smart toilet control
Remote intake pump
Powerful bronze cutting blades designed to "shred" most objects
Vortex-Vac technology
Simple flexible installation
Low power consumption
Three modes of operation - Fill, dry flush or fill and flush
Freedom from clogged toilets and marine size bowls, excellent performance even in commercial applications
Easy to clean and maintain
Diaphragm intake pump can be run dry
Microprocessor control and solid state circuit breaker
No fuses or relays inside the unit
Easily installs above or below waterline on any vessel
Specifications
| Condition | Used |
|---|---|
| Brand | RARITAN |
| Manufacturer Part Number | ABF24 |
| Condition Description | SEE ALL 8 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY WILL BE REQUIRED (WIRING & HOSES)* ITEM WAS PREOWNED, USED, SHOWS TYPICAL SIGNS OF WEAR FROM USE AND WEATHER (MINOR STAINS) BUT IS IN FAIRLY GOOD NAUTICAL PHYSICAL CONDITION AND MOTOR POWERS UP & PUMP HAS SUCTION WHEN DC VOLTAGE IS APPLIED AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER |
