Boaters' Resale Shop of TX 2511 0802.04 MARLEC 12/24 VOLT CHARGE REGULATOR HRDi

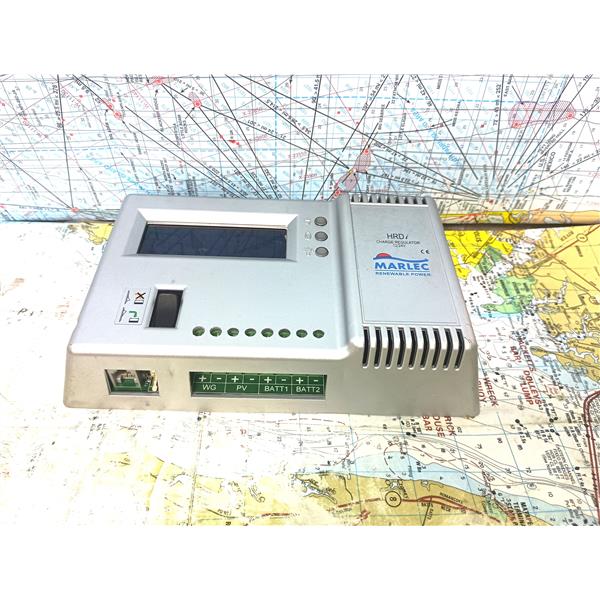

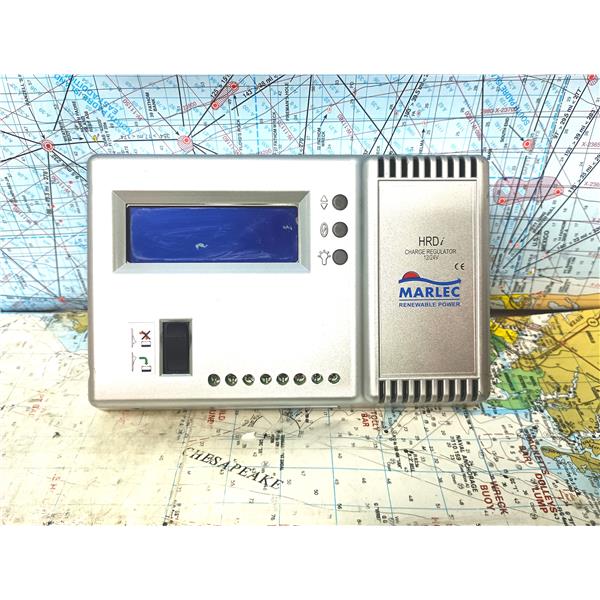

Boaters' Resale Shop of TX 2511 0802.04 MARLEC 12/24 VOLT CHARGE REGULATOR HRDi * SOLAR PANEL, WIND GENERATOR, BATTERIES & CABLES NOT INCLUDED * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY MAY BE REQUIRED WHEN SHIPPED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, POWERS UP, CONTROLS WORK AND REGULATES SOLAR PANEL VOLTAGE DOWN TO BATTERY CHARGE VOLTAGE ON BOTH BATTERY BANKS BUT HAS NOT BEEN TESTED FURTHER

***SOLAR PANEL, WIND GENERATOR, BATTERIES & CABLES NOT INCLUDED***

HRDi Installation Notes:
1. Solar panels must be fitted with diodes
2. Batteries must be connected first for auto voltage detection and setting
3. Care should be taken when connecting the HRDi, as with all electrical devices, reverse polarity connection will cause damage to the HRDi
Upgrading your turbine?
If you currently have an HRDi controller, it should be a Rev 2 model to be compatible with the latest turbine. Check the label on the reverse of the device.




The HRDi features:

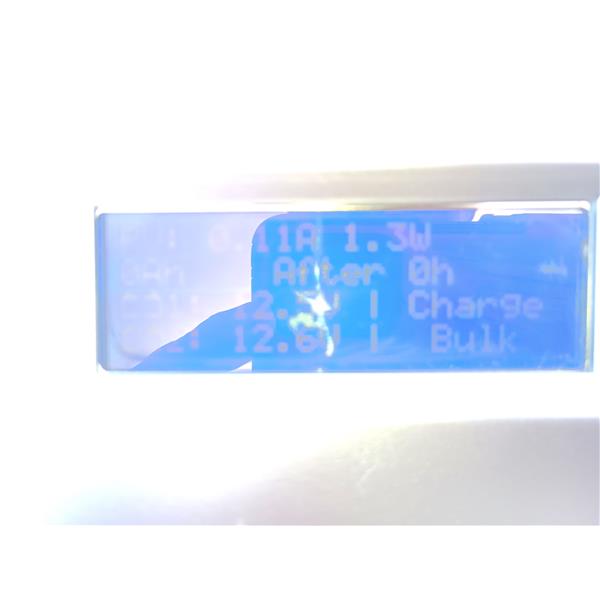

Clear alpha-numeric digital LCD screen with user display options
Connectable to two independent battery banks
Priority charging of the lowest battery
Push button activated and timer controlled back light
Auto configuration to 12 or 24 V supply
Latest micro controller based system shuts wind charger down when batteries are full
Wall mounted modern moulded structure with easy access connection ports
Manual turbine & solar shutdown switch
Bulk & float charging stages for best battery performance
Temperature compensation to optimise charging in all conditions
Using internal sensor or external sensor also supplied
Accepts up to 6 mm² cable (SWG 11 or AWG 9)
Optional Remote Display can be added via dedicated port
Dims: 193 x 127 x 40mm. Weight 0.42kg



The HRDi Charge Controller is the latest wind and solar regulator from Marlec. The HRDi has evolved from and improved on the successful HRDX controller. It provides Charge Control and Power Splitting for off-grid system with two independent batteries, such as the cranking battery and leisure battery on a boat. The contemporary design meets the needs of increasing power demands and features a useful digital display that shows the amount of generated free power, along with the battery state of charge. It is designed for use with the Rutland 504, 914i or FM910-4 Windchargers and up to 160W of solar panels. Suitable for lead acid, AGM and Gel batteries and can be configured for other battery types using the Marlec Interface Cable.
