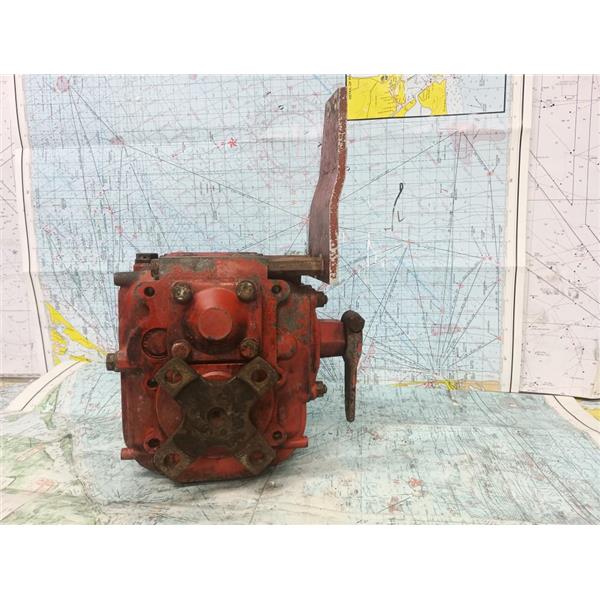

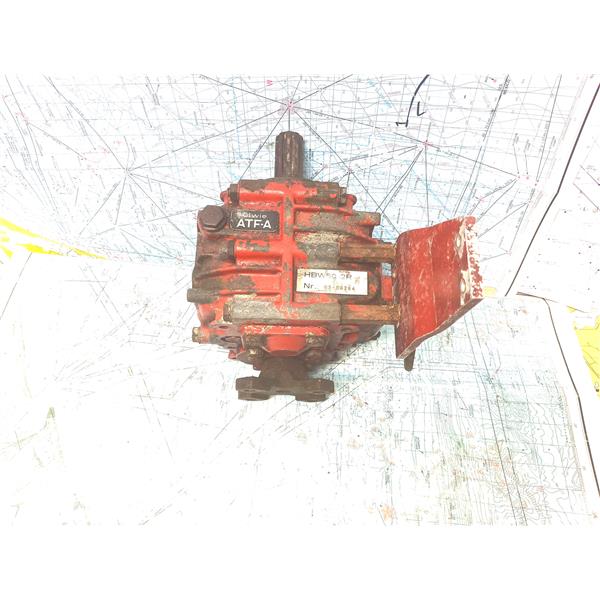

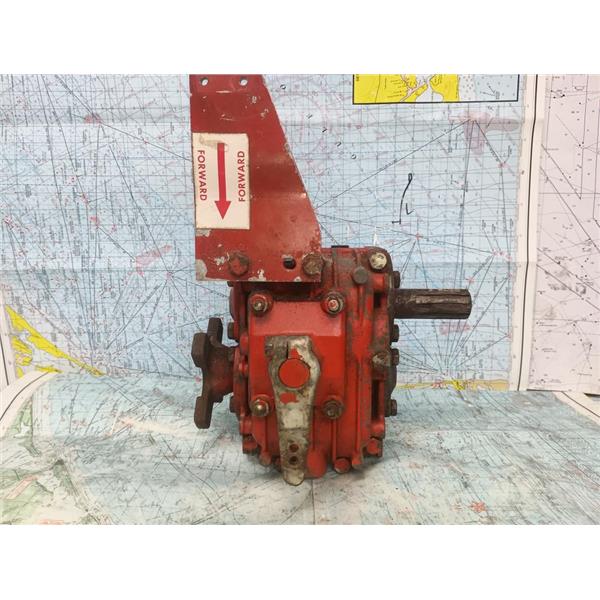

Boaters' Resale Shop of TX 2601 2403.01 HURTH HBW50-2R MARINE TRANSMISSION (UNTESTED) * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY MAY BE REQUIRED WHEN SHIPPED * ITEM WAS PREOWNED, USED, AND ROTATES FREELY BUT HAS NOT BEEN TESTED FURTHER
The Hurth HBW 50 (now ZF 5 M) is a compact, mechanical, cone-clutch marine transmission for pleasure craft, featuring a 5000 RPM maximum input speed and a 15 kW (20 hp) max capacity. It provides a 2.05:1 or 2.72:1 ratio, weighs roughly 10 kg, and uses Automatic Transmission Fluid (ATF).
Key Technical Specifications:
Model: Hurth HBW 50 (Replaced by ZF 5 M)
Max Input Power (Pleasure Duty): 15 kW (20 HP) at 3600 RPM (up to 5000 RPM max)
Max Input Torque: 50 Nm
Gear Ratios (Forward): 2.05:1 or 2.72:1
Gear Ratio (Reverse): 1.86:1
Rotation: Both left and right-hand input rotation available
Weight (Dry): Approximately 10 kg
Lubrication: Automatic Transmission Fluid (ATF)
Type: Mechanical Cone Clutch, Vertical Offset
Features & Maintenance:
Operation: Features direct, full-speed reversing capabilities and acts as a safety clutch.
Construction: High-strength, corrosion-resistant aluminum alloy casing.
Installation: Designed for direct, flange-mounting to the engine.
Maintenance: Limited to regular oil level checks and fluid changes.
Direction: For the HBW 50, right-hand (RH) rotation on the engine typically uses "left-hand" gear position for forward, making it crucial to verify propeller rotation.
The Hurth HBW 50 (now ZF 5 M) is a compact, mechanical, cone-clutch marine transmission for pleasure craft, featuring a 5000 RPM maximum input speed and a 15 kW (20 hp) max capacity. It provides a 2.05:1 or 2.72:1 ratio, weighs roughly 10 kg, and uses Automatic Transmission Fluid (ATF).
Key Technical Specifications:
Model: Hurth HBW 50 (Replaced by ZF 5 M)
Max Input Power (Pleasure Duty): 15 kW (20 HP) at 3600 RPM (up to 5000 RPM max)
Max Input Torque: 50 Nm
Gear Ratios (Forward): 2.05:1 or 2.72:1
Gear Ratio (Reverse): 1.86:1
Rotation: Both left and right-hand input rotation available
Weight (Dry): Approximately 10 kg
Lubrication: Automatic Transmission Fluid (ATF)
Type: Mechanical Cone Clutch, Vertical Offset
Features & Maintenance:
Operation: Features direct, full-speed reversing capabilities and acts as a safety clutch.
Construction: High-strength, corrosion-resistant aluminum alloy casing.
Installation: Designed for direct, flange-mounting to the engine.
Maintenance: Limited to regular oil level checks and fluid changes.
Direction: For the HBW 50, right-hand (RH) rotation on the engine typically uses "left-hand" gear position for forward, making it crucial to verify propeller rotation.
Specifications
| Condition | Used |
|---|---|
| Brand | HURTH |
| Manufacturer Part Number | HBW50-2R |
| Condition Description | (UNTESTED) * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY MAY BE REQUIRED WHEN SHIPPED * ITEM WAS PREOWNED, USED, AND ROTATES FREELY BUT HAS NOT BEEN TESTED FURTHER |
