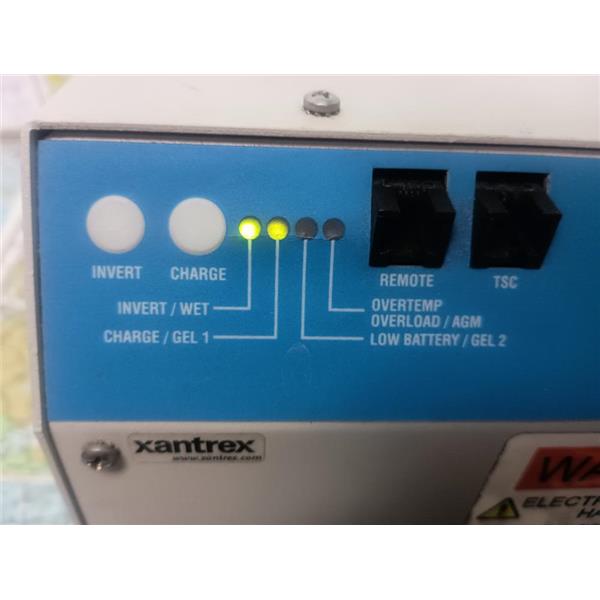

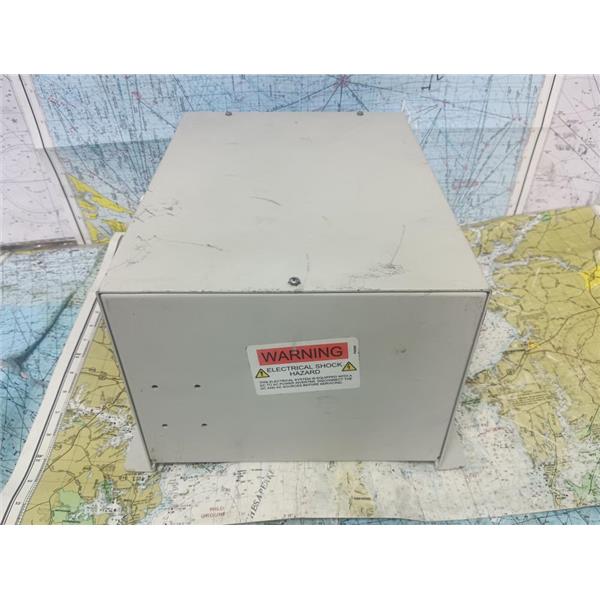

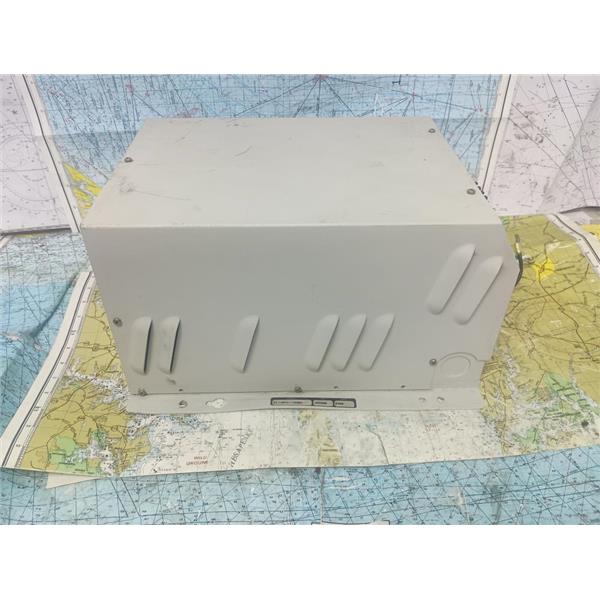

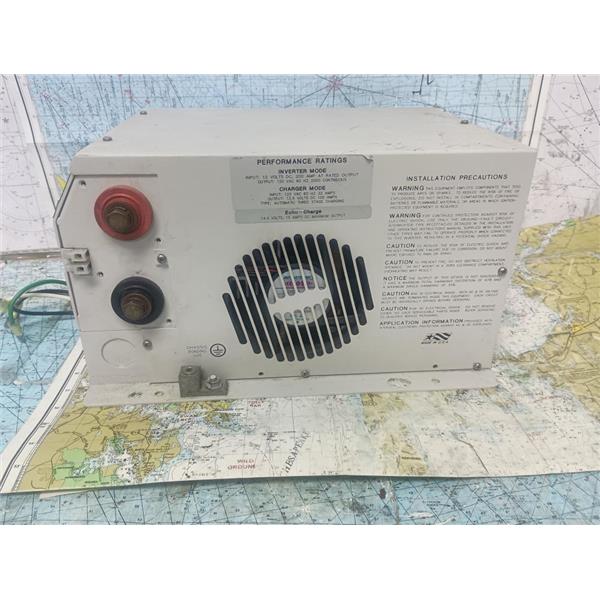

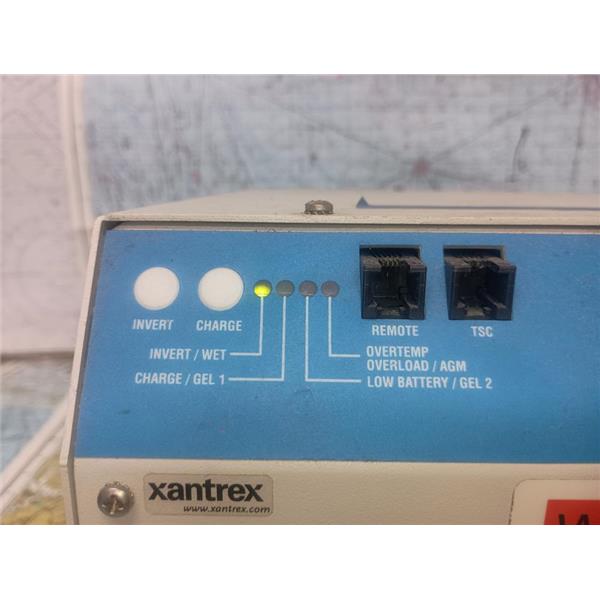

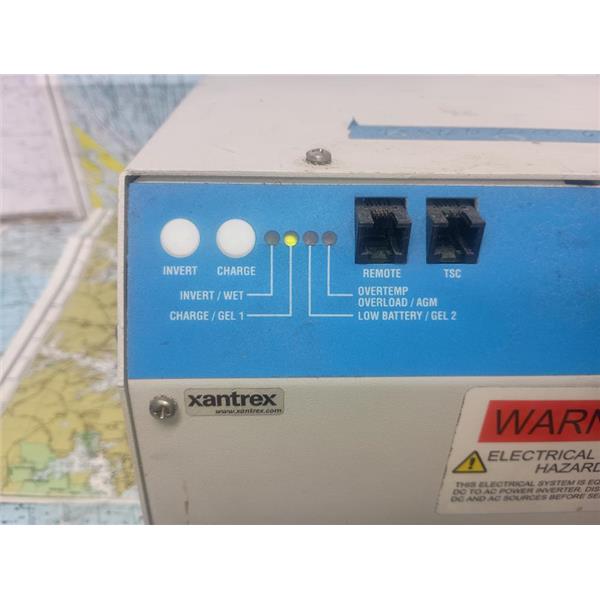

Boaters’ Resale Shop of TX 2602 2804.14 XANTREX 2000 WATT MARINE INVERTER/CHARGER 81-2011-12 ONLY (REMOTE & CABLE NOT INCLUDED) * SEE ALL 8 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, USED, IS MISSING THE COVERS FOR BOTH BATTERY TERMINALS & AC WIRING BUT IS IN GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, INVERTS DC VOLTAGE INTO AC VOLTAGE, TRANSFERS AC VOLTAGE IN AND OUT AND BATTERY CHARGE VOLTAGE IS PRESENT BUT HAS NOT BEEN TESTED FURTHER

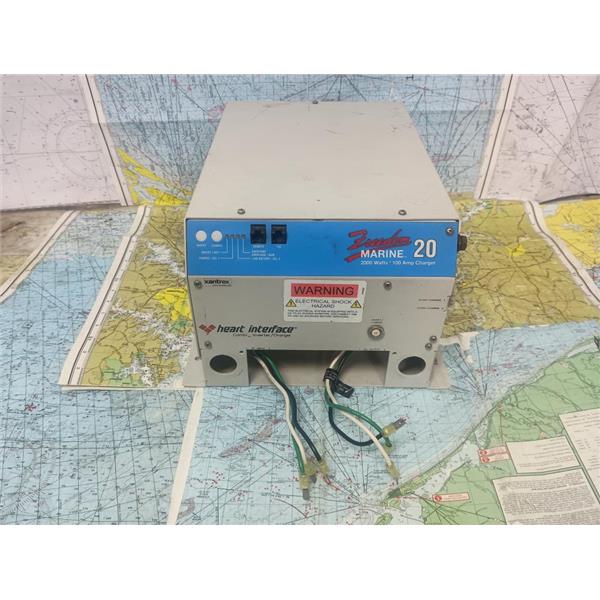

HEART INTERFACE (XANTREX) FREEDOM 20 MARINE 2000 WATT INVERTER/CHARGER 81-2011-12 ONLY
AC Power Inverter with High Surge Capability, 3-Stage Charger
With filtered modified sine wave output, Freedom Marine inverter/chargers run virtually anything on your boat, from office equipment to household appliances and electronics. Temperature controlled multistage charging ensures that your batteries are recharged safely and efficiently. Its integrated transfer switch allows for automatic change-over between shorepower and inverter.
For inverter/charger control and basic system monitoring, use the Freedom Basic Remote(Not Included)For advanced battery monitoring and remote control, Freedom Marine inverter/chargers can be paired with optional Link instrumentation.(Not Included)
Product Features
MSW AC power inverter with high surge capability
Automatic 3-stage battery charger
Temperature compensation with equalization stage provides optimal charging of deep cycle batteries
Built-in transfer switch automatically transfers between inverter power and incoming AC power
Multiple battery bank charging from the built in 15 A echo~charge
Power sharing prevents source AC input circuit breaker from tripping
Customized settings can be programmed with the Freedom Basic Remote or Link panels
Aluminum chassis ideal for marine environment
Protection Features
Over voltage and under voltage protection
Over-temperature protection
Overload protection
Short circuit protection

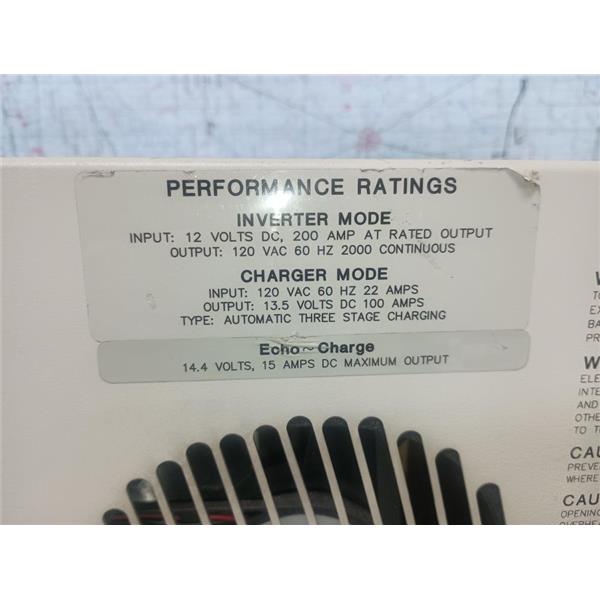

SPECS.
Output frequency regulation 60 Hz*
Inverter voltage regulation 120 V +/-5% true RMS
Output wave form Modified sine wave
Peak efficiency 93%
No load current draw (idle mode) 0.12 A
AC transfer switch 30 A
*Quartz regulated
Electrical Specifications – Inverter
2000 Watt Modified Sine Wave
Charge rate 100 A DC
AC input voltage range 90 130 VAC
Battery voltage (nominal) 12 VDC
Battery voltage range 10.0 15.5 VDC
Low battery cut-out 10.0 VDC
AC input (max. charge mode) 21 A AC
Default bulk charge voltage setting 14.4 VDC
Default float charge voltage setting 13.5 VDC
Equalize charge voltage (wet cell only) 16.3 VDC
Battery charge outputs 2
Charge control 3-stage
Battery type settings Wet / Gel 1 / Gel 2 / AGM
Equalization Yes
Temperature sensitive charging
HEART INTERFACE (XANTREX) FREEDOM 20 MARINE 2000 WATT INVERTER/CHARGER 81-2011-12 ONLY
AC Power Inverter with High Surge Capability, 3-Stage Charger
With filtered modified sine wave output, Freedom Marine inverter/chargers run virtually anything on your boat, from office equipment to household appliances and electronics. Temperature controlled multistage charging ensures that your batteries are recharged safely and efficiently. Its integrated transfer switch allows for automatic change-over between shorepower and inverter.
For inverter/charger control and basic system monitoring, use the Freedom Basic Remote(Not Included)For advanced battery monitoring and remote control, Freedom Marine inverter/chargers can be paired with optional Link instrumentation.(Not Included)
Product Features
MSW AC power inverter with high surge capability
Automatic 3-stage battery charger
Temperature compensation with equalization stage provides optimal charging of deep cycle batteries
Built-in transfer switch automatically transfers between inverter power and incoming AC power
Multiple battery bank charging from the built in 15 A echo~charge
Power sharing prevents source AC input circuit breaker from tripping
Customized settings can be programmed with the Freedom Basic Remote or Link panels
Aluminum chassis ideal for marine environment
Protection Features
Over voltage and under voltage protection
Over-temperature protection
Overload protection
Short circuit protection
SPECS.
Output frequency regulation 60 Hz*
Inverter voltage regulation 120 V +/-5% true RMS
Output wave form Modified sine wave
Peak efficiency 93%
No load current draw (idle mode) 0.12 A
AC transfer switch 30 A
*Quartz regulated
Electrical Specifications – Inverter
2000 Watt Modified Sine Wave
Charge rate 100 A DC
AC input voltage range 90 130 VAC
Battery voltage (nominal) 12 VDC
Battery voltage range 10.0 15.5 VDC
Low battery cut-out 10.0 VDC
AC input (max. charge mode) 21 A AC
Default bulk charge voltage setting 14.4 VDC
Default float charge voltage setting 13.5 VDC
Equalize charge voltage (wet cell only) 16.3 VDC
Battery charge outputs 2
Charge control 3-stage
Battery type settings Wet / Gel 1 / Gel 2 / AGM
Equalization Yes
Temperature sensitive charging
Specifications
| Condition | Used |
|---|---|
| Brand | HEART INTERFACE (XANTREX) |
| Manufacturer Part Number | 81-2011-12 |
| Condition Description | INVERTER/CHARGER 81-2011-12 ONLY (REMOTE & CABLE NOT INCLUDED) * SEE ALL 8 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, USED, IS MISSING THE COVERS FOR BOTH BATTERY TERMINALS & AC WIRING BUT IS IN GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, POWERS UP, INVERTS DC VOLTAGE INTO AC VOLTAGE, TRANSFERS AC VOLTAGE IN AND OUT AND CHARGE VOLTAGE IS PRESENT BUT HAS NOT BEEN TESTED FURTHER |
