Estimate Shipping Cost
Details

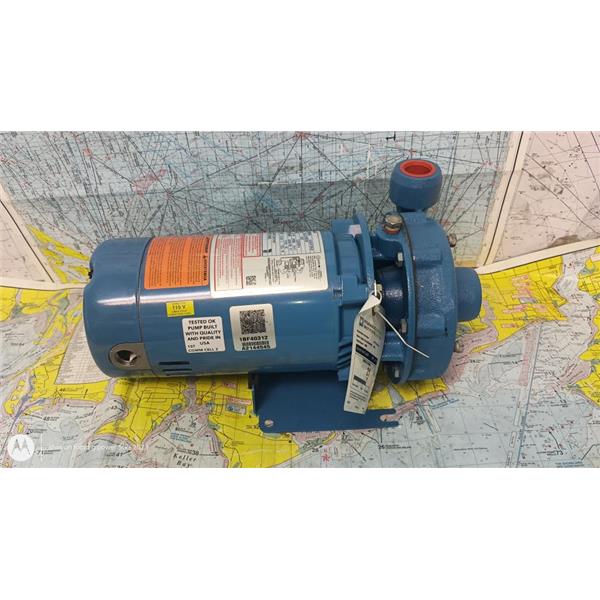

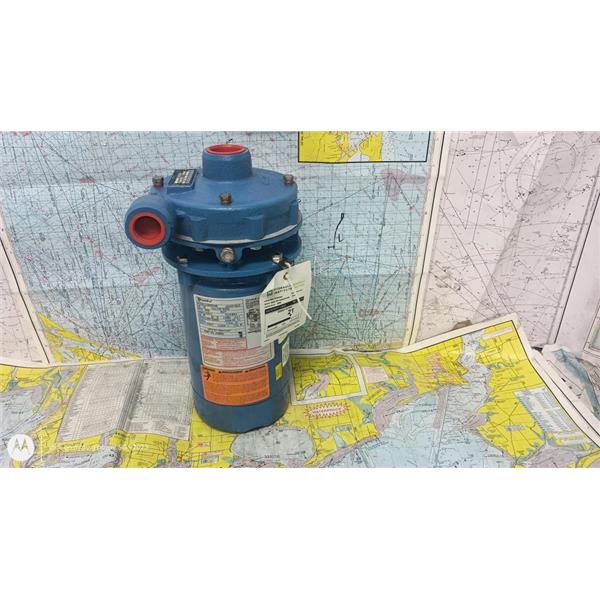

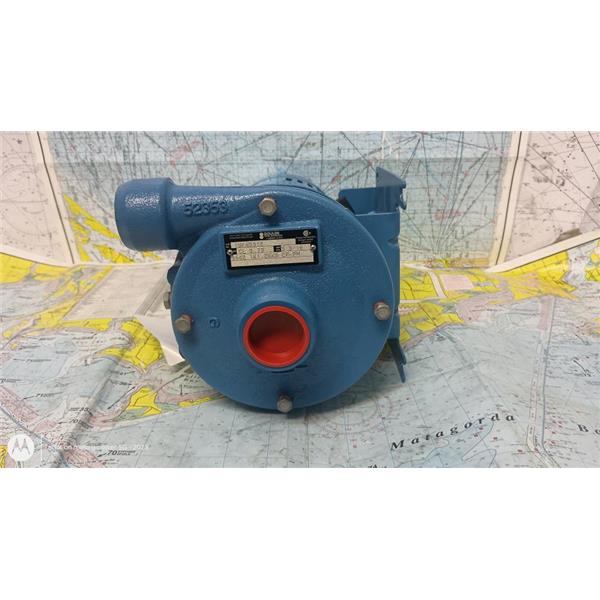

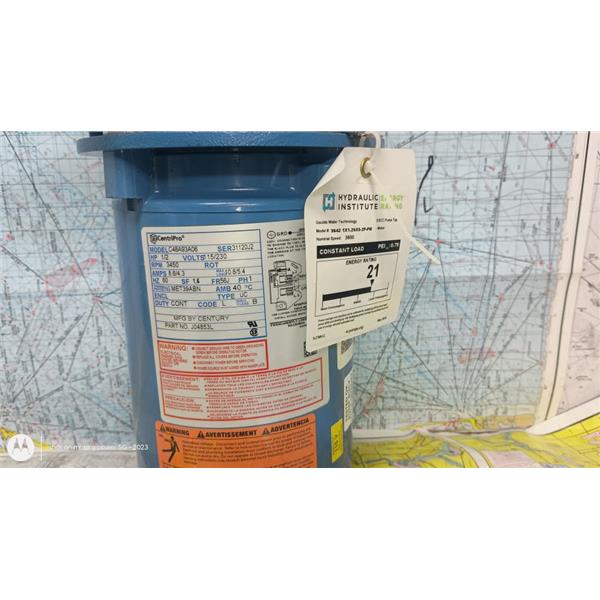

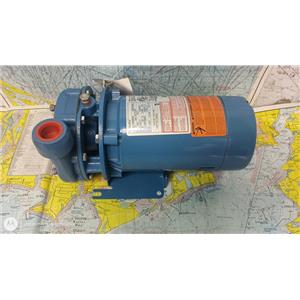

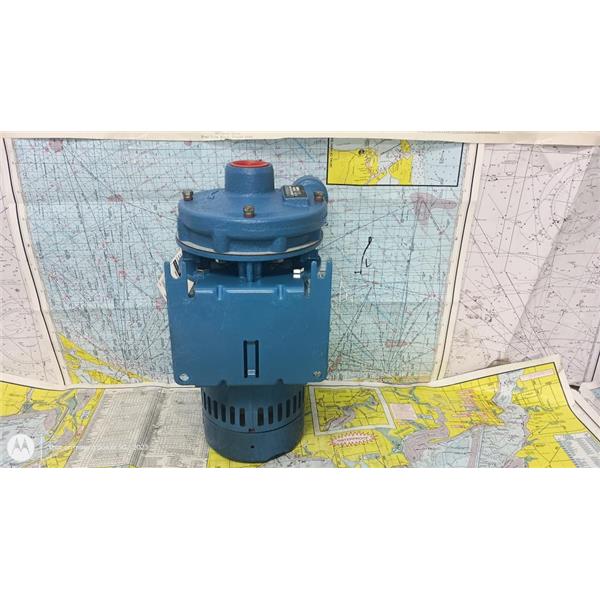

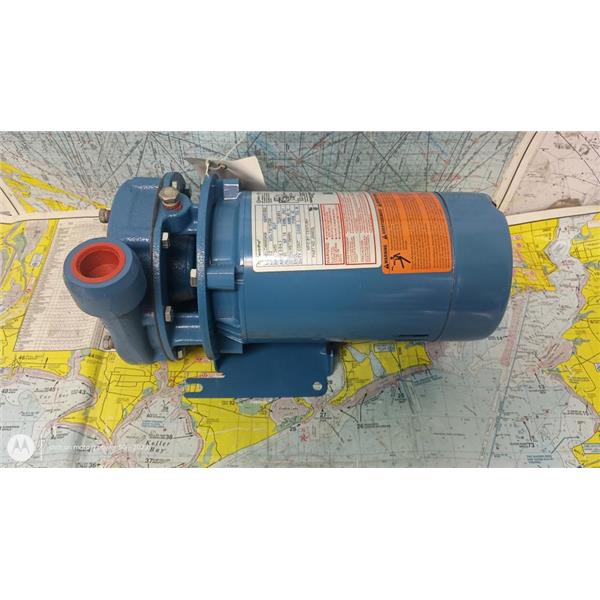

Boaters' Resale Shop of TX 2603 0801.01 GOULDS 1BF40312 PUMP w 115/230V MOTOR * SEE ALL 6 PHOTOS & DETAILS * SOLD AS PICTURED * ITEM WAS PREOWNED, OUT OF ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED
Goulds 3642 Bronze Fitted Close-Coupled Centrifugal Pump
The 3642 is a closed-coupled, single stage, end-suction centrifugal pump specifically designed for use in water circulation, booster service, liquid transfer, spraying systems, jockey pump service and general purpose pumping in residential and commercial applications. This model is engineered with a cast iron construction and bronze impeller.
Features
Compact close coupled design provides space saving and easy installation. Flexible couplings and bedplates not required
Can be mounted in vertical or horizontal position
Enclosed design impeller for high efficiencies. Threaded directly on motor shaft
Back pullout design. Discharge can be rotated in eight positions. Vertical discharge standard. Tapped openings provided for priming, venting and draining
Mechanical seal is standard with carbon/ ceramic faces, BUNA elastomers, 300 series stainless steel components
Motor has a close-coupled design. Ball bearings carry all radial/axial thrust loads
NEMA standard frame motors with C-face mounting and threaded shaft extensions
Motor is designed for continuous operation
All ratings are within working limits of the motor
GOULDS 1BF40312 PUMP SPECS.*
Brand: Goulds
Mfg. Number: 1BF40312
Series 3642
Product Type: Centrifugal pump
Application: Booster/Water circulation
Horsepower: 1/3 HP
Voltage: 115/230 Volts
Phase 1
Frequency 60 Hz
Speed 3500 RPM
Suction Connection 1-1/4" NPT
Discharge Connection 1" NPT
Design Close coupled
Rotation Clockwise viewed from motor end
Pump Size 1 x 1-1/4 - 5
Enclosure ODP
Overload Protection Yes
Impeller Diameter 3-3/16"
Impeller Material Bronze
Pump Housing Cast iron
Seal Type Mechanical
Seal Material Carbon/ceramic faces, BUNA elastomers
Shaft Material Stainless steel
Max. Working Pressure 125 PSI
Max. Temperature 212°F
Goulds 3642 Bronze Fitted Close-Coupled Centrifugal Pump
The 3642 is a closed-coupled, single stage, end-suction centrifugal pump specifically designed for use in water circulation, booster service, liquid transfer, spraying systems, jockey pump service and general purpose pumping in residential and commercial applications. This model is engineered with a cast iron construction and bronze impeller.
Features
Compact close coupled design provides space saving and easy installation. Flexible couplings and bedplates not required
Can be mounted in vertical or horizontal position
Enclosed design impeller for high efficiencies. Threaded directly on motor shaft
Back pullout design. Discharge can be rotated in eight positions. Vertical discharge standard. Tapped openings provided for priming, venting and draining
Mechanical seal is standard with carbon/ ceramic faces, BUNA elastomers, 300 series stainless steel components
Motor has a close-coupled design. Ball bearings carry all radial/axial thrust loads
NEMA standard frame motors with C-face mounting and threaded shaft extensions
Motor is designed for continuous operation
All ratings are within working limits of the motor
GOULDS 1BF40312 PUMP SPECS.*
Brand: Goulds
Mfg. Number: 1BF40312
Series 3642
Product Type: Centrifugal pump
Application: Booster/Water circulation
Horsepower: 1/3 HP
Voltage: 115/230 Volts
Phase 1
Frequency 60 Hz
Speed 3500 RPM
Suction Connection 1-1/4" NPT
Discharge Connection 1" NPT
Design Close coupled
Rotation Clockwise viewed from motor end
Pump Size 1 x 1-1/4 - 5
Enclosure ODP
Overload Protection Yes
Impeller Diameter 3-3/16"
Impeller Material Bronze
Pump Housing Cast iron
Seal Type Mechanical
Seal Material Carbon/ceramic faces, BUNA elastomers
Shaft Material Stainless steel
Max. Working Pressure 125 PSI
Max. Temperature 212°F
Specifications
| Condition | New other (see details) |
|---|---|
| Brand | GOULDS |
| Manufacturer Part Number | 1BF40312 |
| Condition Description | SEE ALL 6 PHOTOS & DETAILS * SOLD AS PICTURED * ITEM WAS PREOWNED, OUT OF ORIGINAL BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED |
