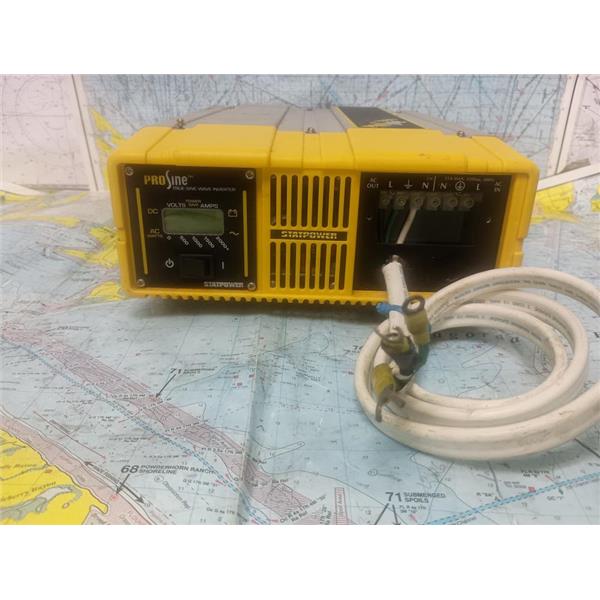

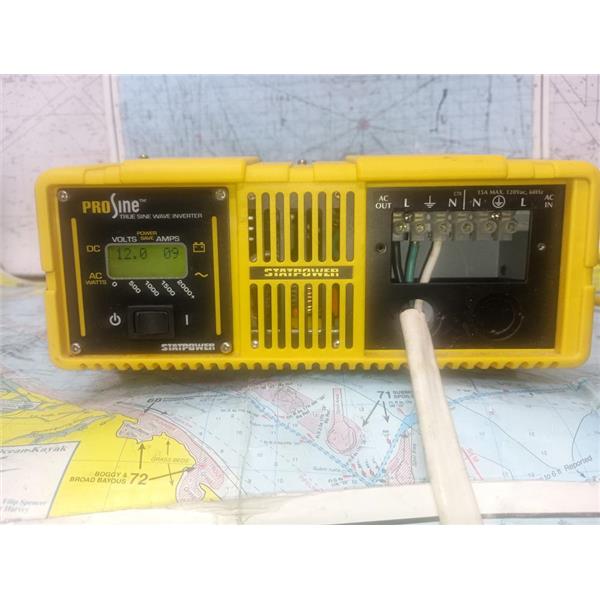

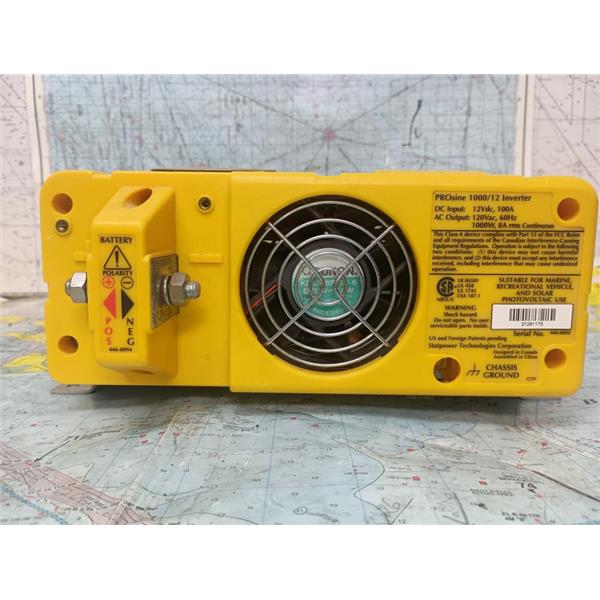

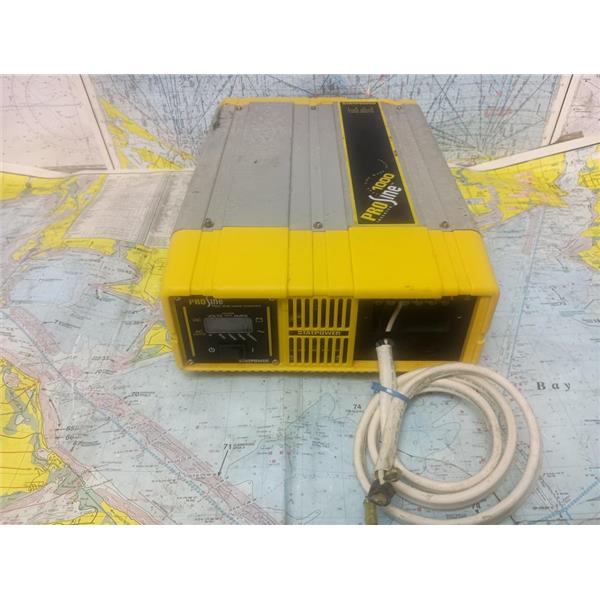

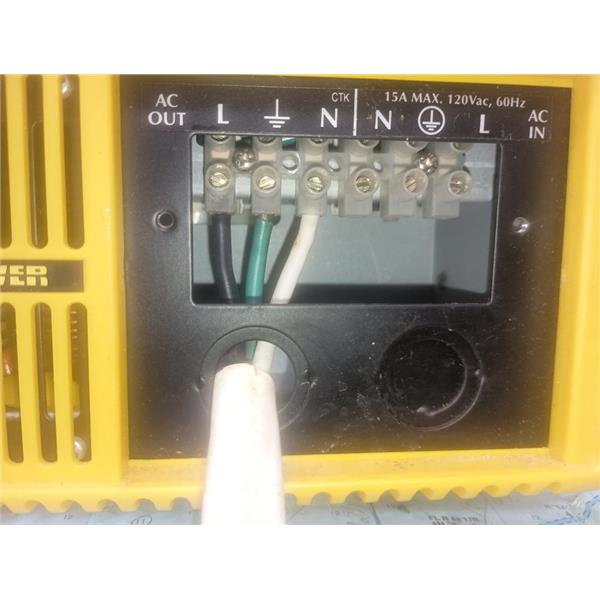

Boaters' Resale Shop of TX 2603 0808.01 PROSINE 1000 PURE SINE WAVE INVERTER ONLY by STATPOWER * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY(HARD-WIRING) WILL BE REQUIRED WHEN RECEIVED * ITEM WAS PREOWNED, USED, TOP BACK HAS A CRACK BUT DOES NOT AFFECT OPERATION AND IS IN FAIR NAUTICAL/PHYSICAL CONDITION AND POWERS UP AND INVERTS 12 VOLTS DC INTO 120 VOLTS AC, SO THE UNIT APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER
PROsine 1000/12
What Can Be Powered by PROsine 1000: Blender, Fridge,TV,Smartphone & Laptop
Features
Built-in Transfer Relay
GFCI outlet and hardware options
Surges to 2x output for 5s or more
Surge rating 1500 W
Output current (peak) 25 A
Output voltage (at no load)120 Vac +/-3%
Output voltage (over full load and battery voltage range)120 Vac RMS -10%/+4%
Output frequency 60 +/-0.05 (crystal controlled)
Output waveform True sine wave (THD 1% typical)
Peak efficiency (12 V/24 V) 89% / 90%
No load power draw (search mode) <1.5 W
No load power draw (idle mode) ~ 20 W
Input voltage range 12 V 10 − 16 Vdc / 20 − 32 Vdc
Transfer relay rating (hardwire/transfer relay models) 15 A
Transfer time AC to inverter and inverter to AC 1 cycle (typical, < 20ms)
PROsine 1000/12
What Can Be Powered by PROsine 1000: Blender, Fridge,TV,Smartphone & Laptop
Features
Built-in Transfer Relay
GFCI outlet and hardware options
Surges to 2x output for 5s or more
Technical Specifications
Dimensions: 4.5" H x 11.0" W x 15.4” L
Weight: 15 LBS
Output power 1000 WDimensions: 4.5" H x 11.0" W x 15.4” L
Weight: 15 LBS
Surge rating 1500 W
Output current (peak) 25 A
Output voltage (at no load)120 Vac +/-3%
Output voltage (over full load and battery voltage range)120 Vac RMS -10%/+4%
Output frequency 60 +/-0.05 (crystal controlled)
Output waveform True sine wave (THD 1% typical)
Peak efficiency (12 V/24 V) 89% / 90%
No load power draw (search mode) <1.5 W
No load power draw (idle mode) ~ 20 W
Input voltage range 12 V 10 − 16 Vdc / 20 − 32 Vdc
Transfer relay rating (hardwire/transfer relay models) 15 A
Transfer time AC to inverter and inverter to AC 1 cycle (typical, < 20ms)
Specifications
| Condition | Used |
|---|---|
| Brand | STATPOWER |
| Manufacturer Part Number | PROSINE-1000/12 |
| Condition Description | SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY(HARD-WIRING) WILL BE REQUIRED WHEN RECEIVED * ITEM WAS PREOWNED, USED, TOP BACK HAS A CRACK BUT DOES NOT AFFECT OPERATION AND IS IN FAIR NAUTICAL/PHYSICAL CONDITION AND POWERS UP AND INVERTS 12 VOLTS DC INTO 120 VOLTS AC, SO THE UNIT APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER * What Can Be Powered by PROsine 1000: Blender, Fridge,TV,Smartphone & Laptop |
