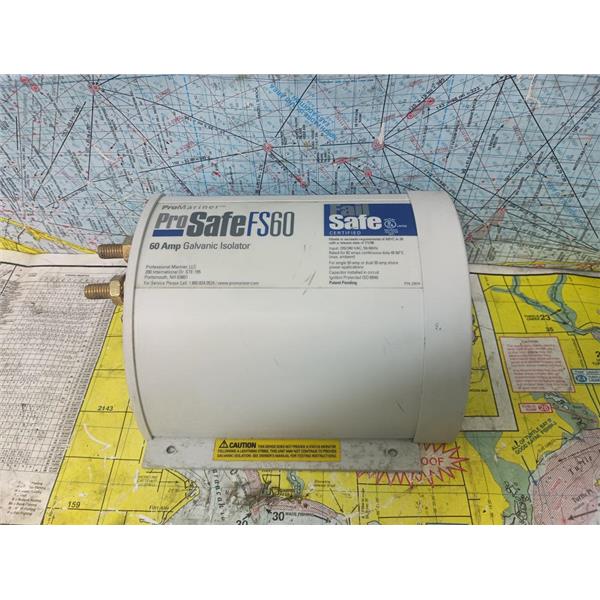

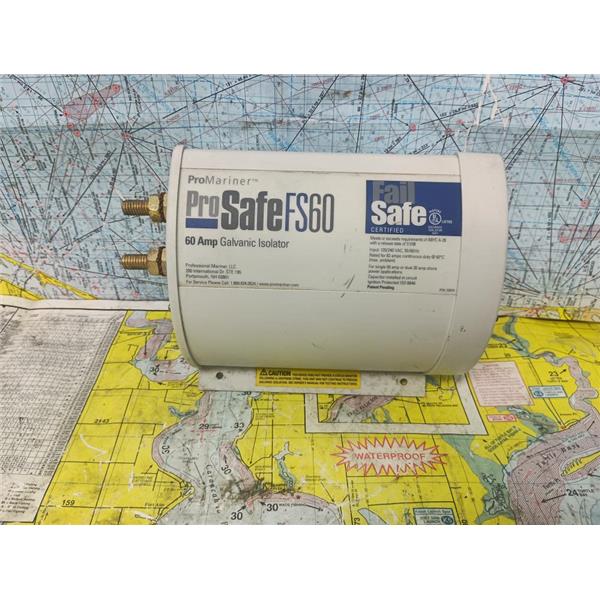

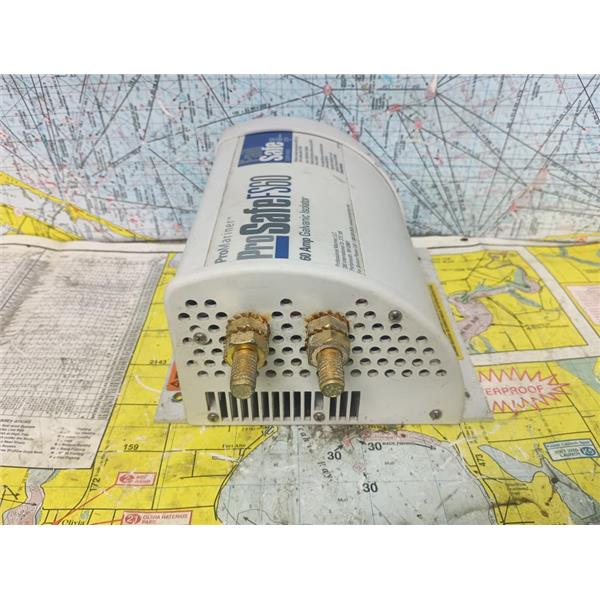

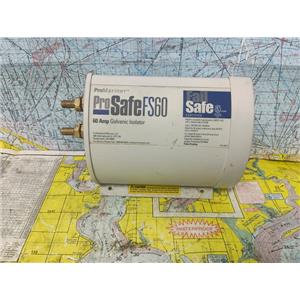

Boaters' Resale Shop of TX 2603 2803.02 PROSAFE FS60 AMP GALVANIC ISOLATOR by PROMARINER * SEE ALL 3 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER
ProSafe FS60 60 Amp Galvanic Isolator
DESCRIPTION
FailSafe Technology with peace of mind dependability.
INPUT VOLTAGE: 120/240 VOLTS AC RATED FOR 82 AMPS CONTINUOUS DUTY
Winner of the prestigious 2007 IBEX Award for Innovation, ProSafe FS (Fail Safe) Galvanic Isolators maximize anode life and protect metal parts on boats against galvanic corrosion. Installation is simplified by the fact that they do not require a dedicated monitor to verify operational status as required by non-fail-safe-certified designs. 60 Amp models are built on robust flat-pack semiconductor platforms to ensure that your boat's AC ground will continue to work in the unlikely event the isolator fails. Terminals are gold-plated for long life.
The ProSafe FS Series of FailSafe 60 Amp Galvanic Isolators will interrupt galvanic current flow with other boats at a marina when installed on a boat which is connected to AC Shore Power. This technology maintains AC safety ground and solves the most common forms of corrosion and premature zinc loss within a boats bonding system.
Key Features
Both models meet ISO 8846 specifications for ignition protection and may be mounted within an engine compartment.
They comply with ABYC A-28 July 2008 specifications and are UL-listed for fail-safe operation
Use the ProSafe FS60 for (1) 50 Amp or (2) 30 Amp shore power cord applications
Simply install in your onboard green safety ground wire (between your AC inlet and your AC panel) to separate your DC bonding system from your shore AC green wire
The FS60 will cool itself in the event it must conduct current, ensuring cooler operation in this mode
ProSafe FS60 60 Amp Galvanic Isolator
DESCRIPTION
FailSafe Technology with peace of mind dependability.
INPUT VOLTAGE: 120/240 VOLTS AC RATED FOR 82 AMPS CONTINUOUS DUTY
Winner of the prestigious 2007 IBEX Award for Innovation, ProSafe FS (Fail Safe) Galvanic Isolators maximize anode life and protect metal parts on boats against galvanic corrosion. Installation is simplified by the fact that they do not require a dedicated monitor to verify operational status as required by non-fail-safe-certified designs. 60 Amp models are built on robust flat-pack semiconductor platforms to ensure that your boat's AC ground will continue to work in the unlikely event the isolator fails. Terminals are gold-plated for long life.
The ProSafe FS Series of FailSafe 60 Amp Galvanic Isolators will interrupt galvanic current flow with other boats at a marina when installed on a boat which is connected to AC Shore Power. This technology maintains AC safety ground and solves the most common forms of corrosion and premature zinc loss within a boats bonding system.
Key Features
Both models meet ISO 8846 specifications for ignition protection and may be mounted within an engine compartment.
They comply with ABYC A-28 July 2008 specifications and are UL-listed for fail-safe operation
Use the ProSafe FS60 for (1) 50 Amp or (2) 30 Amp shore power cord applications
Simply install in your onboard green safety ground wire (between your AC inlet and your AC panel) to separate your DC bonding system from your shore AC green wire
The FS60 will cool itself in the event it must conduct current, ensuring cooler operation in this mode
Specifications
| Condition | Used |
|---|---|
| Brand | PROMARINER |
| Manufacturer Part Number | FS60 |
| Condition Description | SEE ALL 3 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER |
