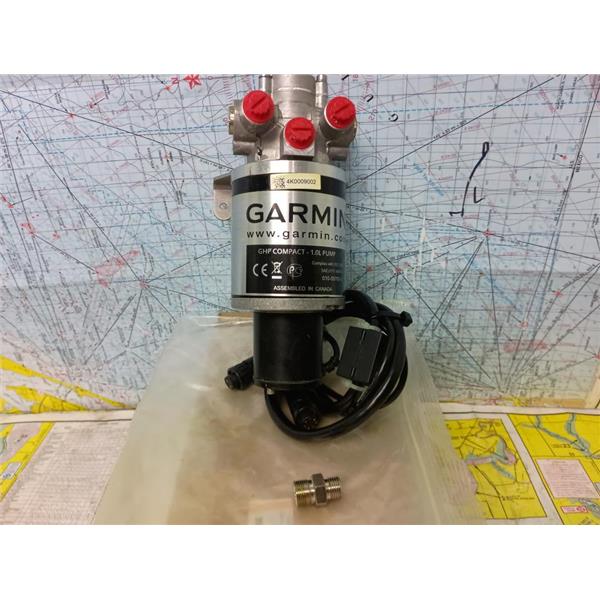

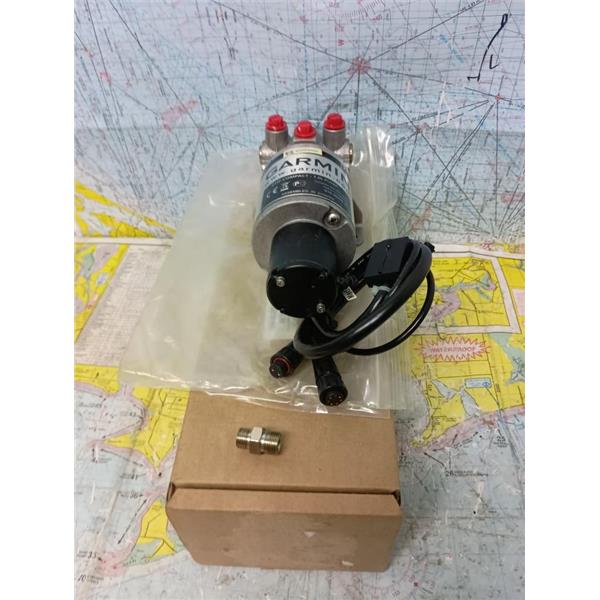

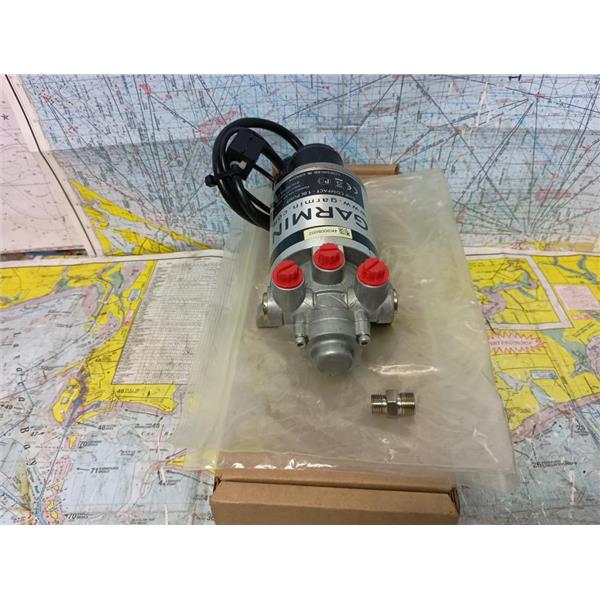

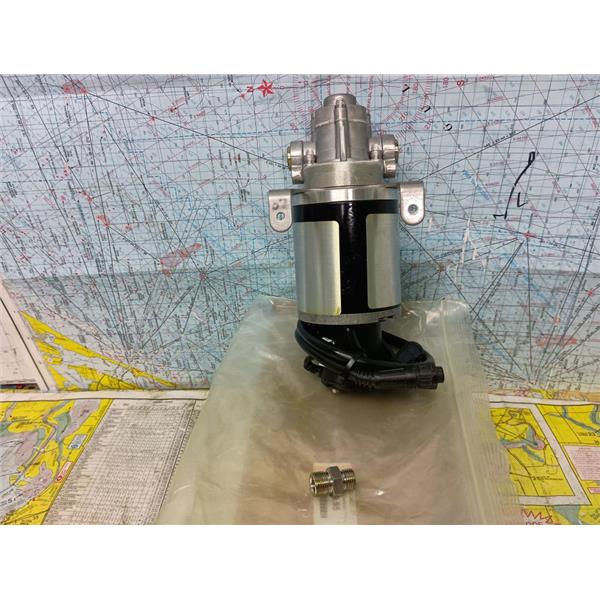

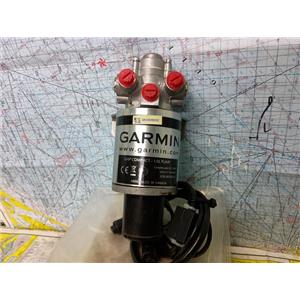

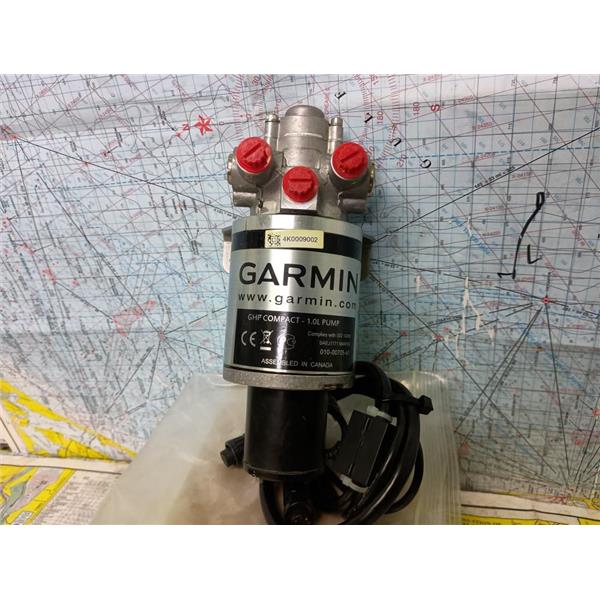

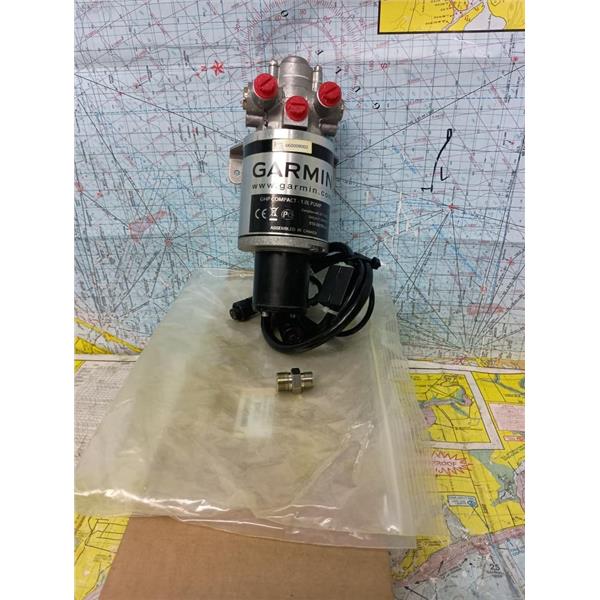

Boaters' Resale Shop of TX 2605 0901.21 GARMIN GHP COMPACT PUMP 010-00705-61

Boaters' Resale Shop of TX 2605 0901.21 GARMIN GHP COMPACT PUMP 010-00705-61 * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY WILL BE REQUIRED WHEN SHIPPING * ITEM WAS PREOWNED, LIGHTLY USED, IS IN FAIRLY GOOD NAUTICAL &  PHYSICAL CONDITION AND POWERS UP BUT HAS NOT BEEN TESTED FURTHER


Garmin 1.0 Liter Pump for Reactor 40 Hydraulic Autopilots
Category Details
Product Name: Garmin 1.0 Liter Pump
Part Number: 010-00705-61
Type Hydraulic Autopilot Pump
Compatible Systems: Garmin GHP™ Series Autopilot
Displacement: 1.0 Liter (61 cu in)
Voltage 12 V DC
Current Draw Approx. 5–10 A
Operating Pressure Up to 1000 psi
Flow Rate Suitable for medium steering systems
Material Marine-grade aluminum and stainless steel
Mounting Type Surface or panel mount
Operating Temperature –15 °C to +70 °C (5 °F to 158 °F)
Dimensions 7.5 in × 5.0 in × 4.0 in (approx.)
Weight 3.5 lb (1.6 kg approx.)

General Features
Feature Description
System Compatibility Designed for Garmin GHP autopilot systems
Fluid Capacity 1.0 Liter hydraulic volume
Power Supply 12 V DC
Material Corrosion-resistant marine-grade metals
Noise Level Low-vibration, quiet operation
Installation Type Compact and easy to mount
Operating Conditions Works efficiently in diverse marine environments
Energy Efficiency Optimized for reduced electrical load
Maintenance: Minimal maintenance required
